| Bulk 2-Leg Bridle Wire Rope Sling - Fiber Core

>> What is fiber core 2-Leg bridle wire rope sling?

Fiber core 2-Leg bridle wire rope sling consists of two single-leg wire rope slings with a thimbled eye on each end. This type of sling is very strong and can be used to lift heavy loads. It is important to use caution when using this type of sling, as it can be dangerous if not used properly.

And there are 3 types of oval master single leg wire rope slings in the JF Brand: 2-Leg Bridle Wire Rope Sling, 2-Leg Bridle Wire Rope Sling with Hook, and 2-Leg Bridle Wire Rope Sling with Shackle.

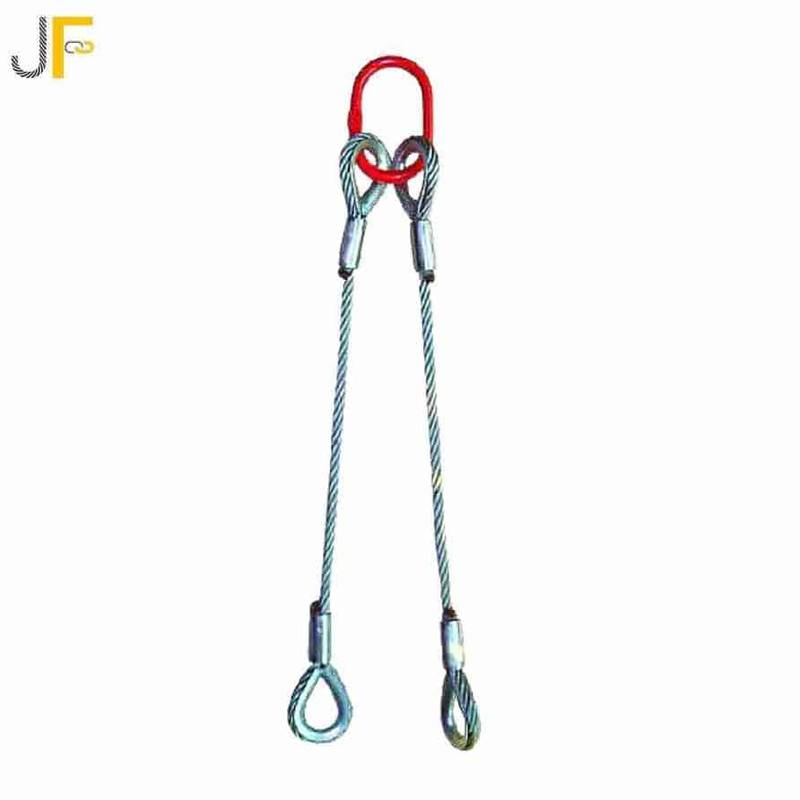

JF Brand fiber core 2-Leg Bridle Wire Rope Sling
Fiber Core 2-Leg Bridle Wire Rope Sling

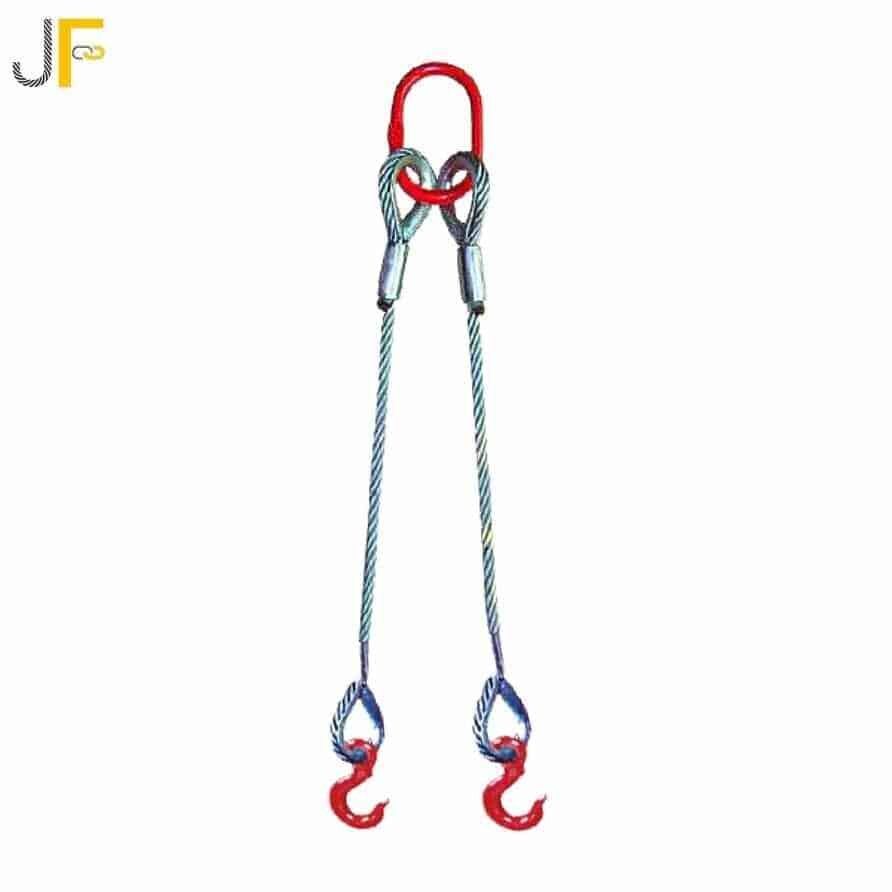

JF Brand 2-leg bridle wire rope sling with hook
2-leg bridle wire rope sling with hook

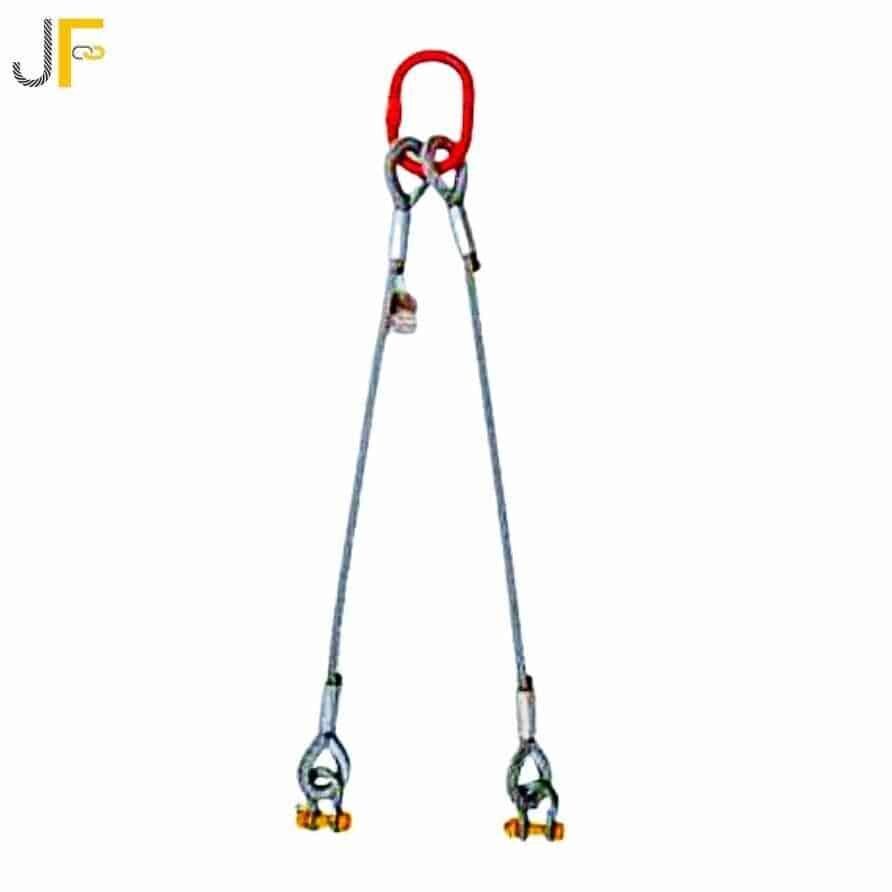

JF Brand 2-leg bridle wire rope sling with shackle
2-leg bridle wire rope sling with shackle

>> How to bulk fiber core 2-Leg bridle wire rope slings in our wire rope sling manufacturer?

You can bulk 2 main types of JF Brand fiber core 2-Leg bridle wire rope sling in our wire rope sling manufacturer: CSDFH, CSDFS.

* EXAMPLE: For one 2-Leg bridle wire rope sling with a fiber core, with the hook, 6mm wire rope diameter, and 5m sling functional length. YOu CAN ORDER: CSDFH06-5.

JF Brand 2-Leg bridle wire rope sling size chart

Order Tips (EN13414-1: 2003, EN13411-3: 2004):

CS : Steel wire rope sling

D : Double leg

F : Fiber core material

H/S : Hook or Shackle

L : Sling functional length

  • Fabrication Time: 3-5 days
  • Support Customization
  • China Factory Direct

>> JF Brand fiber core 2-Leg bridle wire rope sling capacity chart:

Model

Φ

(mm)

W.L.L(ton)

Ring

Feature

d1xAxB

(mm)

Terminal Accessory

α ≤ 45°

45＜α≤60°

Hooks

Shackle

W.L.L

(ton)

Opening Size C

(mm)

W.L.L

(ton)

Main Feat

d2xExF

(mm)

CSDFH06

CSDFS06

6

0.46

0.33

16×140×80

1.0

23.6

0.5

8×12×28

CSDFH07

CSDFS07

7

0.62

0.44

16×140×80

1.0

23.6

0.5

8×12×28

CSDFH08

CSDFS08

8

0.81

0.58

16×140×80

1.0

23.6

1.0

11×17×36

CSDFH09

CSDFS09

9

1.00

0.73

16×140×80

1.0

23.6

1.0

11×17×36

CSDFH10

CSDFS10

10

1.27

0.90

16×140×80

1.0

23.6

1.0

11×17×36

CSDFH11

CSDFS11

11

1.53

1.09

16×140×80

2.0

26.9

1.5

13×19×42

CSDFH12

CSDFS12

12

1.82

1.30

16×140×80

2.0

26.9

1.5

13×19×42

CSDFH13

CSDFS13

13

2.14

1.53

16×140×80

2.0

26.9

2.0

16×21×47

CSDFH14

CSDFS14

14

2.48

1.77

16×140×80

2.0

26.9

2.0

16×21×47

CSDFH15

CSDFS15

15

2.8

2.0

16×140×80

2.0

26.9

3.25

19×27×60

CSDFH16

CSDFS16

16

3.2

2.3

16×140×80

3.0

30.2

3.25

19×27×60

CSDFH18

CSDFS18

18

4.1

2.9

20×160×95

3.0

30.2

3.25

19×27×60

CSDFH20

CSDFS20

20

5.1

3.6

20×160×95

4.5

38.1

4.75

22×32×71

CSDFH22

CSDFS22

22

6.1

4.4

26×190×110

4.5

38.1

4.75

22×32×71

CSDFH24

CSDFS24

24

7.3

5.2

26×190×110

7.0

45

6.5

25×37×84

CSDFH26

CSDFS26

26

8.6

6.1

26×190×110

7.0

45

6.5

25×37×84

CSDFH28

CSDFS28

28

9.9

7.1

32×230×130

11.0

61

8.5

28×43×95

CSDFH30

CSDFS30

30

11.4

8.1

32×230×130

11.0

61

8.5

28×43×95

CSDFH32

CSDFS32

32

13.0

9.3

32×230×130

11.0

61

9.5

32×46×108

CSDFH34

CSDFS34

34

14.6

10.4

38×275×150

11.0

61

12.0

35×52×119

CSDFH36

CSDFS36

36

16.4

11.7

38×275×150

15.0

66.6

12.0

35×52×119

CSDFH38

CSDFS38

38

18.3

13.1

38×275×150

15.0

66.6

13.5

38×57×131

CSDFH40

CSDFS40

40

20.2

14.5

38×275×150

15.0

66.6

17.0

42×61×148

CSDFH42

CSDFS42

42

22.3

15.9

38×275×150

22.0

86.6

17.0

42×61×148

CSDFH44

CSDFS44

44

24.5

17.5

45×340×180

22.0

86.6

25.0

51×73×177

CSDFS46

CSDFS42

46

26.8

19.1

45×340×180

22.0

86.6

25.0

51×73×177

CSDFH48

CSDFS48

48

29.2

20.8

45×340×180

22.0

86.6

25.0

51×73×177

CSDFH50

CSDFS50

50

31.6

22.6

45×340×180

30.0

101.6

25.0

51×73×177

CSDFH52

CSDFS52

52

34.2

24.4

50×350×190

30.0

101.6

25.0

51×73×177

CSDFH54

CSDFS54

54

36.9

26.4

50×350×190

30.0

101.6

35.0

57×83×197

CSDFH56

CSDFS56

56

39.7

28.3

50×350×190

30.0

101.6

35.0

57×83×197

CSDFH58

CSDFS58

58

42.6

30.4

56×400×200

37.0

108

35.0

57×83×197

CSDFH60

CSDFS60

60

45.6

32.5

56×400×200

37.0

108

35.0

57×83×197

  • Conform Standard: EN13414-1: 2003, EN13411-3: 2004, GB/T16762-2009, GB/T14737-2009, GB/T30589-2014.
  • Wire rope pattern series 6×37+FC is used in the sling sets listed, its nominal tensile strength is 1670MPa.
  • Option for wire rope coating includes galvanization (with/without lubricant) and smooth surface (with lubricant).
  • Wire ropes used in each sling can be customized to apply for higher or lower workloads.
  • Safety coefficient of different components is 5:1 for wire ropes, 5:1 for hooks, and 6:1 for shackles.
Get A Quote

>> Why choose JF Brand fiber core 2-Leg bridle wire rope slings:

  1. One of the advantages of using a 2-leg bridle wire rope sling with a fiber core is that it is very strong. It can safely lift heavy loads without breaking. This makes it a good choice for lifting heavy objects.
  2. Another advantage of using a 2-leg bridle wire rope sling with a fiber core is that it is flexible. This allows it to conform to the shape of the object being lifted, which can help to prevent damage to the object.
  3. However, it is important to use caution when using a 2-leg bridle wire rope sling with a fiber core. If not used properly, this type of sling can be dangerous. It is important to make sure that the load is distributed evenly among the two ropes and that the sling is properly secured to the object being lifted.
  4. Overall, a 2-leg bridle wire rope sling with a fiber core is a strong and flexible lifting option that can be used to lift heavy loads safely. When used correctly, it can be a valuable tool for lifting objects.
