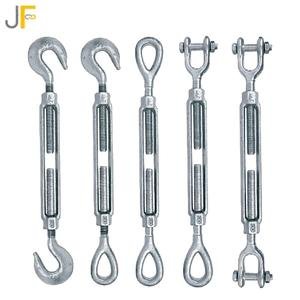

china turnbuckle manufacturer
Turnbuckles
Cable Stockings
Cable Stockings
Offshore Container Wire Rope Sling
Offshore Container Wire Rope Sling

Can't Find What Your Looking For?

We Know Wire Rope Slings

There are many wire rope sling manufacturers out there, so why choose ours – SichWirerope? Here are some key reasons:

  • Quality products
  • Experienced team
  • Custom solutions
  • Excellent customer service

If you’re looking for high-quality wire rope slings, manufactured by a experienced team with a commitment to customer service, then look no further than our company. Contact us today to discuss your wire rope sling need!

Chapter 1

What Are Wire Ropes & Wire Rope Slings?

- Wire Ropes

What is wire rope? A structure formed by a set number of wires, one or more layers of strands, twisted into a helix. In some cases, a single strand can be a rope.

It is strong and resistant to wear and abrasion, making it an ideal choice for many industrial and commercial applications, such as used in rigging, lifting, towing, and other mechanical applications.

At Sich Wirerope Manufacturer, we can provide you with various types of wire ropes, mainly wire ropes for example:

  • 6*19, 6*37, 6*24
  • 6*19S/6*19W, 6*25Fi/6*29Fi, 6*26WS/6*31WS, 6*36WS, 6*37S
  • 6V19, 6V30, 6V34, 6V37, 6V37S
  • 6*K25Fi, 6*K19S/6*K36WS, 8*K26WS/8*K31WS, 18*K7/18*K19S, 35(W)*K7/40(W)*K7
  • PVC wire ropes

If you have an interest in other structures of wire ropes, you can contact us, and our expert will reply to you.

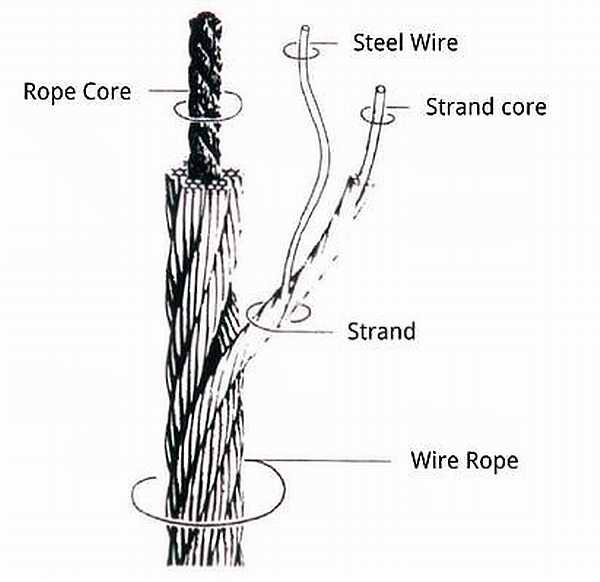

structure of wire rope

- Wire Rope Slings

Wire rope sling is made of steel wire rope, which is processed and mainly used for hoisting, towing, lashing, and carrying. It is characterized by high strength, light self-weight, stable work, and not easily broken abruptly as a whole, etc. And wire rope slings are widely used in offshore oil & gas, salvage operations, mariculture, shipyards, ports & container terminals, petroleum chemical projects, power plant projects, infrastructure construction, and many other industries.

At present, the most commonly used steel wire rope varieties are phosphate-coated steel wire rope, galvanized steel wire rope, stainless steel wire rope, and glossy steel wire rope, of which the galvanized steel wire rope is resistant to corrosion and the phosphate-coated steel wire rope is resistant to abrasion and corrosion.

To meet the wide range of applications in the market, there are various types and sizes of wire rope slings in our Sich Wirerope manufacturer in China to meet your individual application needs, such as spliced wire rope slings, grommet cable laid slings, wire rope bridle slings, socket slings, braided wire rope slings, and so on.

Anyone who requires wire rope slings is advised to know the importance of wire rope slings. Learning about the handling and maintenance of wire rope slings ensures that these can last longer. It also ensures safety throughout the project process.

Sich Wirerope as a wire rope sling manufacturer, our products offer many advantages over other types of rigging products, including higher strength, lower weight, and greater flexibility. Their high-quality materials can withstand a variety of environmental conditions. When used properly, our wire rope slings can provide years of reliable service.

This article discusses everything you need to know about wire rope slings. It includes different types of wire rope slings and sling accessories. The article also discusses commonly used wire rope slings for various applications.

Chapter 2

Wire Rope Sling Parts And Components

There are many types of wire rope slings, among which the most common types are the following three kinds, they all consist of certain components. The other wire rope slings are composed of almost only the rope core ( fiber core/steel core). This section will discuss the different wire rope sling parts.

JF Brand fiber core Mechanically Spliced Wire Ropes slings
Spliced Wire Rope Sling
2 leg bridle wire rope sling
Wire Rope Bridle Sling
Spelter Socket Slings
Socket Sling

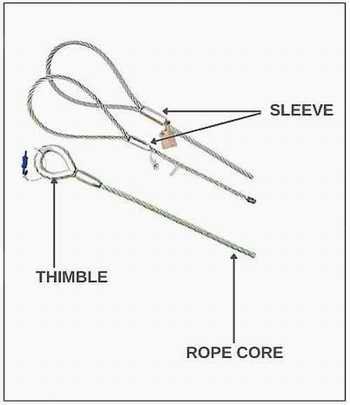

- Spliced Wire Rope Sling

Spliced wire rope sling is made by pressing and machining of wire rope press sleeve machine. It uses the sleeve to press one or both ends of the wire rope into a circular shape. Some wire rope slings with thimbles, some without. So, spliced wire rope sling consists of rope core, sleeve, and thimble.

  • ROPE CORE


The main function of the wire rope core is to support the wire rope, in order to achieve a stable cross-sectional structure, increase the flexibility and toughness of the wire rope, lubricate the wire, reduce friction, and improve the service life of the wire rope.

Common types of rope core are fiber core (such as hemp, cotton) and steel core. Fiber core including natural fiber core and synthetic fiber core, natural fiber core such as sisal, jute, cotton thread, etc., synthetic fiber core including polyethylene and polypropylene filament, etc.. It is mainly to lubricate the effect of corrosion to delay the wire rope.

The steel core wire rope is more wear-resistant than the fiber core wire rope, anti-extrusion, with higher service life, break tension is also relatively high, and the softness is slightly lower. Because of wear-resistant and pressure-resistant , steel core wire rope is generally applied to the crane. It can be used in the working environment of high temperature places, and can withstand the extrusion of external force transverse to the steel wire rope.

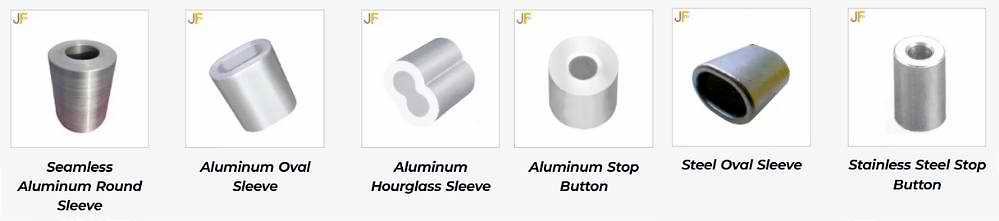

  • SLEEVE


Spliced wire rope sling would use sleeving swaging process, which is of stable quality, high production capacity, and reliability, as well as mass production.

In Sichwirerope manufacturer, there are a wide variety of sleeves for wire rope slings, for example, flemish eye steel swaging sleeves(S 505), aluminum ferrules(DIN 3093),  round sleeves, oval sleeves, hourglass sleeves, stop buttons, etc.

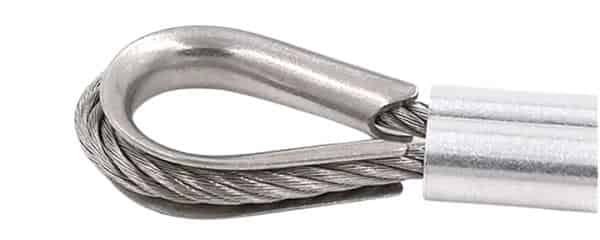

  • THIMBLE


The function of the wire rope thimble is to connect other components and tie around the end of the rope to prevent excessive bending and abrasion. It is an important part of the wire rope sling.

1) the thimble should be smooth and flat, there should not be any damage to the wire rope cracks, defects, sharp edges and surface roughness, and inequality defects. The tip of the thimble should be free to fit the wire rope, and the tip part should be cut short to half of the groove depth.

2) the surface of the thimble should be hot dipped galvanized, and it should be smooth and flat, there should be no defects such as leakage, zinc particles, bubbles, and cracks, and the galvanized layer should have sufficient adhesion strength in normal application.

3) the material of the thimble can be stainless steel or high-quality carbon steel.

4) the thimble safety load should be at least 32% of the wire rope breaking the tension.

5) the thimble should be used to meet the specifications of the wire rope, the diameter of the pin shall not be less than two times the diameter of the wire rope.

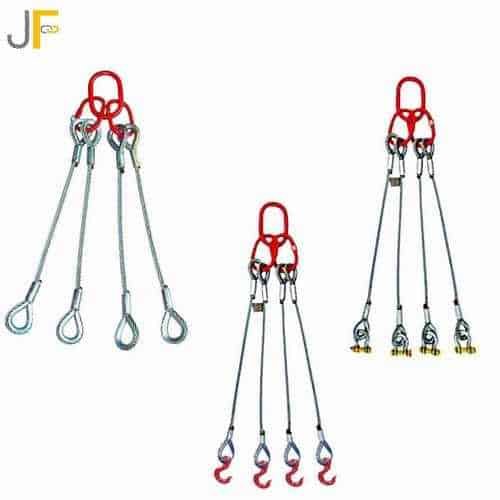

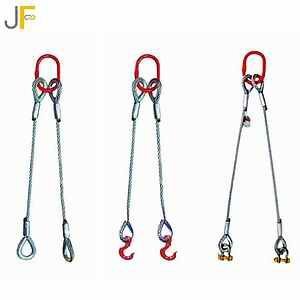

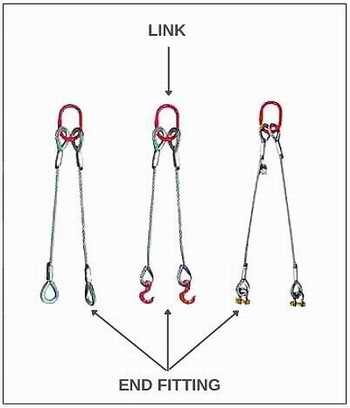

- Wire Rope Bridle Sling

Spliced wire rope sling is made into single-leg, 2-leg, 3-leg, 4-leg, or multi-leg wire rope slings, known as Wire Rope Bridle Sling. At one end of the swaged wire rope sling is the link and at the other end is the end fitting. So, wire rope bridle sling consists of spliced wire rope sling, link, and end fitting.

  • LINK


The link is the connector between the hoist and the lifting object, which is widely used and is a common rigging accessory. It can be used alone or in combination with another rigging, and it is safe, reliable, and long-lasting.

The link is used for lifting goods, mainly as a connector, so that the cargo can be carried, at the same time it can reduce the workforce, which can greatly enhance the efficiency of labor.

The link can be used not only alone, but also with other lifting equipment, it is small in size, light weight, user-friendly, high safety in use, high strength, and not easy to break.

In our Sichwirerope Manufacturer, we supply various types of links and rings, such as master links, master link assembly, pear links, and weldless rings with ASTM and Federal standards.

  • END FITTING



Multi-legged wire rope sling with one end as the connector and the other end as the end fitting. When lifting heavy objects, different end fittings are required depending on the weight of the object, such as hooks, shackles, and so on.

In shackles, for example, the wire rope is located in the force part, and the pin is at the fixed end so that no rotation will occur in the hoisting process, and the tightness of the shackle connection is well ensured.

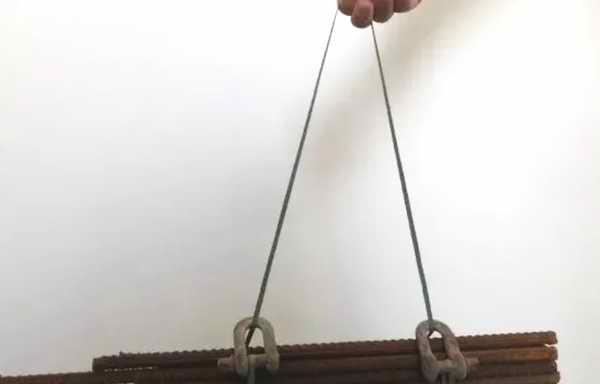

bridle sling shackle

- Socket Sling

Socket wire rope sling is made from the world’s high-quality wire rope and high-strength anchors. It is integrated with the world’s advanced casting process. It is a specialized tool for holding, transferring, and handling heavy objects. It is also a key part of the prerequisite, the pressure of the metal structure. It is available in two forms hot and cold casting, and its structure is divided into open, closed, forked, adjustable, etc. So, the socket sling consists of wire rope, and socket.

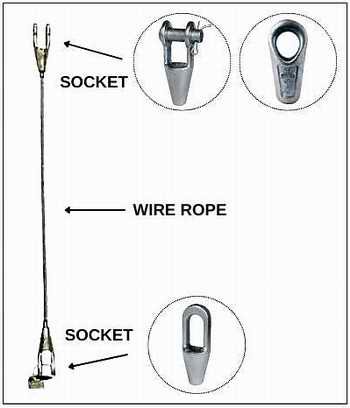

  • SOCKET

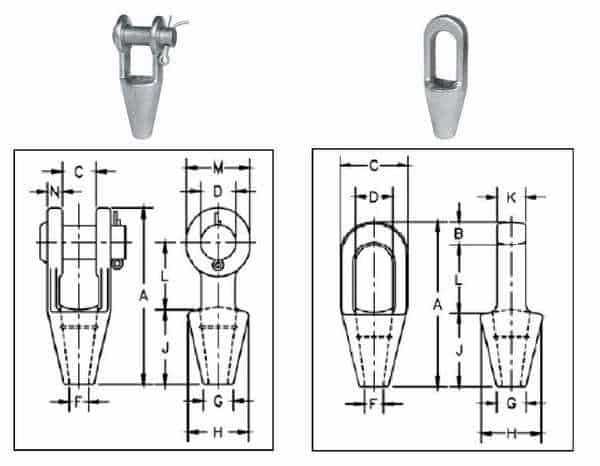

socket sling structure

In our Sichwirerope Manufacturer, there are open socket slings and closed socket slings, and both of them have the following features:

    1. available for wire rope from 6mm to 102mm in diameter.
    2. reach the rated tension of the wire rope better.
    3. 6-38mm sockets are forged alloy steel, and 40mm or more large-size are available in cast alloy steel and forged alloy steel.
    4. made of hot-dip galvanized.
Chapter 3

Wire Rope Sling Uses in Different Industries

As one of the best lifting sling and rigging manufacturers in China, SichWerope has been serving various market sectors where sling and rigging hardware plays an integral role. These industries require high-quality wire rope slings and rigging, which in turn enhances the safety of their projects.

    • Offshore Oil & Gas Industry
    • Salvage Operations Industry
    • Mariculture Industry
    • Marine Industry
    • Ports & Container Terminals Industry
    • Petroleum Chemical Projects Industry
    • Power Plant projects Industry
    • Infrastructure Construction Industry

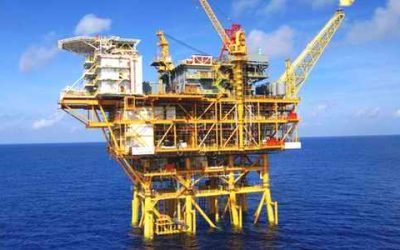

- Offshore Oil & Gas Industry

In coastal areas, there are plenty of drilling platforms and oil extraction platforms where wire rope sling is widely used as an important tool. As the offshore environment is harsh, with severe salinity and humidity, so high resilience and thick galvanized steel wire ropes are necessary.

In the offshore oil & gas industry, steel core 6×19S, 6×19W, 6×25F, 6×26WS, 6×29F, 6×31WS, 6×36WS wire rope is recommended.

Sichwirerope lifting & hoisting service

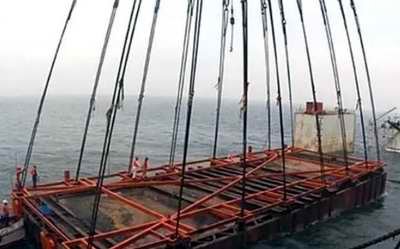

Salvage Operations Industry

- Salvage Operations Industry

Salvage operations are the project to salvage sunken objects in the water. Including salvage of ships, aircraft, cargo, etc. Salvage operations in the waterway, and harbor areas, can clear the navigable obstacles.

Galvanized 6×36WS, 6×41WS, 6×49SWS, 6×31WS, 6×55WS, 8×19W, 8×31WS, 8×36WS, 8×41WS, 8×49SWS, 8×55SWS wire rope is recommended for salvage operations industry.

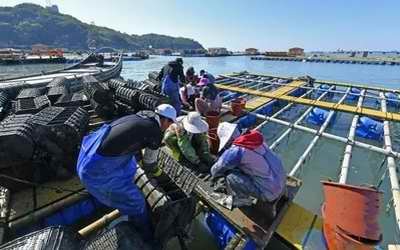

- Mariculture Industry

The Mariculture industry includes crab farming, shrimp farming, etc., which generally uses galvanized steel strand wire rope. The hot-dip galvanized steel strand wire rope is oil-free and has the ability to prevent corrosion.

Usually, 6×36WS, 6×31WS, 6×26WS, 6×19(S), 6×24, 6×7 wire rope is recommended.

Mariculture Industry

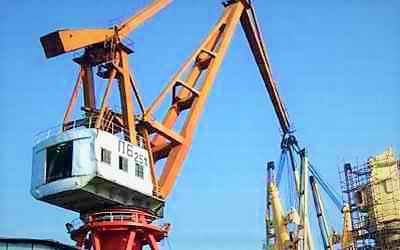

Shipyards wire rope slings

- Marine Industry

Due to the erosion of seawater, ship wire rope is exposed to seawater, salt, and sun screen every day, and it is used with anti-corrosion material, which is generally used for reinforcement, and must be replaced at 5% of the time considering the strength of resistance to typhoons, so we recommend:

  • Galvanized 6×19W, 6×25F, 6×29F, 6×31WS, 6×36WS which is wire contact wire rope.
  • 18×19S, 18×19W,  34×7, 36×7, 35W×7, 24W×7 is multi-layer strand wire rope.
  • 4×V39S, 4×V48S is a four-strand fan strand wire rope.

- Ports & Container Terminals Industry

Port lifting and handling wire rope, in the current market, the structure is mostly 6 or 8 strands, common 6 strands of wire rope are 6*36WS+IWR, 6*29Fi+IWR, tensile strength grade 1770MPa, 1670MPa.

Our suggestion is that gradually choose 8 strands of wire rope, such as 8*31WS+IWR, or 8*36WS+IWR. 8 strands are softer than the traditional 6 strands of wire rope, and because it is a steel core, can be better impact resistance, and frequency resistance.

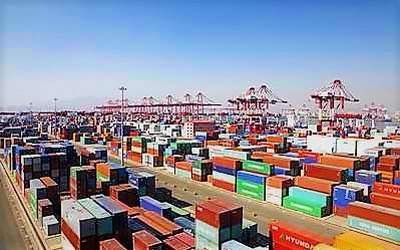

Port crane wire rope

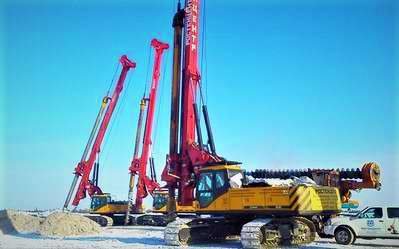

Drilling Rig wire rope

- Petroleum Chemical Projects Industry

Wire rope is an indispensable part of the petroleum industry. Steel wire rope is generally twisted and made of high-carbon steel wire. There are multiple specifications of steel wire rope, for the chemical industry, and lifting projects commonly used: 6×19+1, 6×37+1, and 6×61+1 three types.

Among them, 6 means the number of strands wound into wire rope, 19 (37, 61) means the number of wires in each strand, and 1 means the middle of the fiber core.

- Power Plant projects Industry

Port lifting and handling wire rope, in the current market, the structure is mostly 6 or 8 strands, common 6 strands of wire rope are 6*36WS+IWR, 6*29Fi+IWR, tensile strength grade 1770MPa, 1670MPa.

Our suggestion is that gradually choose 8 strands of wire rope, such as 8*31WS+IWR, or 8*36WS+IWR. 8 strands are softer than the traditional 6 strands of wire rope, and because it is a steel core, can be better impact resistance, and frequency resistance.

power slings

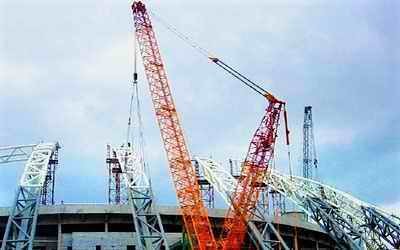

Construction wire rope slings

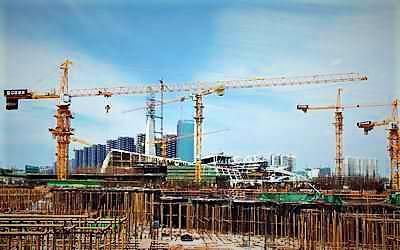

Tower crane wire rope

- Infrastructure Construction Industry

The use of wire rope in construction projects is increasing, such as tower cranes, elevators for people and goods, derrick lifts, baskets, and so on. In general, the selection of steel wire rope can consider the following:

  • 6×19 steel wire rope is used for cable wind rope, pulling the rope, and making lifting rigging, which is generally used in places where the bending load is small or suffering from wear and tear.
  • 6×37 steel wire rope used for lifting operations in the lashing of various objects, equipment, and threading around the pulley set and the production of lifting rigging.
  • 6×61 steel wire rope is used for tying all kinds of objects. Rope wire rigidity is small, easy to bend, and used for the place where the force is not large.
Chapter 4

Types of Wire Rope Slings

In our SichWirerope lifting sling & rigging manufacturer, there are a large of wire rope slings, for example, Spliced wire rope slings,  Cable laid slings, Grommet endless slings, Bridle slings, Socket slings, Braided wire rope slings, Sling sleeves, Turnbuckle hardware, Cable stocking, etc. They are all confirmed to EN, and GB standards, if you are not sure which type of wire rope slings to choose, you can freely contact us and our experts will give you suggestions.

- Mechanically Spliced Wire Rope Slings

There are 2 types of Mechanically spliced wire rope slings with EN13411-3:2004, GB standards:

  • Spliced Wire Rope Slings – fiber core
  • Spliced Wire Rope Slings – steel core

They can all attach the various sleeves(aluminum ferrules or flemish eye steel sleeves), with or without a thimble. And they can be mass-produced with a short delivery time.

- Hand Spliced Wire Rope Slings

As a wire rope sling manufacturer, we supply 2 types of hand spliced wire rope slings with EN13411-2:2001, GB standards:

  • Hand Spliced Wire Rope Slings – fiber core
  • Hand Spliced Wire Rope Slings – steel core

All their soft loop sizes can be customized if the listed loop sizes are not suitable. They need to be made by hand and therefore take longer to produce.

- Large Diameter Cable Laid Slings

Sichwirerope manufacturer not only offers you the normal hand spliced wire rope sling but also provides the large diameter cable laid slings with EN13414-3:2003 standards:

The large diameter wire rope pattern series 6×37(a) & 6×61 (a) & 8×61(a) & 8×61(ab) are commonly used in the cables, from 69mm to 408mm, and the nominal tensile strength is 1770 MPa.

- Cable Laid Grommet Sling

There are 2 types of endless cable laid grommet sling: general purpose, and high-performance with EN13414 and GB standards:

  • Cable Laid Grommets – general purpose
  • Cable Laid Grommets – high performance

General endless grommet sling is fiber core, 1670MPa. While the high-performance cable laid grommet sling is steel core, 1770MPa.

- Wire Rope Bridle Slings

SichWireRope is a leading wire rope sling manufacturer in China for over 40 years, we mainly supply 3 types of wire rope bridle slings with EN13414, EN13411, and GB standards:

  • Single Leg Wire Rope Sling
  • 2 Leg Wire Rope Bridle Sling
  • 3 Leg Wire Rope Bridle Sling
  • 4 Leg Wire Rope Bridle Sling

They can be customized to your requirement, with or without master links, hooks, or shackles.

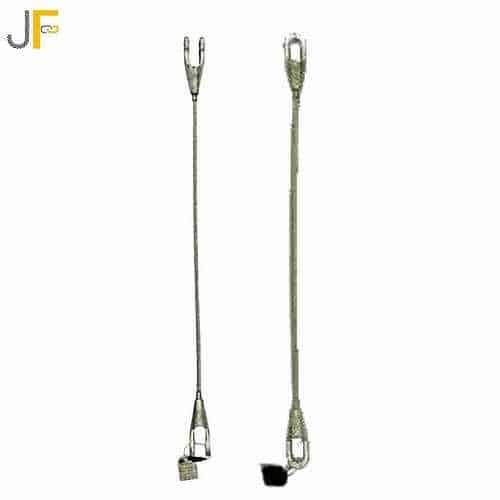

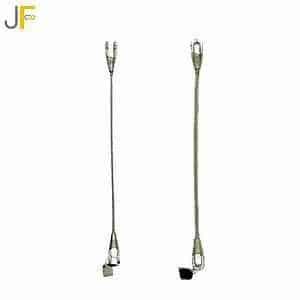

- Spelter Socket Slings

We mainly supply 2 types of spelter sockets for wire rope slings with EN13411 and GB standards:

  • Open Spelter Socket Sling
  • Closed Spelter Socket Sling

The above sockets are available for wire rope 6mm~102mm in diameter. And 6-38mm sockets are forged alloy steel, and 40mm or more large-size are available in cast alloy steel and forged alloy steel.

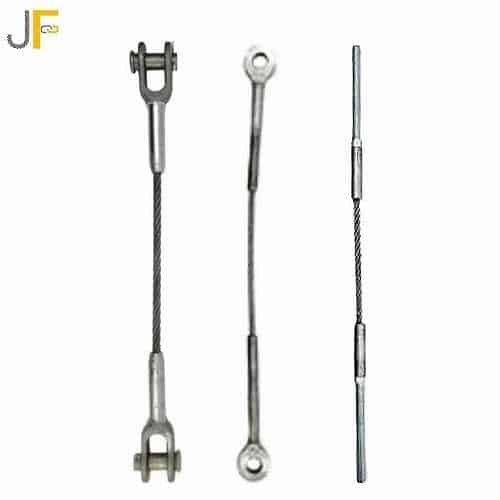

- Swage Socket Slings

As 40 years wire rope sling manufacturer, we supply 3 main types of swage sockets for wire rope slings with EN13411 standards:

  • Open Swage Socket Sling
  • Closed Swage Socket Sling
  • Swage Threaded Studs Socket Sling

6×19, 6×25, 6×29, and 6×37 wire rope is recommended for the swage socket sling, which is 1670-1960MPa.

- Braided Wire Rope Slings

We supply various types of braided wire rope sling with standards: 3-part braid, 6-part braid, 8-part braid, and even more 9-part braided wire rope slings, etc.

You can custom the main wire strand NO. in our wire rope sling manufacturer.

If you have any questions about braided wire rope slings, feel free to contact our team at any time.

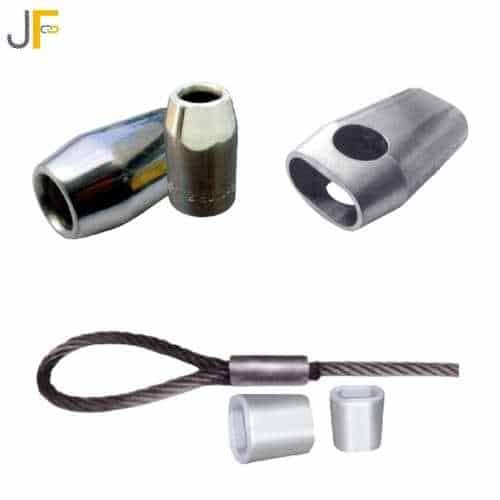

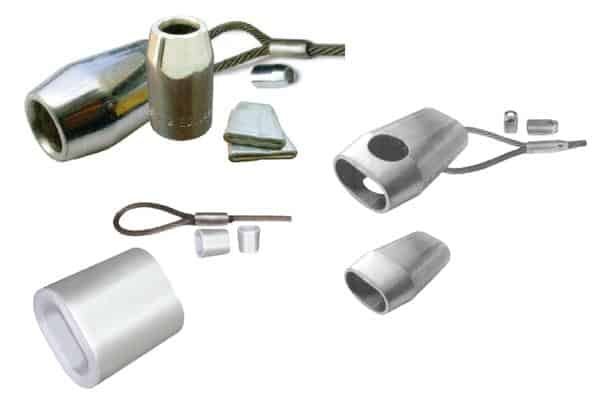

- Wire Rope Sling Ferrules

As a China leading wire rope sling ferrule supplier, we produce a variety of sleeves, especially those equivalent to the CROSBY.

You can wholesale Flemish Eye Steel Swaging Sleeve, Aluminum Ferrules, Steel Oval Sleeves, Stop Buttons, etc.

If you have any questions about the wire rope sling sleeves, feel free to contact our team at any time.

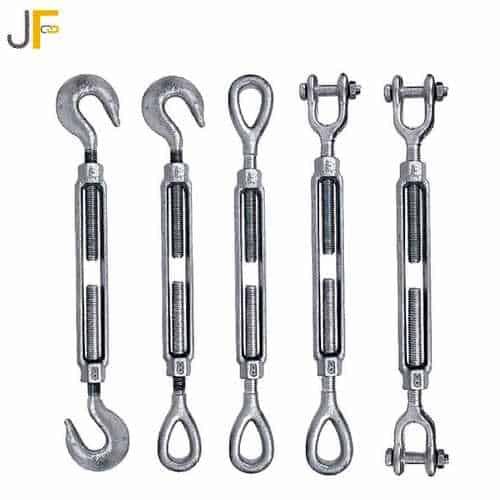

- Turnbuckles Hardware

SichWireRope is a turnbuckle manufacturer in China for over 40 years. We supply mainly 5 turnbuckle types at an affordable price:

  • Turnbuckle type CC
  • Turnbuckle type OC
  • Turnbuckle type OO
  • Turnbuckle type OU
  • Turnbuckle type UU

If you have any questions about turnbuckle hardware, feel free to contact our team at any time.

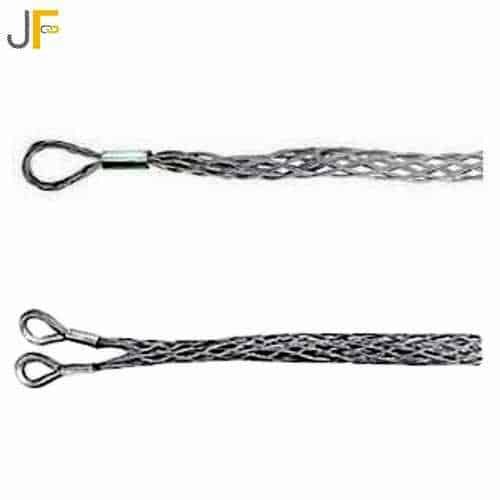

- Cable Stockings

As a lifting sling & rigging manufacturer, we supply mainly 2 types of cable stockings with standards:

  • Single Eye Cable Stocking
  • Double Eye Cable Stocking

If you have any questions about cable stockings, feel free to contact our team at any time.

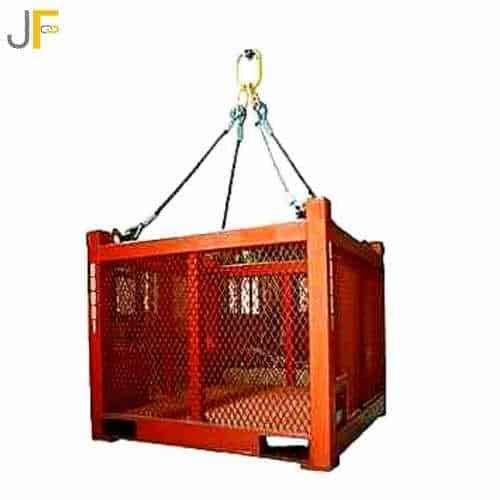

- Offshore Container Wire Rope Sling

As the very first DNV2.7-1 type approved manufacturing service provider in China for 40 years, you can custom offshore container lifting sets with DNV-type approval from our wire rope sling manufacturer, as well as container lashings.

If you have any questions about offshore container wire rope slings, feel free to contact our team at any time.

Chapter 5

Wire Rope Sling Cores

The core is the inner part of the wire rope, and there are two types of wire rope cores: fiber core, and steel core.  This section will list the differences between each type.

What is the main function of the wire rope core?

  • support the rope strand to keep a certain cross-sectional shape, reduce the contact stress and extrusion deformation between the wires
  • increase the flexibility of the wire rope, and elastic cushion role, when the wire rope bending, the wire strand or between the wire can move relatively, in order to ease the bending stress
  • store lubricating oil, prevent the rope wire rust and reduce the friction between the wires

- Fiber Core (FC)

Fiber core wire rope is composed of a fiber rope in the middle, with the letter FC said. It includes natural fiber core and synthetic fiber core,

  • Natural fiber core: sisal, jute, cotton thread, etc.,
  • Synthetic fiber core: polyethylene and polypropylene filament, etc.

Natural fiber core could store more grease, lubricate the wire rope, prolong the service life of wire rope.

fiber core wire rope sling

- Steel Core (IWS/IWR)

Steel core wire rope is composed of one rope strand or steel wire in the middle. With the letter IWS or IWR said.

  • Steel wire: the basic strength unit of wire rope, requires high strength and toughness.
  • Rope strand: twisted by the steel wire into each small rope strand. The same diameter and structure as the wire rope, the number of strands is high fatigue strength.
steel core wire rope sling

- Differences

  • The difference in material

Fiber core wire rope is composed of a fiber rope in the middle, with the letter FC said. Its material is basically the same as the fiber used in general fiber rope, and the steel core wire rope is composed of a stainless steel wire rope in the middle, with the letter IWS or IWR said. The steel core wire rope of the same diameter is larger than the breaking tension of the hemp core wire rope, and the load borne is also large.

  • The difference in quality

The steel core wire rope is more wear-resistant and anti-extrusion than the fiber core stainless steel wire rope, with higher service life, and relatively high breaking tension, the softness is relatively low. Because of the resistance to wear and pressure, steel core wire rope is generally used in cranes or winches. The steel core wire rope in high-temperature resistance is higher than the fiber core wire rope.

  • The difference in price

The price of steel core wire rope is relatively higher than fiber core steel core wire rope, but considering the service life and the tension, steel core wire rope will be relatively good. So in general, the cost of steel core wire rope is lower.

Chapter 6

Wire Rope Sling Thimbles

Wire rope thimbles with rope groove, for the end of the rope around the tie, to prevent excessive bending and wear of the rope and cable and can be connected to other components of the heart-shaped metal ring.

In our SichWirerope rigging hardware manufacturer, there are 3 types of wire rope thimbles:

  • solid thimbles
  • standard wire rope thimbles
  • heavy-duty wire rope thimbles

with GB, EN, and Federal standards. This section will list the different sizes, materials, and styles of thimbles.

wire rope thimbles

- Solid Thimbles

If you have any questions about these solid thimbles, feel free to contact our team at any time.

- Standard Wire Rope Thimbles

If you have any questions about these standard wire rope thimbles, feel free to contact our team at any time.

- Heavy Duty Wire Rope Thimbles

If you have any questions about these heavy duty wire rope thimbles, feel free to contact our team any time.

Quality Requirements:

  • Thimbles should be smooth and flat, there should not be any damage to the wire rope cracks, defects, sharp edges and surface roughness, and inequality defects. The tip of the thimbles should be free to fit, and the tip part should be truncated to half of the groove depth.
  • The surface of the thimbles should be hot dipped galvanized, and the surface should be smooth and flat, there should be no defects such as leakage, zinc particles, bubbles, and cracks, and the galvanized layer should have sufficient adhesion strength in normal application.
  • The material of the thimbles can be A3 steel or 15, 35 high-quality carbon steel.
  • Thimbles’ safety load should not be less than 32% of the minimum breaking tension of the wire rope.
  • When using thimbles, the diameter of the shaft pin shall not be less than two times the diameter of the wire rope.
Chapter 7

Wire Rope Sling Sleeves

Wire rope sling sleeves are used to secure the ends of wire rope slings for added safety and strength. They are available in a wide variety of materials and sizes, depending on the type of wire rope sling and the application.

There are two main types of wire rope sling sleeves in our SichWirerope rigging hardware manufacturer:

  • Mechanical sleeves: have an eyelet that is crimped shut and secured with a set screw
  • Swaged sleeves: typically welded together and are stronger than mechanical sleeves.

To work, the sleeve is first attached to the wire rope sling. Once securely fitted, the eyelet is crimped or swaged shut using a hydraulic tool. The set screw is then tightened to secure the sleeve in place. After the sleeve is secured, the eyelet is then connected to a hook or shackle.

Wire rope sling sleeves are commonly used in a variety of applications including lifting, rigging, hoisting, and marine. They are an essential component for ensuring a safe and secure connection between the sling and the load. Additionally, they are used to extend the life of the wire rope sling, as they protect it from abrasion, wear, and fatigue.

Sichwirerope wire rope sling sleeves & ferrules

Sichwirerope manufacturer provides a wide variety of sleeves for wire rope slings, for example, flemish eye steel swaging sleeves(S 505), Aluminum ferrules(DIN 3093),  round sleeves, oval sleeves, hourglass sleeves, stop buttons, etc. You can also contact us for OEM / ODM at any time.

- Flemish Eye Steel Swaging Sleeve (S-505)

Sichwirerope S 505 sleeves are equivalent to the Crosby S-505. The SichWirerope is a recognized manufacturer and supplier of wire rope slings in China, offering low-price but high-quality products.

If you have any questions about these Flemish Eye Steel Swaging Sleeves (S-505), feel free to contact our team at any time.

- Aluminum Ferrules (DIN 3093)

The Sichwirerope Aluminum Ferrules are produced in strict accordance with EN13411-3 (DIN3093) standards, and their material composition and mechanical properties fully meet or exceed the EN requirements.

If you have any questions about these aluminum ferrules, feel free to contact our team at any time.

- Aluminum Ferrules Form C

Sichwirerope Aluminum ferrules form C is placed over the ends of the wire rope and then crimped in place. It is made from aluminum, which is a strong yet lightweight metal.

If you have any questions about these aluminum ferrules form C, feel free to contact our team at any time.

We can also supply other types of sleeves, so please feel free to contact us if you need to wholesale them.

Chapter 8

Wire Rope Sling End Fittings

Wire rope sling end fittings are components used to secure the ends of a wire rope sling to an item being lifted or moved. They are designed to provide a secure and safe attachment of the sling to the item being lifted or moved. End fittings come in a variety of designs and materials, including mechanical clamps, swaged fittings, and even forged components.

At Sichwirerope manufacturer, we mainly provide the following types of wire rope sling end fittings:

  • Shackles
  • Hooks
  • Master Links
  • Wire Rope Sockets
  • Wire Rope Clips
  • Lifting Points

They are all with EN, ASME, ASTM, or Federal standards. If you want to custom other end fittings, we can support you, just contact us!

Wire rope sling end fittings

- Lifting & Rigging Shackles

At Sichwirerope manufacturer, there are 3 main common types of rigging shackles available to choose from:

  • Anchor shackles
  • Chain shackles
  • Wide body shackles

If you have any questions about any types of rigging shackles, feel free to contact our team at any time.

- Hoist Hooks, Rigging Hooks, Sling Hooks & Lifting Hooks

In our 40 years SichWirerope rigging hardware manufacturer, in China, we provide 4 common rigging hook types:

  • Hoist hooks
  • Sling hooks
  • Self-locking hooks
  • Grab hooks

If you are unsure about which rigging hook is right for your application, please contact our specialist for assistance.

- Master Links & Rigging Rings

There are 4 types of Sichwirerope master links & rings in our rigging hardware manufacturer:

  • Blong master links
  • Master link assembly
  • Pear links
  • Weldless rings

If you want to choose the right master links or rigging rings for your project, you can contact us at any time and our experts will help you.

- Wire Rope Sockets

There are 3 main common types of wire rope sockets in our rigging hardware manufacturer:

  • Open spelter sockets
  • Closed spelter sockets
  • Short bow sockets

Of course, there are 4 customized styles of sockets available: open swage sockets, closed swage sockets, wedge sockets, and threaded swage thuds.

If you want to choose sockets for your project, you can contact us and our experts will help you.

- Wire Rope Clamps

In our SichWirerope rigging manufacturer, we provide 2 types of wire rope clips:

  • Galvanized wire rope clips
  • Drop forged wire rope clips

You can choose the above two types of wire rope clamps, and we provide OEM and ODM services.

- Lifting Points

In our China 40 years rigging hardware manufacturer – SichWirerope, we mainly have 4 common  types of lifting points:

  • Swivel hoist ring – Grade 80
  • Shoulder eye bolt – Galvanized
  • Weld On D Ring – Grade 80
  • Shipping container hook – Grade 80

If you want to wholesale lifting points, you can contact us for OEM / ODM, and our experts will help you at any time.

Chapter 9

Wire Rope Sling Capacity Formula

Commonly, we will provide Wire Rope Sling Capacity Chart for you

Wire rope sling capacity formula = (Diameter of rope squared) x Length of rope x Safe Working Load (in lbs) / 8.

*Example:

A wire rope with a diameter of 1/2 inch and a length of 8 feet has a safe working load of 1200 lbs.

Wire rope sling capacity = (0.5^2) x 8 x 1200 / 8

Wire rope sling capacity = 300 lbs.

And if you need to calculate the bridle wire rope sling, the capacity of a wire rope sling is determined by multiplying the vertical capacity by the horizontal capacity. The vertical capacity is determined by multiplying the diameter of the rope by the strength of the rope, then multiplying this product by the number of legs of the sling. The horizontal capacity is determined by dividing the total capacity by the number of legs of the sling.

*Example:

If the rope is 7/16″ in diameter and has a strength of 8,400 lbs. and the sling has two legs,

the vertical capacity of the sling is:

7/16″ x 8,400 lbs. x 2 legs = 66,400 lbs.

The horizontal capacity of the sling is:

66,400 lbs. ÷ 2 legs = 33,200 lbs.

Why Choose the SichWirerope Wire Rope Sling Manufacturer?

工厂图

SichWirerope wire rope sling manufacturer has been a leading provider of industrial lifting and material handling solutions for over 40 years. We’re committed to delivering top-notch customer service with experience and expertise, ensuring safety standards are met at every turn while also producing practical solutions tailored specifically to your needs! Our products have been exported to over 60 countries & areas in Europe, Australia, South America, Japan, Southeast Asia, the Middle East, etc.

1982
Found
25
Acres
1600 +
Employees
80000 tons
Yearly Output
wire rope slings manufacturers

√ Extensive Experience

SichWirerope is one of the largest companies that specialized in providing large numbers of reliable wire rope slings and excellent service. We can produce the largest and heaviest slings in the industry.

微信截图 20220721144959

√ Top Quality & Safety

We are in control of the manufacturing process and the core technology of wire rope slings, and we use highly efficient management and control systems to ensure the stability, safety and high quality of our products.

swaging machines

√ Advanced Machines

SichWirerope manufacturer has advanced production lines and the world's largest imported 3000-ton swaging machine, which can make produce large diameter and tonnage of slings.

wire rope slings R&D Team

√ Customization & Solutions

As a professional lifting and hoisting solution service company, you can get expert advice and assistance from our wire rope slings manufacturer. Also, we can customize your wire rope slings with your drawings.

large cable-laid supplier

√ Excellent R&D Team

We have a witty and innovative R&D team that ensures we continue to stay on top of the market. And we have designed and developed 696mm diameter and 8000 ton slings.

testing center

√ Testing Center

We have a world-class testing center, a complete testing system and a material traceability system to ensure that our products meet the standards. Third party testing and certification with DNV, CCS, ABS, and BV.

Testing Center

wire rope slings testing
wire rope sling testing

Cases

marine engineering

Offshore Oil & Gas

Largr diameter cable-laid slings are used for the hoisting of part of an offshore oil platform.

Salvage Engineering

Salvage Operations

Participated in the design & manufacturing of slings for Nanhai No.1 salvage operation.

shipyards

Shipyards

Supplied CCS certified steel-ferrule-secured slings to Shandong Bohai Ferry Company

ports and container terminals

Ports & Container Terminals

Supplied slings, fittings and anti-typhoon products for Shenzhen Chiwan Container Terminal.

petroleum chemical projects 1

Petroleum Chemical Projects

Supplied slings for the redinery construction project of Nanhai Oil Company.

power plant project

Power Plant Project

Supplied sling products for the Three Gorges projects & the hydropower facilities installation.

Global Contract Suppliers

> SichWirerope manufacturer the wire rope slings have been exported to more than 60 countries and districts such as Europe, Australia, South America, Japan, Southeast Asia, and the Middle East in the past 40 years.

> Our brand the JF Brand attends the exhibition every year, such as the USA (Houston) International Petroleum Exhibition (OTC), and Guangzhou International Exhibition in China. So, we have signed contracts with various customers from different countries.

USA Houston International Petroleum Exhibition OTC

Certification

> The SichWirerope wire rope slings applicable standards: GB, EN, BS, DIN, AS, JIS, ASME, and WSTDA standards.

> We have got a CCS type certificate, DNV type certificate, CE certificate, GS certificate, CNAS national laboratory accreditation

> Supply CCS, DNV, ABS, BV, and other third-party testing services, issue certificates, and have many invention patents.

JF Brand wire rope sling certificates
JF Brand wire rope sling certificates

Testimonials

UK
UKDylan, Importer
Read More
We are a trading company that deals with many suppliers on the B2B marketplace. It's hard to find right products for our customers, but SichWirerope had offered us high-quality goods and helped increase revenue in past years. We have been using their services since they opened up shop because there is no one else around here who can provide what we need at such great prices!
Germany
GermanyDieter
Read More
I found SichWirerope from their website. After confirming the customizable needs about the wire rope slings, they replied they can do modification as I request. I flew to China and met them, they were very patient to explain all different models and professional suggestion based on my idea, finally, I chose them to be my reliable suppliers to help me extend my business in lifting solution field.
Sweden
SwedenLowell
Read More
When I first started working with SICHWIREROPE, they were one of the most professional companies that i had come across in recent years. They always seemed to have their customers' best interests at heart and went out of there way not only provide me great customer service but product quality as well!
Australia
AustraliaLuke, Distributor
Read More
I have had many contacts and cooperated with them. But from the wire rope slings filed, they've given me a lot of professional supports especially in model choice which helped improve my local market so much! They are really very trustful partner who always answer all questions quickly without being too pushy or overbearing.
