| Wholesale Spliced Wire Rope Slings - Fiber Core
>> What is fiber core spliced wire rope sling?
As the name suggests, fiber core spliced wire rope slings are made by splicing together two lengths of steel wire rope with fiber cores inside. This type of sling is typically used for lifting and rigging applications, as they offer a number of advantages over traditional wire rope slings.
>> How to wholesale fiber core spliced wire rope slings in our wire rope sling manufacturer?

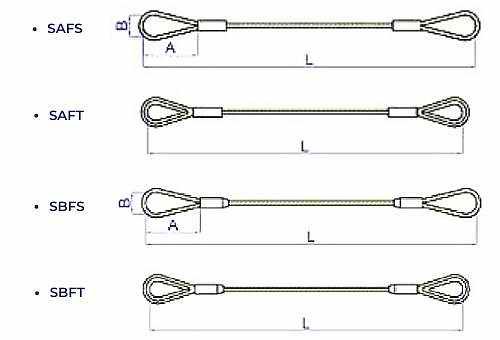

You can wholesale 4 main types of JF Brand fiber core spliced wire rope slings in our wire rope sling manufacturer: SAFS, SAFT, SBFS, and SBFT.
* EXAMPLE: For one fiber core wire rope sling with flemish funnel swaging sleeve, with the thimble, 6mm diameter, and 5m sling functional length. YOu CAN ORDER: SBFT06-5.
Order Tips (EN13411-3:2004) :
S : Steel wire rope sling
A/B : Swaged sleeve (A: Oval swaging sleeve / B: Flemish funnel swaging sleeve)
F : Wire core material (F: Fiber core)
T/S : With (T) or Without (S) thimble
L : Sling functional length
Thimble:
There are variety of thimbles in our manufacturer, especially
- Fabrication Time: 3-5 days
- Support Customization
- China Factory Direct
>> JF Brand fiber core spliced wire rope sling capacity chart:
Model | Sling Diameterя╝Иmmя╝Й | Loop Size (mm) | Working Load Limit (ton) | ||||||
A | B | 6├Ч37 (b) 1670MPa | 6├Ч19 (a) | 8├Ч61 (b) 1770MPa | |||||
SAFS06 | SAFT06 | SBFS06 | SBFT06 | 6 | 180 | 90 | 0.33 | 0.36 | – |
SAFS07 | SAFT07 | SBFS07 | SBFT07 | 7 | 180 | 90 | 0.44- | 0.50 | – |
SAFS08 | SAFT08 | SBFS08 | SBFT08 | 8 | 200 | 100 | 0.58 | 0.65 | – |
SAFS09 | SAFT09 | SBFS09 | SBFT09 | 9 | 200 | 100 | 0.73 | 0.82 | – |
SAFS10 | SAFT10 | SBFS10 | SBFT10 | 10 | 200 | 100 | 0.90 | 1.01 | – |
SAFS11 | SAFT11 | SBFS11 | SBFT11 | 11 | 220 | 110 | 1.09 | 1.22 | – |
SAFS12 | SAFT12 | SBFS12 | SBFT12 | 12 | 240 | 120 | 1.30 | 1.46 | – |
SAFS13 | SAFT13 | SBFS13 | SBFT13 | 13 | 260 | 130 | 1.53 | 1.71 | – |
SAFS14 | SAFT14 | SBFS14 | SBFT14 | 14 | 280 | 140 | 1.77 | 1.98 | – |
SAFS16 | SAFT16 | SBFS16 | SBFT16 | 16 | 320 | 160 | 2.31 | 2.59 | – |
SAFS18 | SAFT18 | SBFS18 | SBFT18 | 18 | 360 | 180 | 2.93 | 3.28 | – |
SAFS20 | SAFT20 | SBFS20 | SBFT20 | 20 | 400 | 200 | 3.62 | 4.29 | – |
SAFS22 | SAFT22 | SBFS22 | SBFT22 | 22 | 440 | 220 | 4.38 | 5.19 | – |
SAFS24 | SAFT24 | SBFS24 | SBFT24 | 24 | 480 | 240 | 5.21 | 6.17 | – |
SAFS26 | SAFT26 | SBFS26 | SBFT26 | 26 | 520 | 260 | 6.11 | 7.24 | – |
SAFS28 | SAFT28 | SBFS28 | SBFT28 | 28 | 560 | 280 | 7.09 | 8.40 | – |
SAFS30 | SAFT30 | SBFS30 | SBFT30 | 30 | 600 | 300 | 8.14 | 9.65 | – |
SAFS32 | SAFT32 | SBFS32 | SBFT32 | 32 | 640 | 320 | 9.26 | 10.97 | – |
SAFS34 | SAFT34 | SBFS34 | SBFT34 | 34 | 680 | 340 | 10.4 | 12.39 | – |
SAFS36 | SAFT36 | SBFS36 | SBFT36 | 36 | 720 | 360 | 11.7 | 13.89 | – |
SAFS38 | SAFT38 | SBFS38 | SBFT38 | 38 | 760 | 380 | 13.1 | 15.48 | – |
SAFS40 | SAFT40 | SBFS40 | SBFT40 | 40 | 800 | 400 | 14.5 | 17.15 | – |
SAFS42 | SAFT42 | SBFS42 | SBFT42 | 42 | 840 | 420 | 15.9 | 18.91 | – |
SAFS44 | SAFT44 | SBFS44 | SBFT44 | 44 | 880 | 440 | 17.5 | 20.75 | – |
SAFS46 | SAFT46 | SBFS46 | SBFT46 | 46 | 920 | 460 | 19.1 | 22.68 | – |
SAFS48 | SAFT48 | SBFS48 | SBFT48 | 48 | 960 | 480 | 20.8 | 24.69 | – |
SAFS50 | SAFT50 | SBFS50 | SBFT50 | 50 | 1,000 | 500 | 22.6 | 26.79 | – |
SAFS52 | SAFT52 | SBFS52 | SBFT52 | 52 | 1,040 | 520 | 24.4 | 28.98 | – |
SAFS54 | SAFT54 | SBFS54 | SBFT54 | 54 | 1,080 | 540 | 26.4 | 31.25 | – |
SAFS56 | SAFT56 | SBFS56 | SBFT56 | 56 | 1,120 | 560 | 28.3 | 33.61 | – |
SAFS58 | SAFT58 | SBFS58 | SBFT58 | 58 | 1,160 | 580 | 30.4 | 36.05 | – |
SAFS60 | SAFT60 | SBFS60 | SBFT60 | 60 | 1,200 | 600 | 32.5 | 38.58 | – |
SAFS64 | SAFT64 | SBFS64 | SBFT64 | 64 | 1,280 | 640 | 37.0 | 43.90 | – |
SAFS66 | SAFT66 | SBFS66 | SBFT66 | 66 | 1,320 | 660 | 39.4 | 46.69 | – |
SAFS68 | SAFT68 | SBFS68 | SBFT68 | 68 | 1,360 | 680 | 41.8 | 49.56 | – |
SAFS70 | SAFT70 | SBFS70 | SBFT70 | 70 | 1,400 | 700 | 44.3 | 52.52 | – |
SAFS72 | SAFT72 | SBFS72 | SBFT72 | 72 | 1,440 | 720 | 46.9 | 55.56 | – |
SAFS74 | SAFT74 | SBFS74 | SBFT74 | 74 | 1,480 | 740 | 49.5 | 58.69 | – |
SAFS76 | SAFT76 | SBFS76 | SBFT76 | 76 | 1,520 | 760 | 52.2 | 61.90 | – |
SAFS78 | SAFT78 | SBFS78 | SBFT78 | 78 | 1,560 | 780 | – | 65.20 | – |
SAFS80 | SAFT80 | SBFS80 | SBFT80 | 80 | 1,600 | 800 | – | 68.59 | – |
SAFS82 | SAFT82 | SBFS82 | SBFT82 | 82 | 1,640 | 820 | – | 72.06 | – |
SAFS84 | SAFT84 | SBFS84 | SBFT84 | 84 | 1,680 | 840 | – | 75.62 | – |
SAFS86 | SAFT86 | SBFS86 | SBFT86 | 86 | 1,720 | 860 | – | 79.29 | – |
SAFS88 | SAFT88 | SBFS88 | SBFT88 | 88 | 1,760 | 880 | – | 83.00 | – |
SAFS90 | SAFT90 | SBFS90 | SBFT90 | 90 | 1,800 | 900 | – | – | – |
SAFS96 | – | SBFS96 | – | 96 | 1,920 | 960 | – | – | 75.13 |
SAFS100 | – | SBFS100 | – | 100 | 2,000 | 1,000 | – | – | 81.52 |
SAFS106 | – | SBFS106 | – | 106 | 2,120 | 1,060 | – | – | 91.59 |
SAFS110 | – | SBFS110 | – | 110 | 2,200 | 1,100 | – | – | 98.64 |
SAFS120 | – | SBFS120 | – | 120 | 2,400 | 1,200 | – | – | 117.39 |
SAFS130 | – | SBFS130 | – | 130 | 2,600 | 1,300 | – | – | 137.76 |
- Conform Standard: EN13411-3:2004, GB/T16762-2009, GB/T14737-2009;
- The nominal tensile strength for wire rope pattern series 6├Ч19(a) & 6├Ч37 (a) listed above were 1670 MPa (d<20mm, included) or 1770 MPa (d>20mm).
- Wire ropes used in each sling can be customized to apply for higher or lower workloads.
- Minimal Breaking workload for the listed wire rope slings is 5 times their working load limit.
- Soft loop sizes (A and B) are not alterable for SAFT and SBFT slings due to the usage of thimbles. Others can be customized if the listed loop sizes are not suitable.
>> Why choose JF Brand fiber core spliced wire rope slings:
There are some advantages of JF Brand fiber core spliced wire rope slings:
- Increased strength and durability: fiber core spliced wire rope slings are much stronger and more durable than traditional wire rope slings, as the fiber core provides added support.
- Reduced weight: fiber core spliced wire rope slings are lighter in weight than traditional wire rope slings, making them easier to transport and maneuver.
- Increased flexibility: fiber core spliced wire rope slings are more flexible than traditional wire rope slings, making them easier to work within tight spaces.
If you are in need of a strong, durable, and flexible wire rope sling, then a fiber core spliced wire rope sling is a perfect choice. With their many advantages, fiber core spliced wire rope slings are quickly becoming the preferred choice for many lifting and rigging applications. As well as, the increased strength and durability are offered by fiber core spliced wire rope slings.
