Choosing the Right Stainless Steel Wire Rope for Your Business

Choosing the right stainless steel wire rope is crucial for businesses that rely on strength, durability, and corrosion resistance in demanding environments. Whether you’re in marine, construction, aviation, or industrial manufacturing, selecting the best wire rope ensures safety, efficiency, and longevity. This guide will walk you through the key factors to consider, from material types and structural compositions to maintenance and supplier selection, helping you make an informed decision for your business.

I. Introduction

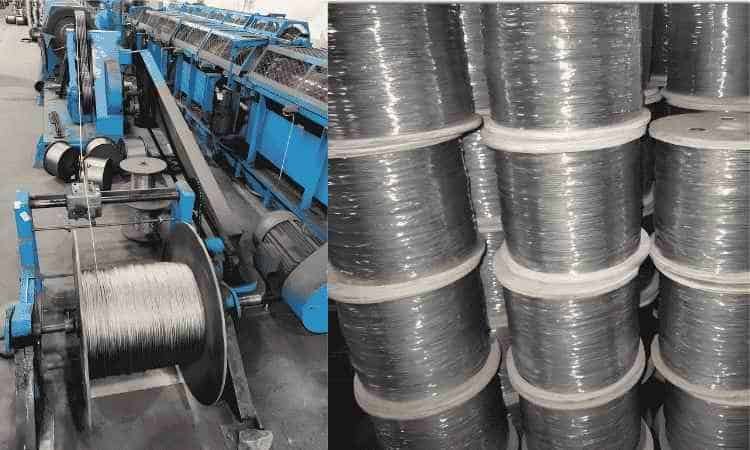

1. Overview of Stainless Steel Wire Rope

Stainless steel wire rope is a high-performance product made from premium-grade stainless steel materials such as AISI304 and AISI316, utilizing precise wire drawing and stranding processes. These high-quality raw materials endow the wire rope with exceptional corrosion resistance, high-temperature resistance, and low-temperature resistance, enabling it to maintain stable performance under extreme environmental conditions. Whether exposed to high temperatures, low temperatures, or corrosive media, stainless steel wire rope exhibits outstanding durability and reliability, making it widely used in industries such as petrochemicals, aviation, automotive, fisheries, precision instruments, and architectural decoration.

During the manufacturing process, stainless steel wire rope undergoes electrolytic polishing treatment, which enhances its smooth and bright surface. This not only improves its aesthetic appearance but also significantly strengthens its corrosion resistance, extending its service life. Additionally, through low-temperature treatment technology, the internal structure of the wire rope is further optimized, resulting in higher strength and toughness to withstand greater loads and complex working conditions. These features make stainless steel wire rope perform exceptionally well in applications requiring high strength, high durability, and high safety.

The diverse characteristics of stainless steel wire rope allow it to meet the needs of various industries. For example, in the petrochemical industry, it effectively resists chemical media corrosion; in aviation and automotive fields, its high strength and lightweight properties are particularly advantageous; in the fishing industry, it withstands seawater corrosion; and in architectural decoration, its aesthetics and durability make it a preferred choice. Whether used for heavy industrial equipment or precision instruments, stainless steel wire rope offers reliable performance support.

In summary, stainless steel wire rope has become an indispensable material in modern industries due to its excellent corrosion resistance, temperature resistance, high strength, and aesthetic appearance. Through advanced manufacturing processes and stringent quality control, stainless steel wire rope not only meets diverse application needs but also provides users with a long-lasting and stable service experience, offering strong support for efficient and safe operations across various industries.

2. Importance of Choosing the Right Stainless Steel Wire Rope

Selecting the appropriate stainless steel wire rope is crucial, as it directly impacts the operational efficiency, safety, and service life of the equipment. Stainless steel wire ropes play an irreplaceable role in petrochemical, aviation, automotive, fishing, and architectural decoration industries. The performance of the wire rope directly determines the stability and reliability of the entire system.

Firstly, choosing the right wire rope ensures stable operation of the equipment in extreme environments. For example, under high temperatures, low temperatures, or corrosive media, high-quality AISI304 and AISI316 wire ropes can effectively resist corrosion and temperature changes, avoiding unexpected downtime or safety accidents caused by material failure. Additionally, wire ropes that have undergone electrolytic polishing and low-temperature treatment not only have smoother surfaces and stronger corrosion resistance but can also withstand higher loads, which is particularly important for applications requiring high strength and high durability.

Furthermore, selecting the right wire rope can significantly reduce maintenance costs and replacement frequency. Although high-quality wire ropes may have higher initial investment costs, their long-term usage costs are lower, minimizing economic losses caused by frequent replacements or repairs. Additionally, using the appropriate wire rope improves work efficiency by preventing production interruptions caused by rope breakage or failure, ensuring continuous production line operation. In terms of safety, choosing wire ropes that meet industry standards and actual work conditions can effectively reduce the risk of accidents and protect the safety of workers.

Therefore, when selecting stainless steel wire ropes, factors such as working environment, load requirements, safety standards, and cost-effectiveness must be comprehensively considered. For example, in marine environments, priority should be given to AISI316 wire ropes with higher corrosion resistance; in high-strength operations, low-temperature treated wire ropes with higher strength should be selected. Through scientific selection and standardized maintenance, stainless steel wire ropes can not only meet diverse application needs but also provide enterprises with long-term stable performance support, ensuring safe production and efficient operation. In summary, selecting the right stainless steel wire rope is a critical step in ensuring equipment safety, improving production efficiency, and reducing operational costs, and it is also an important guarantee for enterprises to achieve sustainable development.

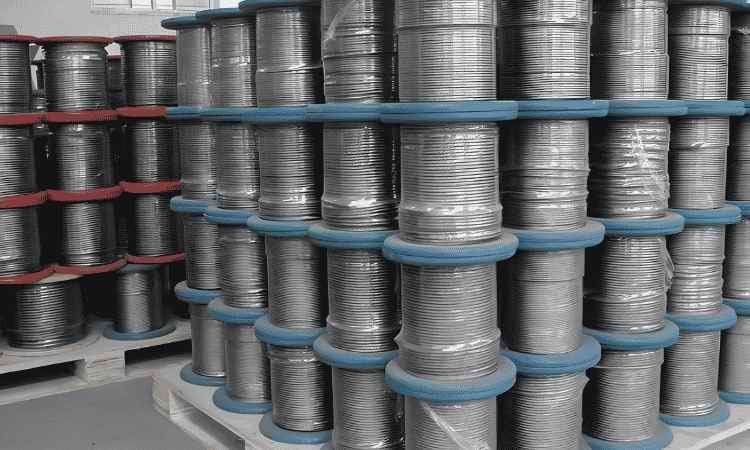

3. Purpose of This Article

The purpose of this article is to provide enterprises with systematic, authoritative, and comprehensive professional guidance in making critical decisions regarding the selection of stainless steel wire ropes. In modern enterprises’ complex production and operation systems, stainless steel wire rope, as a key component widely used in various equipment and projects, is closely related to the steady performance, reliability, and safety of equipment operations. Moreover, it profoundly affects the overall progress, cost control, and final economic and social benefits of project implementation.

This article will conduct an in-depth analysis of the key considerations in the selection process of stainless steel wire ropes. On the structural level, the number of strands, the design of lay direction, and the contact state between strands and wires significantly impact the tensile strength, bending flexibility, anti-rotation performance, and anti-extrusion ability of the wire rope, according to mechanical design principles. Different application scenarios, such as hoisting, elevator lifting, cableway traction, etc., have specific requirements for wire rope structure and must be accurately matched according to actual working conditions.

Determining the size and specification of the wire rope is a complex task based on precise mechanical calculations and engineering experience. Static load, dynamic load, impact load, and other actual bearing needs must be strictly calculated, and the appropriate wire rope diameter and cross-sectional area must be accurately designed according to safety factor standards. If the diameter is too large, it will cause material waste and increased costs, while too small a diameter may fail to meet the load requirements, causing severe safety hazards.

The material grade, determined by the alloy composition system, is one of the core factors affecting the performance of the wire rope. Different alloy elements such as chromium (Cr), nickel (Ni), molybdenum (Mo), etc., directly determine key indicators such as corrosion resistance, wear resistance, oxidation resistance, and fatigue life of the wire rope. Different industrial environments such as chemical, marine, and food processing require the selection of corresponding material grades to ensure the long-term stable operation of the wire rope under complex working conditions.

Environmental conditions, including humidity, pH value of the medium, temperature extremes, ultraviolet radiation, etc., exert a continuous influence on the wire rope’s performance throughout its life cycle. According to corrosion electrochemistry and material thermophysics theories, different environmental factors affect the performance of wire ropes through different physical and chemical mechanisms. For example, in high-humidity and strong acid-alkaline environments, the wire rope is prone to electrochemical corrosion; in high-temperature environments, the material strength and toughness may degrade; and in low-temperature environments, the wire rope may become brittle. Therefore, it is necessary to fully consider the impact of environmental factors when selecting wire ropes and establish scientific protection and maintenance strategies.

Through an in-depth analysis of the above core elements, this article is dedicated to helping enterprises establish a scientific decision-making model for wire rope selection, accurately identify their actual needs in different application scenarios, and make optimal selection decisions based on a multi-objective optimization model. This approach aims to provide enterprises with stable, efficient, and safe technical support and decision-making assurance for their production and operation.

II. Factors to Consider When Choosing Stainless Steel Wire Rope

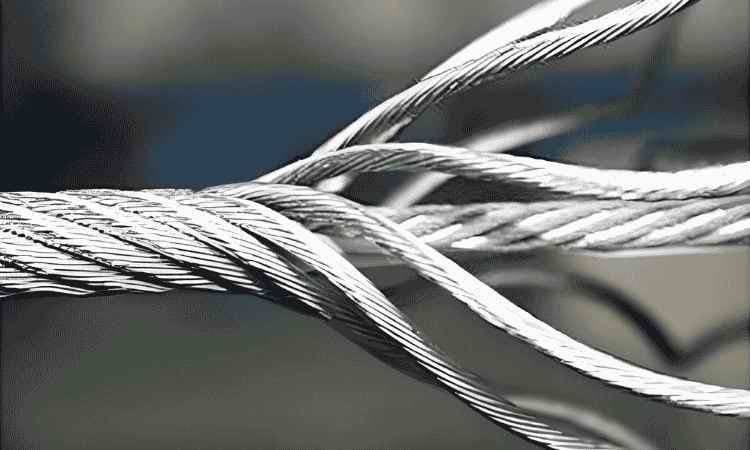

1. Material Grades

The material grade of stainless steel wire rope plays a decisive role in its performance, service life, and application range. Generally, stainless steel wire ropes are made from two primary material grades: AISI304 and AISI316.

• AISI304 (Standard Stainless Steel): This material is composed primarily of chromium (18%) and nickel (8%), providing good corrosion resistance, oxidation resistance, and mechanical strength. It is widely used in construction, industrial manufacturing, and general-purpose lifting operations. However, AISI304 stainless steel is susceptible to corrosion in highly saline or chemically harsh environments.
• AISI316 (Marine Grade Stainless Steel): Compared to AISI304, AISI316 contains an additional 2-3% molybdenum, significantly enhancing its corrosion resistance, particularly in chloride or marine environments. This material is widely used in offshore platforms, marine ships, aquaculture, and other environments where the rope is frequently exposed to seawater or chemicals.

Choosing the Right Material:

• If the wire rope is used in standard indoor environments, general construction sites, or low-corrosion areas, AISI304 is an economical and practical choice.
• In harsh environments with high humidity, seawater, or chemical exposure, AISI316 should be prioritized to ensure long-term performance and durability.

The correct selection of material grade directly affects the lifespan, operational stability, and maintenance costs of the wire rope. Incorrect material selection may lead to premature corrosion, mechanical failure, and significant operational losses.

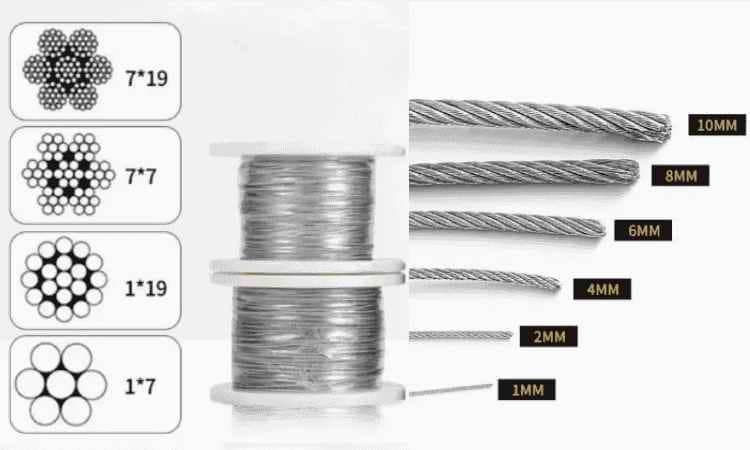

2. Wire Rope Structure

The structural design of a stainless steel wire rope consists of three primary components: the core, the strands, and the wires. Different structural designs directly influence the rope’s load-bearing capacity, bending fatigue resistance, and wear resistance.

• Core Types:
  • Steel Core (IWRC – Independent Wire Rope Core): This design offers the highest strength, low elongation, and strong resistance to crushing. It is ideal for heavy lifting and high-tension applications such as cranes, elevators, and hoists.
  • Fiber Core (FC – Fiber Core): Offers higher flexibility but lower strength. It is suitable for applications requiring greater bendability, such as fishing nets, architectural designs, and marine rigging.
• Strand Types:
  • 7×7 (7 strands of 7 wires): Moderate flexibility and medium strength. Widely used in aircraft cables, control cables, and medium-duty lifting operations.
  • 7×19 (7 strands of 19 wires): Highly flexible and capable of handling high loads. Frequently used in crane hoists, winches, and marine lifting operations.
  • 1×19 (1 strand of 19 wires): Extremely high tensile strength but limited flexibility. Common in architectural cables, balustrades, and tension structures.

Choosing the Right Structure:

• For heavy industrial applications, choose steel core with a 7×19 structure.
• For lightweight applications, such as garden fences or decorative projects, choose fiber core with a 7×7 structure.
• For maximum load-bearing capacity, such as lifting heavy machinery, use steel core with a 1×19 structure.

3. Diameter and Load Capacity

The diameter of the stainless steel wire rope is directly related to its load-bearing capacity and safety performance. Generally, a larger diameter provides higher load capacity and resistance to breakage, but it also increases weight and material costs.

• Diameter Range: Typically, wire ropes range from 1mm to 40mm, depending on the intended application.
• Breaking Strength: The breaking strength (measured in kilonewtons, kN) indicates the maximum load a rope can withstand before breaking. Higher-strength ropes are used in industrial lifting, towing, and structural load-bearing.

Calculation Formula (approximate):

Breaking Load=Nominal Strength per mm2×Cross-sectional Area\text{Breaking Load} = \text{Nominal Strength per mm}^2 \times \text{Cross-sectional Area}Breaking Load=Nominal Strength per mm2×Cross-sectional Area

Selection Example:

• For a 2mm diameter, 7×7 structure, AISI316 rope used in a marine environment, the working load may be around 350kg with a breaking load of 1.4 tons.
• For a 12mm diameter, 7×19 structure, AISI304 rope used in construction, the working load may reach 6 tons.

Choosing the correct diameter ensures that the wire rope does not overload, break, or deform under high tension.

4. Corrosion Resistance

The corrosion resistance of stainless steel wire rope is crucial for ensuring long-term performance, especially in harsh environments such as coastal areas, chemical plants, and industrial processing plants.

• AISI304: Offers basic corrosion resistance in non-saline environments.
• AISI316: Provides superior corrosion resistance, especially in seawater, chloride, and acidic environments.

Key Environmental Factors Affecting Corrosion:

• Humidity: In humid environments, surface oxidation accelerates corrosion.
• Salt Spray (Chloride): In marine or coastal environments, chloride accelerates pitting and crevice corrosion.
• Chemical Exposure: In chemical plants, exposure to acids, alkalis, and solvents can corrode stainless steel surfaces.

Recommendation:

• For outdoor, marine, or chemical environments, use AISI316.
• For dry, indoor, or general-purpose applications, AISI304 is suitable.

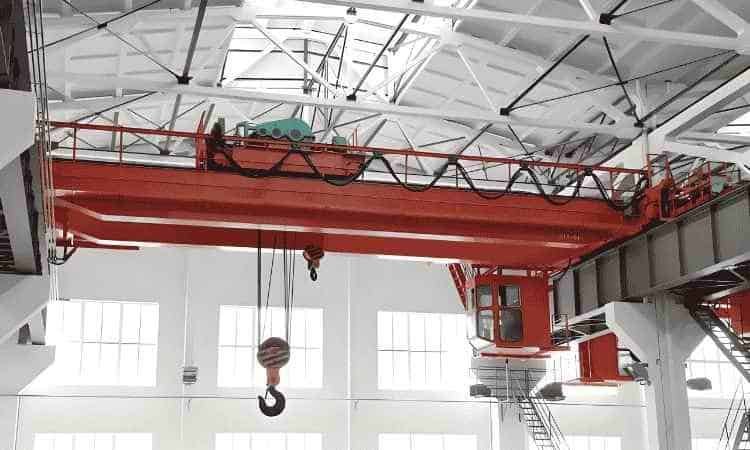

5. Fatigue Resistance

Fatigue resistance refers to the rope’s ability to withstand repeated bending, flexing, and mechanical stress without fracturing.

• Higher fatigue resistance: Required for elevators, cranes, winches, and high-cycle use applications.
• Lower fatigue resistance: Acceptable for static or low-movement applications.

Improving fatigue resistance:

• Use 7×19 structure for high bending applications.
• Avoid sharp bending angles or sudden load impacts.
• Apply regular lubrication to reduce friction and wear.

6. Cost Efficiency

While AISI316 offers superior performance, it is typically 15-25% more expensive than AISI304. Therefore, balancing cost and performance is essential.

Cost-Efficiency Recommendations:

• For heavy industrial use, invest in AISI316 steel core.
• For general-purpose, indoor use, AISI304 fiber core provides a cost-effective solution.

III. Quality Control and Testing Standards for Stainless Steel Wire Rope

Ensuring the safety, durability, and load capacity of stainless steel wire rope requires strict quality control (QC) procedures and testing standards throughout the manufacturing process. This section outlines the key quality control measures and internationally recognized testing standards that guarantee the reliability of stainless steel wire rope.

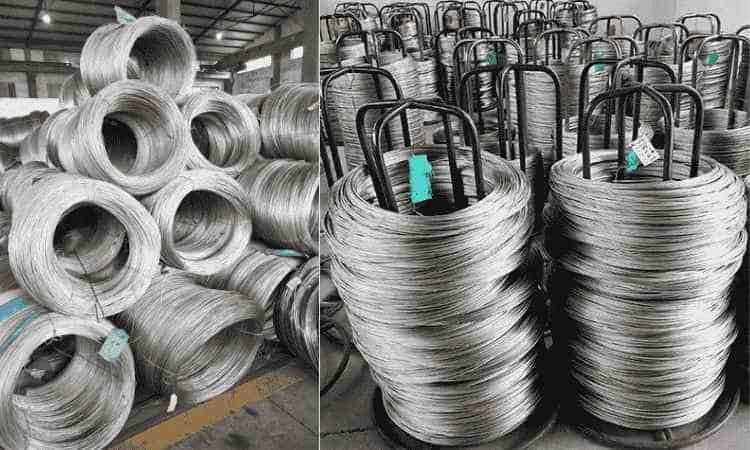

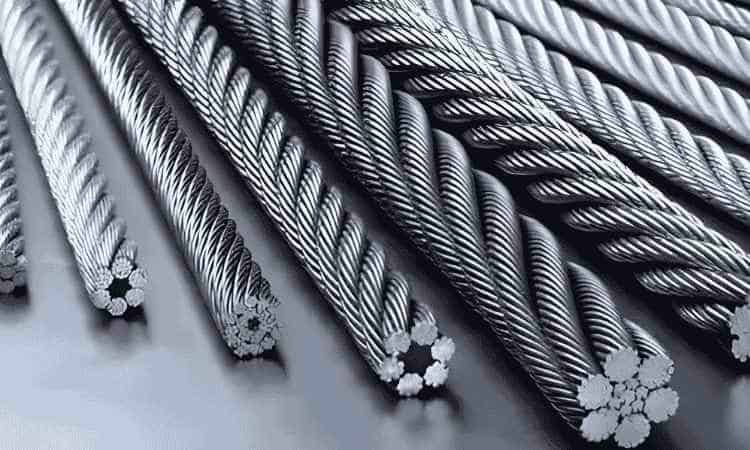

1. Raw Material Inspection

The first critical step in manufacturing stainless steel wire rope is to inspect the raw materials, specifically the stainless steel wires used in production. Ensuring the quality of raw materials prevents structural defects and early failure in the final product.

Inspection Focus:

• Material Grade Verification: Use a spectrometer or chemical composition analysis to verify whether the material conforms to AISI304 or AISI316 standards.
• Wire Diameter Tolerance: Measure the diameter of individual wires to ensure they fall within the specified tolerance range (e.g., ±0.02mm).
• Surface Finish: Inspect the surface of the wires for rust, pitting, scratches, or other visible defects.
• Tensile Strength Test: Test the tensile strength of raw wires to ensure they meet the minimum strength requirements.

Key Standards Followed:

• ASTM A276 (Standard Specification for Stainless Steel Bars and Shapes)
• EN 10204 3.1/3.2 (Material Test Certification for Traceability)
• ISO 9001 (Quality Management System)

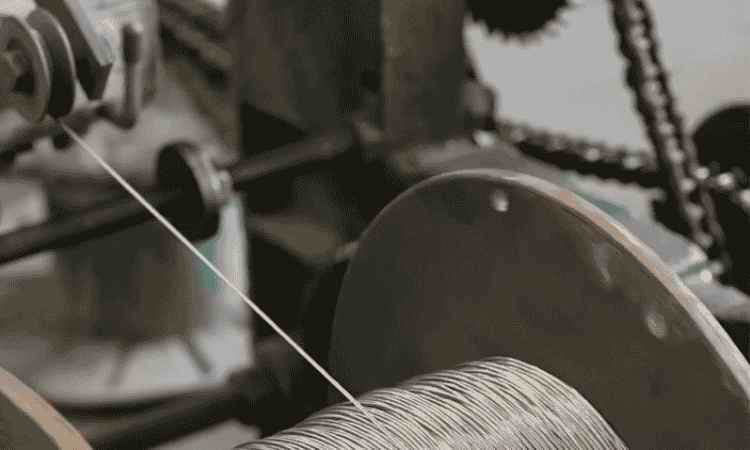

2. Wire Drawing Process Inspection

The wire drawing process involves reducing the diameter of stainless steel rods by pulling them through a series of dies, creating high-tensile stainless steel wires. Maintaining uniform diameter and surface finish during this process is critical.

Quality Control Measures:

• Diameter Measurement: Regularly measure the diameter of the drawn wires using a micrometer to ensure dimensional accuracy.
• Surface Quality: Inspect for scratches, rust, or deformation caused by the drawing process.
• Work Hardening Control: Monitor the tensile strength increase after drawing, ensuring the material retains its desired mechanical properties.

Common Defects Identified:

• Wire Diameter Deviation: Out-of-specification diameters may result in weak points in the rope.
• Surface Scratches: Surface damage may reduce fatigue resistance and increase corrosion susceptibility.
• Hardness Variation: Excessive work hardening may lead to reduced flexibility and increased brittleness.

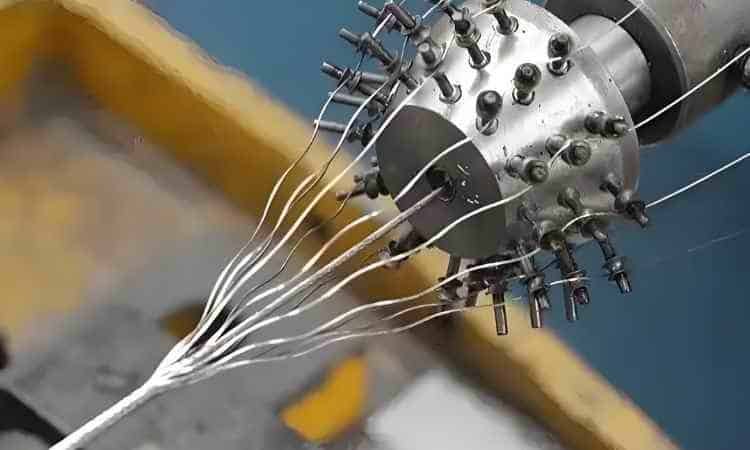

3. Stranding Process Inspection

Stranding is the process where individual stainless steel wires are twisted together to form strands, and then multiple strands are twisted around a core to form the complete wire rope.

Quality Control Measures:

• Strand Lay Length Measurement: Measure the lay length (the distance a strand takes to complete one full revolution around the core) to ensure consistency.
• Tension Control During Stranding: Maintain consistent tension on each strand to prevent uneven stress distribution in the final product.
• Surface Quality Inspection: Check for kinks, loose wires, or wire crossovers during stranding.

Inspection Tools:

• Tensile Strength Tester: Ensures the strands maintain required tensile strength.
• X-ray Imaging (if available): Detects internal strand defects, such as voids or overlaps.

Industry Standards:

• ISO 4344 (Steel Wire Rope for Lifting Applications)
• EN 12385-4 (Steel Wire Ropes – Safety)

4. Pre-Tensioning and Stress Relieving

Pre-tensioning (also called pre-stretching) is a process that applies a controlled tensile load to the wire rope before final packaging. This reduces initial stretch during use and enhances the rope’s performance.

Benefits of Pre-Tensioning:

• Reduces Initial Elongation: Eliminates slack during first-time use.
• Increases Stability: Ensures uniform tension distribution among strands.
• Enhances Fatigue Life: Reduces internal friction between wires.

Testing Parameters:

• Load Capacity Test: Apply a specified percentage of the rated breaking strength (e.g., 40-60%) to stabilize the strands.
• Elongation Measurement: Measure the percentage of stretch and ensure it is within acceptable limits.

Common Quality Issues Detected:

• Uneven Strand Tension: Can lead to premature failure under load.
• Over-Stretching: Weakens the mechanical strength of the rope.

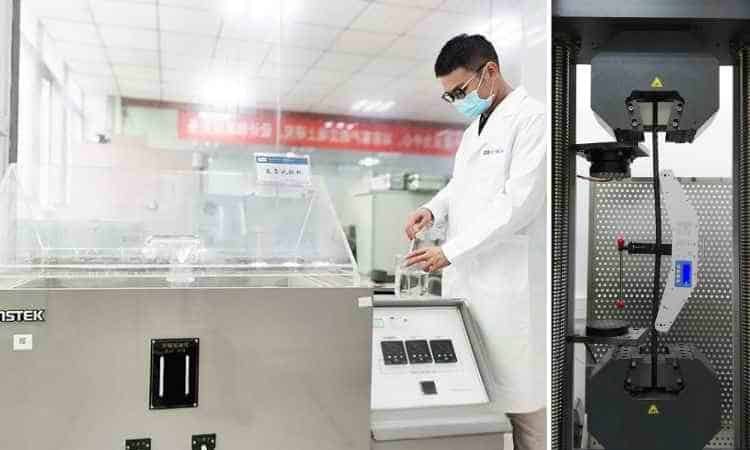

5. Mechanical Strength Testing (Tensile Test)

Tensile strength testing is one of the most critical quality control measures for stainless steel wire rope. This test measures the maximum load capacity of the wire rope before breaking.

Testing Methods:

• Straight Pull Tensile Test: A segment of the wire rope is pulled until it breaks. The breaking force must meet or exceed the minimum breaking load (MBL) specified.
• Elongation Test: Measures the percentage of stretch under tension.
• Load Retention Test: Applies continuous load for a specified period to evaluate the long-term strength.

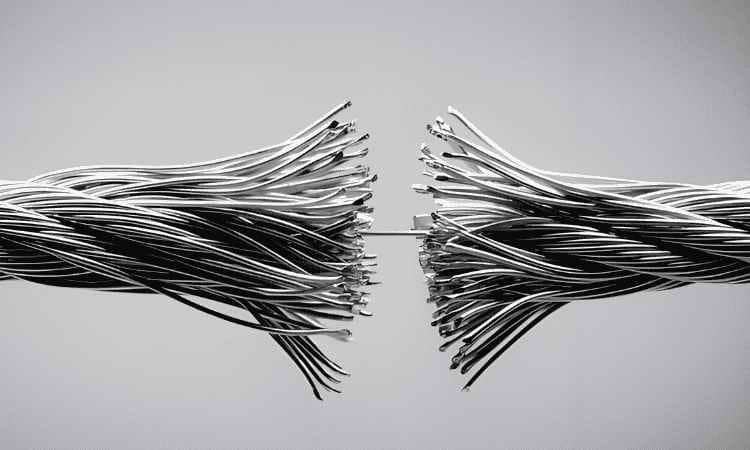

Breaking Load Standard:

• 7×7 Structure: Should have a breaking load of approximately 1.4 tons for a 2mm diameter rope.
• 7×19 Structure: Should have a breaking load of approximately 1.8 tons for a 2mm diameter rope.

Reference Standards:

• ISO 2408 (Steel Wire Rope – Breaking Force and Mechanical Properties)
• ASTM A931 (Testing Wire Rope Tensile Strength)

6. Surface Finish and Corrosion Resistance Test

As stainless steel wire rope is widely used in harsh environments, it is crucial to ensure high corrosion resistance.

Corrosion Tests:

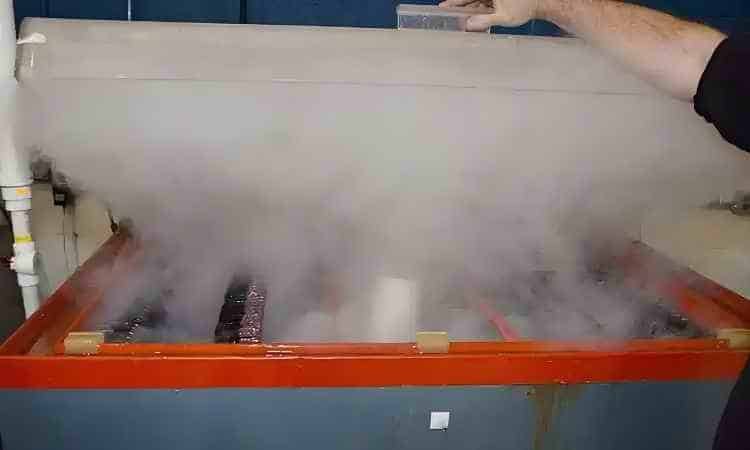

• Salt Spray Test (ASTM B117): Expose the rope to a saline atmosphere for 48 to 240 hours to simulate marine environments and assess corrosion resistance.
• Acid Corrosion Test: Submerge the rope in diluted acid to test resistance against industrial chemical exposure.
• Surface Passivation Test: Ensure the surface layer has formed a passive chromium oxide film to prevent rust.

Acceptable Results:

• No visible rust after 72 hours in salt spray testing for AISI316 wire rope.
• No surface pitting or discoloration under acid corrosion test.

Failure Indicators:

• Red Rust Spots: Indicates chromium layer failure.
• Pitting Corrosion: Caused by chloride ions in marine environments.

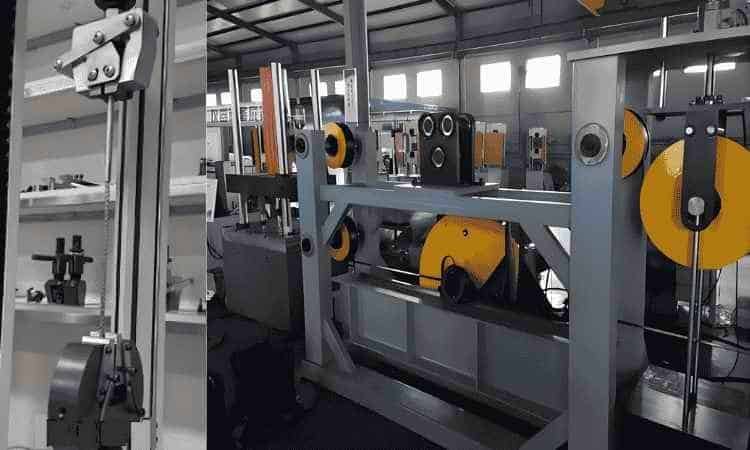

7. Final Product Inspection and Packaging

Before packaging and shipping, a final comprehensive inspection ensures the product meets all mechanical and visual quality standards.

Inspection Process:

• Visual Inspection: Check for kinks, frayed wires, or strand separation.
• Length Measurement: Ensure the delivered length matches the order specification.
• Coil Tension Test: Verify that the wire rope maintains tension and does not unwind uncontrollably.
• Product Labeling: Verify the product label contains accurate information, including:
  • Material Grade (AISI304/AISI316)
  • Structure (7×7, 7×19, 1×19)
  • Diameter and Length
  • Minimum Breaking Load (MBL)

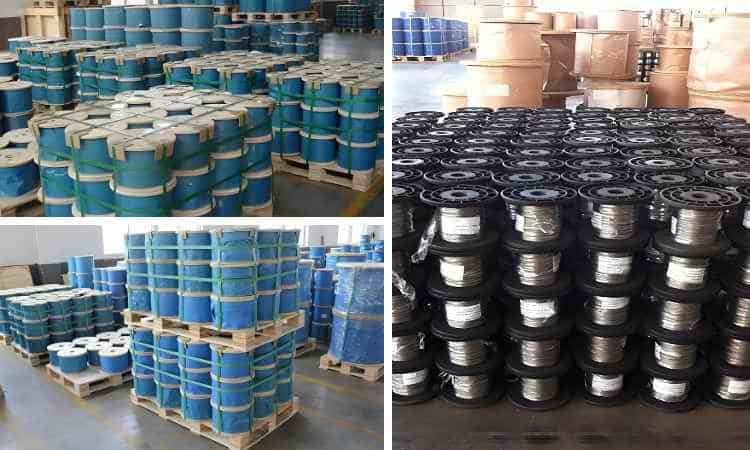

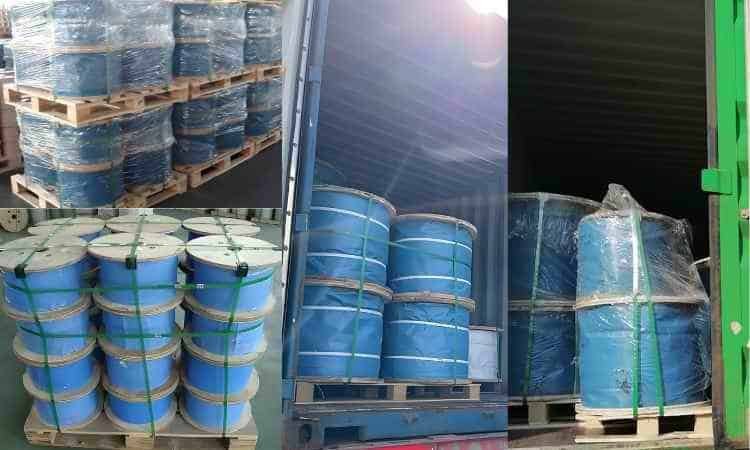

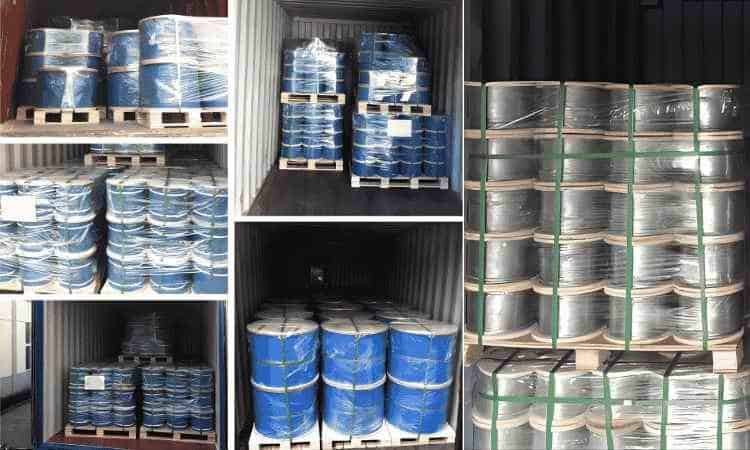

Packaging Standards:

• Plastic Reel or Wooden Spool: Prevents coil deformation.
• Moisture-Proof Wrapping: Prevents corrosion during transit.
• Product Identification Tag: Includes product grade, structure, diameter, and breaking strength.

8. Certification and Compliance

Finally, stainless steel wire ropes must be certified to meet both international and customer-specific standards. The certification guarantees product traceability, quality assurance, and international compliance.

Typical Certifications Provided:

• Mill Test Certificate (MTC): Confirms the chemical composition, mechanical properties, and manufacturing origin.
• EN 10204 3.1/3.2 Certificate: Provides full traceability and independent third-party verification (if required).
• CE Certification (for EU markets): Ensures compliance with European safety and quality regulations.

IV. Application Scenarios of Stainless Steel Wire Rope

Stainless steel wire ropes are widely used in various industries due to their high strength, corrosion resistance, and flexibility. This section outlines the key application scenarios for stainless steel wire ropes, highlighting the specific types of ropes best suited for each application.

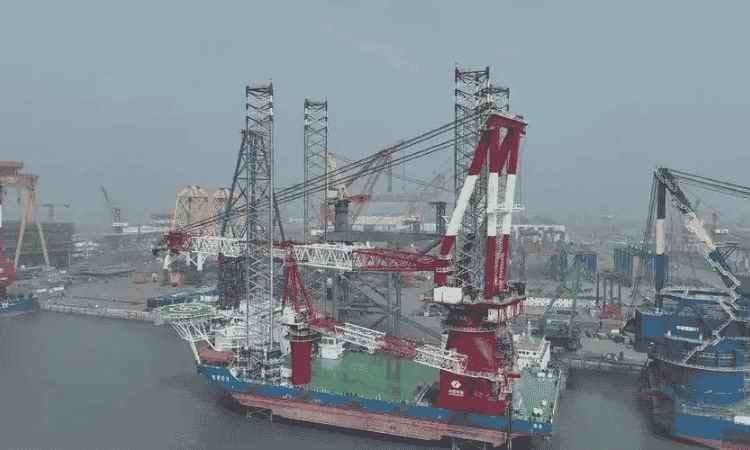

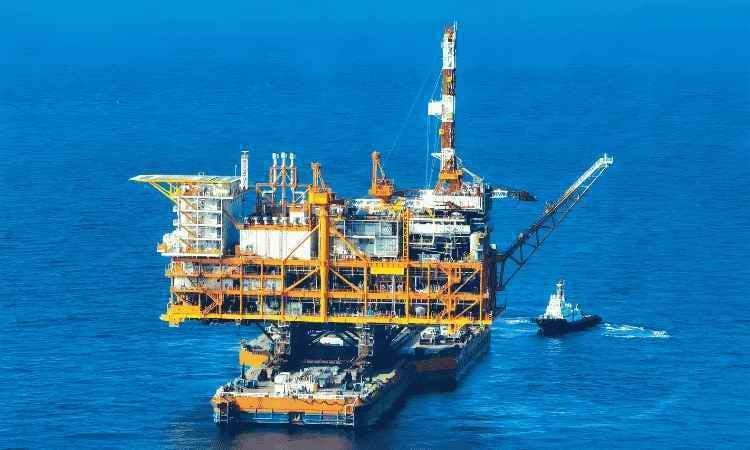

1. Marine and Offshore Industry

The marine and offshore industry relies heavily on stainless steel wire ropes due to their exceptional corrosion resistance in saltwater environments.

Common Applications:

• Mooring Lines: Used for securing ships, vessels, and platforms to docks or seabeds.
• Rigging and Lifting: Hoisting heavy loads on ships, oil platforms, and dockyards.
• Fishing Equipment: Stainless steel wire ropes are commonly used in trawl nets, fishing lines, and buoys.
• Deck Railings: Stainless steel cables are frequently used as guardrails on yachts, cruise ships, and offshore platforms.

Recommended Wire Rope Structures:

• 7×19 Structure: Offers flexibility for lifting, rigging, and deck railing applications.
• 1×19 Structure: Provides high tensile strength and minimal stretch, ideal for marine mast stays and rigging cables.
• 316 Stainless Steel: Offers superior corrosion resistance against seawater and chloride exposure.

Why SS Wire Rope?

• Resistant to rust and corrosion in saltwater environments.
• Durable under constant mechanical stress and heavy loads.

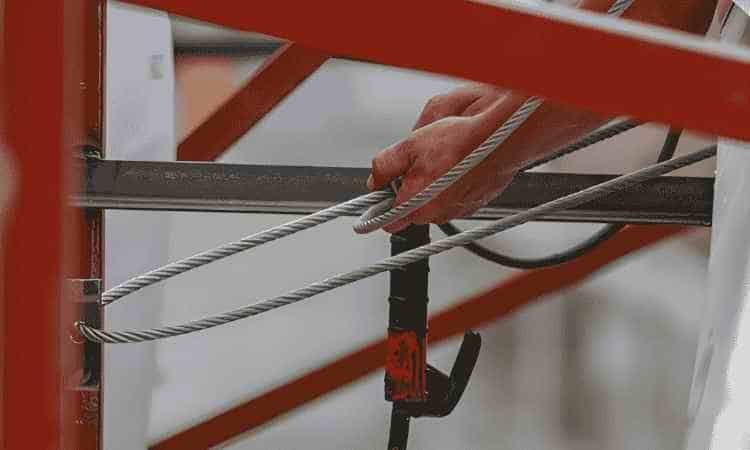

• Minimal maintenance required.

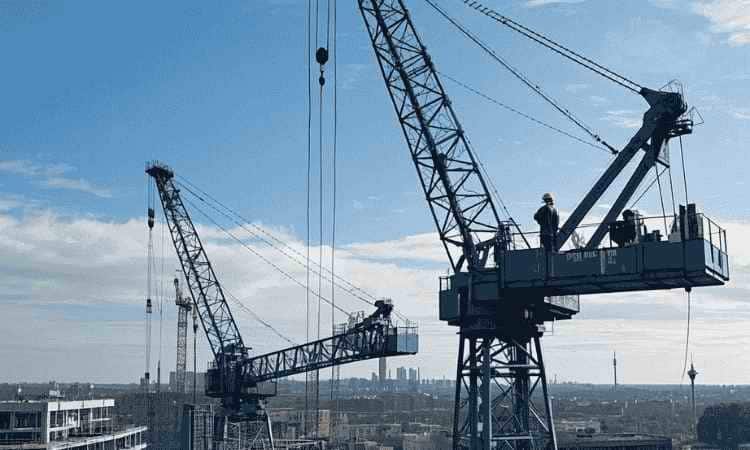

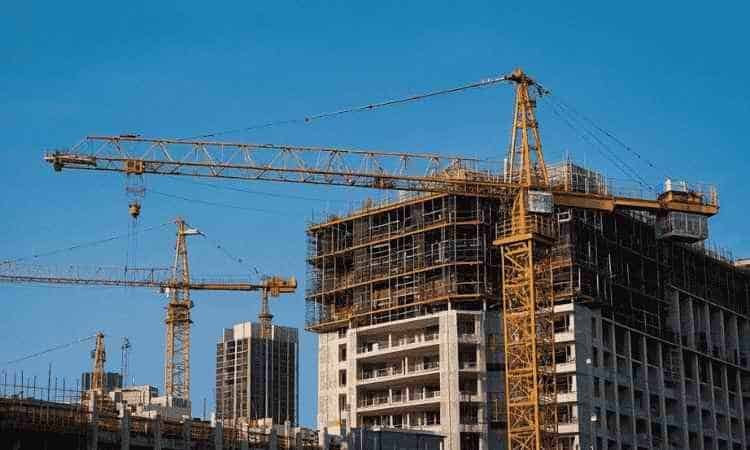

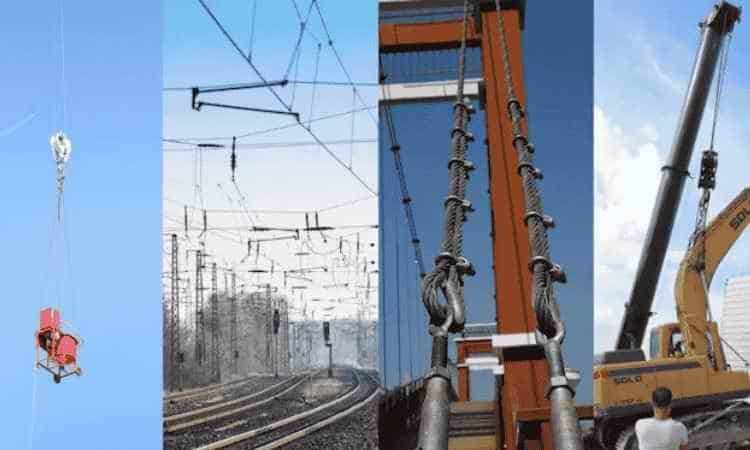

2. Construction and Architecture Industry

Stainless steel wire ropes play a key role in modern architecture and construction due to their aesthetic appeal, strength, and weather resistance.

Common Applications:

• Suspension Bridges: Used as primary suspension cables or balustrade railings.
• Glass Curtain Walls: Stainless steel cables provide structural support for glass panels in modern buildings.
• Balustrade and Handrails: Stainless steel wire ropes are widely used in stair railings, balconies, and fencing systems.
• Façade Greening: Used to support climbing plants on building exteriors, enhancing visual appeal.

Recommended Wire Rope Structures:

• 1×19 Structure: Offers high tensile strength and minimal stretch, ideal for structural and balustrade applications.
• 7×7 Structure: Provides a balance between strength and flexibility, suitable for handrails and glass panel supports.
• 316 Stainless Steel: Ensures high resistance to corrosion and environmental factors.

Why SS Wire Rope?

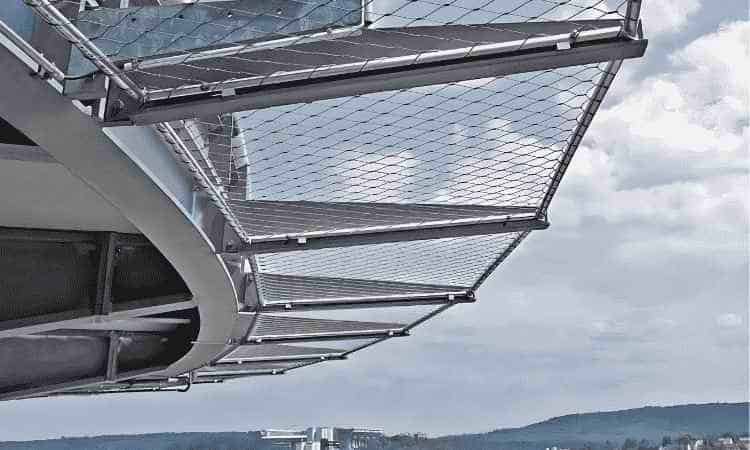

• Enhances aesthetic appeal in modern architectural designs.
• Withstands outdoor exposure and harsh weather conditions.
• Provides long-lasting structural support.

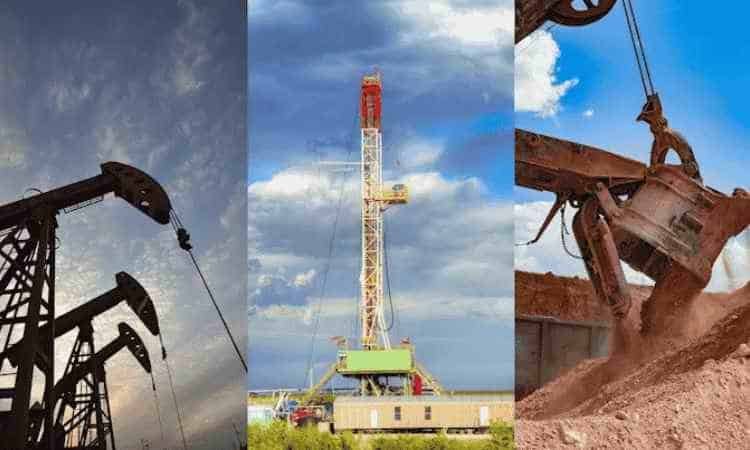

3. Industrial Lifting and Hoisting Industry

In industrial settings, stainless steel wire ropes are critical for lifting, pulling, and material handling tasks. Their high tensile strength and flexibility make them ideal for heavy-duty operations.

Common Applications:

• Overhead Cranes and Hoists: Used in factories, shipyards, and construction sites for lifting heavy loads.
• Elevators and Hoists: Stainless steel ropes are used as traction ropes in elevators and lifting platforms.
• Winches and Pulley Systems: Widely used in industrial and marine winches for material handling.

Recommended Wire Rope Structures:

• 7×19 Structure: Offers high flexibility, making it suitable for dynamic lifting applications.
• 6×19+FC Structure (Fiber Core): Provides excellent shock absorption and load distribution in lifting applications.
• 316 Stainless Steel: Recommended for lifting operations in corrosive environments.

Why SS Wire Rope?

• High tensile strength ensures heavy-load lifting capacity.
• Excellent fatigue resistance under repetitive use.
• Minimal maintenance and long service life.

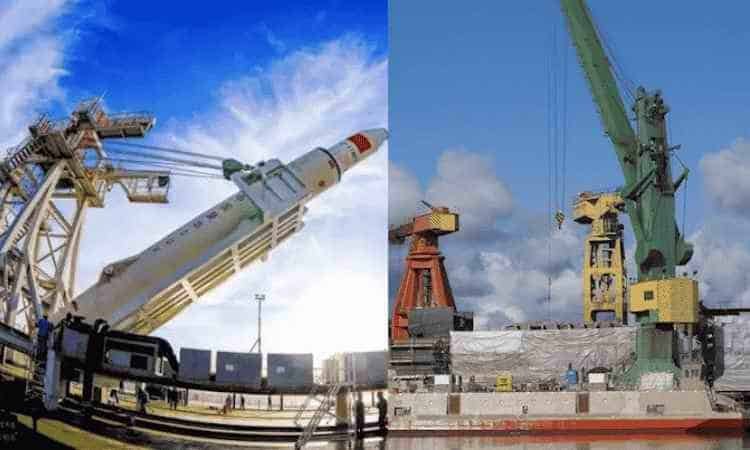

4. Automotive and Aviation Industry

The automotive and aviation industries often require strong and lightweight wire ropes for control and operational mechanisms.

Common Applications:

• Aircraft Control Cables: Used in airplane control systems, such as ailerons, rudders, and elevators.
• Winch Cables in Aircraft Hangars: Used for pulling or hoisting aircraft for maintenance and storage.
• Automotive Handbrake Cables: Stainless steel wire ropes are often used in car braking systems for handbrake operation.

Recommended Wire Rope Structures:

• 7×7 Structure: Provides high tensile strength with sufficient flexibility, ideal for control cables.
• 7×19 Structure: Offers higher flexibility, making it suitable for aircraft control systems.
• 304 Stainless Steel: Provides excellent strength and corrosion resistance for indoor automotive use.

Why SS Wire Rope?

• Lightweight but extremely strong.
• Durable under high-tension applications.
• Corrosion-resistant for long-term reliability.

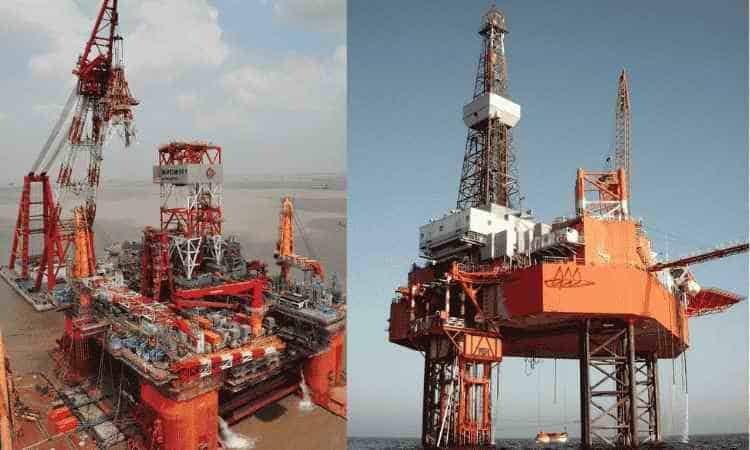

5. Mining and Oilfield Industry

The mining and oilfield industries operate in harsh environments where heavy lifting, dragging, and tensioning are required. Stainless steel wire ropes provide durability and resistance to extreme weather, moisture, and chemicals.

Common Applications:

• Drilling Rig Lines: Used in oil rigs to hoist and lower drilling equipment.
• Conveyor Belt Systems: Used to drive and support large conveyor belts in mining operations.
• Anchor Cables: Stainless steel cables are used to anchor offshore drilling platforms and mining structures.

Recommended Wire Rope Structures:

• 6×19+IWRC (Independent Wire Rope Core): Provides higher strength and durability for mining and drilling applications.
• 7×19 Structure: Offers better flexibility for handling and lifting heavy loads.
• 316 Stainless Steel: Provides superior corrosion resistance in offshore drilling and mining environments.

Why SS Wire Rope?

• Withstands harsh environmental conditions.
• Handles heavy loads without structural failure.
• Resistant to chemical corrosion and rust.

6. Safety and Rescue Operations

In safety and rescue operations, stainless steel wire ropes are critical for saving lives and lifting heavy objects in emergency situations.

Common Applications:

• Rescue Hoists and Helicopter Winches: Used to lift people or heavy loads during emergency evacuations.
• Firefighting Equipment: Wire ropes are commonly used in high-rise rescue operations.
• Safety Harness and Fall Protection: Stainless steel cables are often used in fall protection systems in high-risk work environments.

Recommended Wire Rope Structures:

• 7×19 Structure: Offers high flexibility and durability for rescue operations.
• 304 Stainless Steel: Provides strength and corrosion resistance in challenging environments.

Why SS Wire Rope?

• Ensures maximum safety under high-tension loads.
• Corrosion-resistant for outdoor and emergency operations.
• Lightweight but incredibly strong.

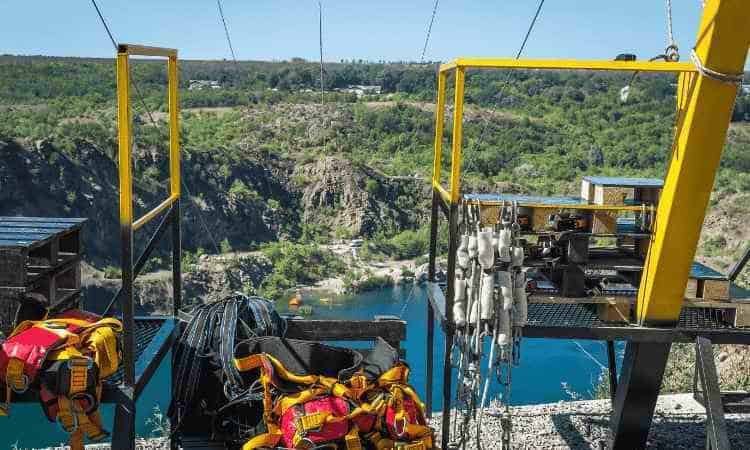

7. Sports and Entertainment Industry

The sports and entertainment industry often uses stainless steel wire ropes for performance rigging, sports equipment, and adventure facilities.

Common Applications:

• Stage Rigging Systems: Used in concert stages, theaters, and live event productions for suspending lights, screens, and equipment.
• Zip Lines and Rope Courses: Stainless steel cables are widely used in adventure parks and recreational activities.
• Sports Nets and Boundary Cables: Stainless steel cables are used in stadium fencing and net boundary systems.

Recommended Wire Rope Structures:

• 7×19 Structure: Provides maximum flexibility and durability.
• 1×19 Structure: Offers minimal stretch and maximum strength.
• 316 Stainless Steel: Ensures superior corrosion resistance.

Why SS Wire Rope?

• Provides maximum safety and durability.
• Handles dynamic loads and repeated stress.
• Resistant to rust and weather exposure.

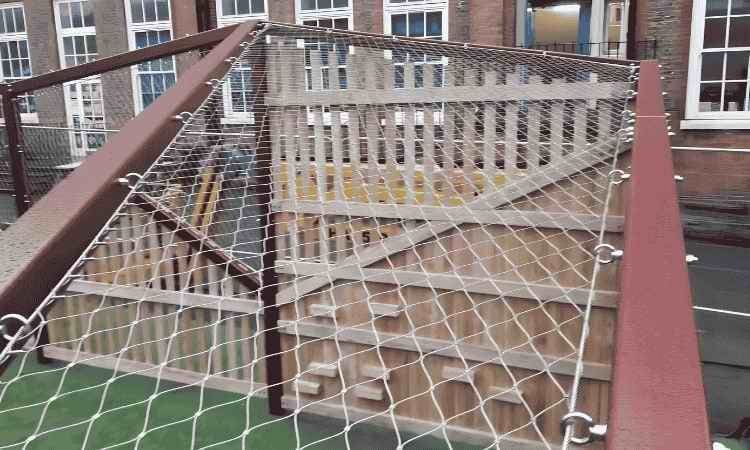

8. Home and Outdoor Applications

In everyday residential and outdoor settings, stainless steel wire ropes are often used for decoration, fencing, and support structures.

Common Applications:

• Garden Trellis and Plant Support: Used to support climbing plants and garden trellises.
• Outdoor Railing and Fence: Stainless steel cables provide aesthetic appeal and durable fencing solutions.
• Shade Sails and Canopies: Used to secure and tension shade sails in outdoor settings.

Recommended Wire Rope Structures:

• 1×19 Structure: Provides excellent strength and low stretch for tensioning applications.
• 7×7 Structure: Offers a balance of strength and flexibility for home applications.
• 316 Stainless Steel: Prevents rust and discoloration in outdoor environments.

Why SS Wire Rope?

• Enhances aesthetic appeal in residential and outdoor settings.
• Provides long-lasting durability.
• Resistant to weather and corrosion.

V. Advantages of Stainless Steel Wire Rope

Stainless steel wire ropes offer numerous advantages that make them highly suitable for demanding and diverse applications. These advantages stem from their unique material composition, structural design, and superior performance in various environments.

1. Corrosion Resistance

One of the most significant advantages of stainless steel wire ropes is their excellent resistance to corrosion, especially in harsh and corrosive environments such as marine, offshore, and industrial settings.

Key Points:

• Stainless steel, especially Grade 316, exhibits outstanding resistance to saltwater, chemicals, and moisture, making it ideal for marine and offshore applications.
• Unlike galvanized steel ropes, stainless steel wire ropes do not require additional coatings for corrosion resistance, reducing maintenance costs.
• Long service life in harsh environments prevents frequent replacements.

Benefit:
✔ Extended lifespan in corrosive environments, reducing operational downtime and maintenance costs.

2. High Strength and Durability

Stainless steel wire ropes are known for their high tensile strength and durability, making them suitable for heavy-duty applications such as lifting, pulling, and load securing.

Key Points:

• Manufactured from high-strength stainless steel alloy, enabling the rope to withstand heavy loads, tension, and dynamic forces.
• Resistant to mechanical wear, abrasion, and fatigue, even under continuous use.
• Retains structural integrity under heavy loads without deformation.

Benefit:
✔ Provides reliable performance in demanding applications like construction, industrial lifting, and mining operations.

3. Excellent Fatigue Resistance

Fatigue resistance refers to a wire rope’s ability to withstand cyclic loading or repeated bending under tension without failure. Stainless steel wire ropes offer exceptional fatigue resistance, making them ideal for applications involving constant flexing or movement.

Key Points:

• Suitable for crane ropes, winches, and hoists where repetitive load cycling occurs.
• Retains structural integrity despite constant bending, flexing, and loading.
• Ensures a long service life without compromising performance.

Benefit:
✔ Reduces the risk of sudden failure under repetitive movement, ensuring operational safety.

4. Low Maintenance Requirements

Compared to other wire rope materials, stainless steel requires minimal maintenance due to its natural corrosion resistance, strength, and durability.

Key Points:

• No need for protective coatings or rust prevention treatments.
• Does not require regular painting or galvanizing.
• Simple cleaning with water or mild detergent maintains the appearance and performance of the rope.

Benefit:
✔ Lowers maintenance costs and operational downtime, increasing efficiency in industrial and outdoor applications.

5. Aesthetic Appeal

Stainless steel wire ropes offer an attractive and modern appearance, making them ideal for architectural, residential, and decorative applications.

Key Points:

• The polished, shiny surface of stainless steel provides a high-end aesthetic appeal.
• Commonly used in glass curtain walls, handrails, balustrades, and garden trellises.
• Enhances the visual appeal of buildings, landscapes, and interior designs.

Benefit:
✔ Adds aesthetic value without compromising strength or performance.

6. Temperature and Heat Resistance

Stainless steel wire ropes can withstand high temperatures without compromising their mechanical properties, making them suitable for applications in extreme temperature conditions.

Key Points:

• Maintains strength and structural integrity at high operating temperatures.
• Resistant to heat-induced oxidation, ensuring durability in high-heat environments.
• Widely used in industrial furnaces, refineries, and power plants.

Benefit:
✔ Provides reliable performance in high-temperature environments without degradation.

7. Versatility and Flexibility

Stainless steel wire ropes are available in various constructions, offering different levels of strength, flexibility, and stretch to meet diverse application requirements.

Key Points:

• Flexible ropes (7×19, 6×36+FC): Ideal for dynamic and moving loads (e.g., winches, cranes, lifting operations).
• High-tensile ropes (1×19, 7×7): Suitable for static, load-bearing, or structural applications (e.g., bridge cables, balustrades).
• Wide range of diameters and strength ratings to fit specific industrial and architectural needs.

Benefit:
✔ Provides customizable solutions for various industries and applications.

8. Non-Magnetic Properties

In certain applications, it is crucial to use materials that do not interfere with magnetic fields. Stainless steel wire ropes, especially those made from Grade 316, offer excellent non-magnetic properties.

Key Points:

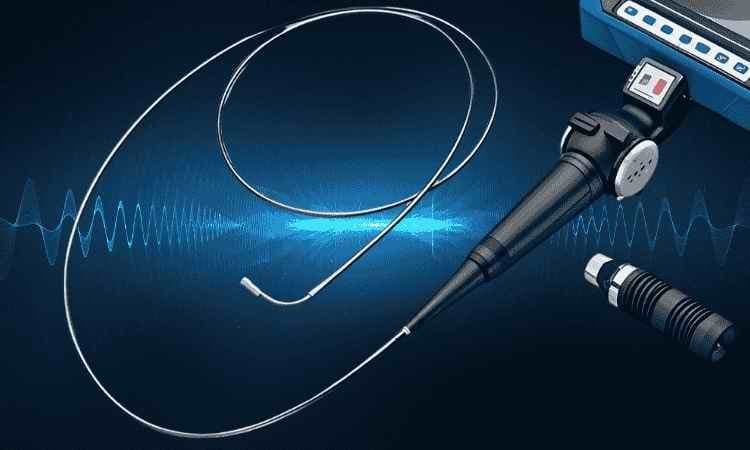

• Suitable for medical equipment, laboratories, and sensitive electronic environments.
• Prevents magnetic interference in scientific instruments.
• Ideal for industries like healthcare, marine navigation, and precision engineering.

Benefit:
✔ Avoids magnetic disruptions in sensitive equipment and operations.

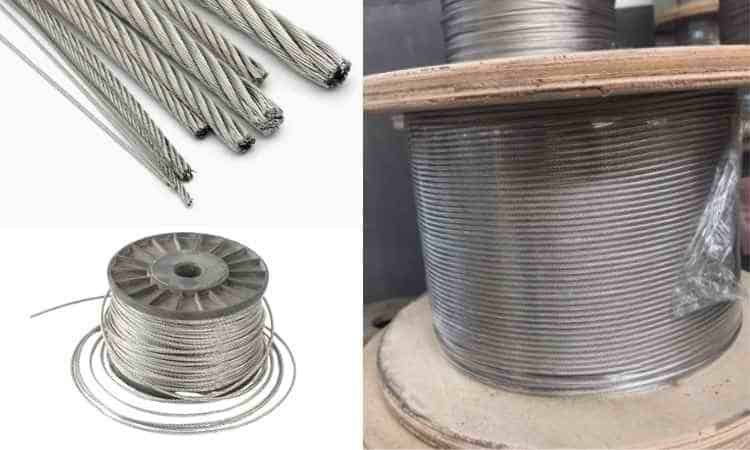

9. Long Service Life

Due to their exceptional corrosion resistance, mechanical strength, and fatigue resistance, stainless steel wire ropes offer a significantly longer service life compared to traditional steel or galvanized ropes.

Key Points:

• Resistant to environmental degradation, rust, and mechanical fatigue.
• Retains its tensile strength and performance even after years of use.
• Requires minimal replacement, reducing operational costs.

Benefit:
✔ Long service life ensures cost efficiency and reliability in critical operations.

10. Environmental Resistance (Weather, UV, and Chemical)

Stainless steel wire ropes perform exceptionally well in outdoor and harsh environments, resisting extreme weather conditions, UV radiation, and chemical exposure.

Key Points:

• UV-resistant and unaffected by prolonged exposure to sunlight.
• Chemically resistant to harsh chemicals, acids, and industrial solvents.
• Performs well in offshore and saltwater environments.

Benefit:
✔ Provides long-lasting performance in outdoor and industrial environments without degradation.

11. Wide Range of Customization

Manufacturers offer customized SS wire ropes tailored to specific applications based on:

• Rope diameter.
• Tensile strength.
• Rope construction (1×19, 7×7, 7×19, etc.).
• Surface finish (polished, coated, etc.).
• Pre-fabricated end fittings (thimbles, hooks, or swaged ends).

Benefit:
✔ Offers tailored solutions to match different industrial, architectural, and commercial needs.

12. Safety Assurance

Stainless steel wire ropes offer high safety performance due to their high breaking strength, fatigue resistance, and corrosion protection.

Key Points:

• Lower risk of sudden rope failure under heavy loads.
• Higher safety margin for load-bearing applications.
• Compliance with international safety standards (such as ISO, ASTM, and EN standards).

Benefit:
✔ Ensures a high level of operational safety, reducing workplace accidents.

VI. Quality Control and Testing of Stainless Steel Wire Rope

Ensuring the quality and reliability of stainless steel wire ropes is crucial for their performance in critical applications. A robust quality control (QC) and testing process guarantees that the ropes meet the required standards and can handle the demands of their intended use.

1. Material Quality Control

The raw material used to manufacture stainless steel wire rope is crucial to its performance. The process begins with ensuring the quality of stainless steel before any fabrication takes place.

Key Points:

• Material Composition Testing: Tests such as spectrometric analysis ensure the alloy meets required standards (e.g., Grade 304, Grade 316) for corrosion resistance, strength, and ductility.
• Tensile Testing of Raw Wire: Each batch of wire is subjected to tensile tests to ensure the wire’s tensile strength meets or exceeds industry standards.
• Surface Inspection: The wire is checked for surface defects like pitting, cracks, or irregularities, which could affect the rope’s performance.

Benefit:
✔ Ensures that the rope will meet both strength and corrosion-resistance requirements before manufacturing begins.

2. Wire Rope Manufacturing Process Control

During the manufacturing process, quality control ensures that every step—from wire drawing to strand formation and rope construction—meets the necessary standards.

Key Points:

• Wire Drawing: Precise drawing of the wire to the required diameter and thickness ensures uniformity and strength.
• Strand Construction: The rope’s strand construction (e.g., 6×19, 7×7) is checked for consistency, ensuring that the strands are tightly wound and uniform in size.
• Lubrication: The application of lubricants during the construction process prevents internal wear and enhances the rope’s performance.

Benefit:
✔ Guarantees the rope’s structural integrity and smooth performance in operation.

3. Testing of Finished Wire Rope

Once the wire rope is manufactured, various tests are performed to ensure it meets or exceeds the required safety standards.

Key Testing Methods:

• Tensile Strength Testing: The rope is subjected to tensile tests to determine the breaking strength, ensuring it can handle the maximum load in real-world applications.
• Fatigue Resistance Testing: The rope undergoes cyclic load tests to ensure it can withstand repeated loading and unloading without failure.
• Abrasion Resistance Testing: This test ensures the rope can endure continuous rubbing and wear in rough conditions.
• Corrosion Resistance Testing: The rope is exposed to saltwater spray tests or immersion tests to simulate real-life corrosive environments and check for rust and degradation.
• Breaking Load Test: The rope is tested for its ultimate breaking strength, ensuring it can withstand the specified load limits.

Benefit:
✔ Ensures that the final product meets the rigorous standards of strength, safety, and durability.

4. Final Inspection and Certification

After all tests, each batch of wire rope undergoes a final inspection to ensure it complies with the required specifications. Any defects found during testing or inspection lead to rework or rejection of the product.

Key Points:

• Visual Inspection: Every rope is visually inspected for any defects like kinks, frays, or inconsistencies.
• Dimensional Inspection: The diameter, length, and lay length of the wire rope are checked.
• Certificate of Compliance: A Certificate of Conformance (CoC) is issued to confirm that the product meets the required standards and specifications.

Benefit:
✔ Provides customers with certified, reliable products that meet safety and performance expectations.

VII. Packaging, Transportation, and Storage of SS Wire Rope

Proper packaging, transportation, and storage are essential to maintaining the quality and integrity of stainless steel wire ropes during delivery and storage.

1. Packaging of SS Wire Rope

The packaging process ensures that the wire rope remains in excellent condition until it reaches the customer.

Key Points:

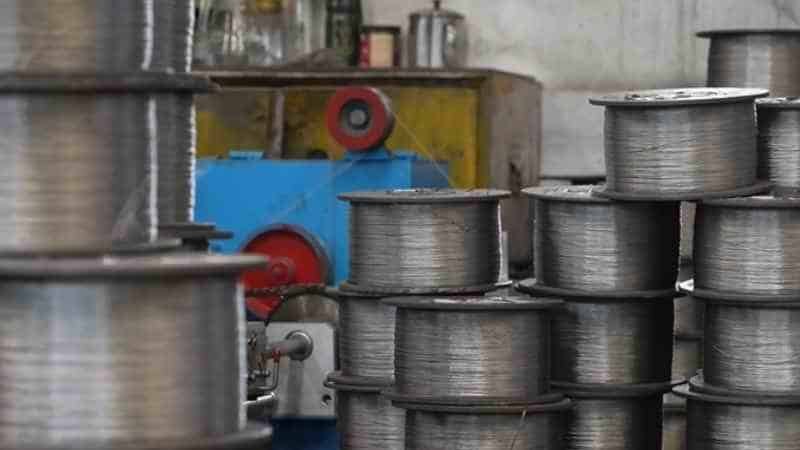

• Spool Packaging: Wire ropes are typically wound onto spools, drums, or reels, ensuring they are easy to transport and uncoil. The ends are properly secured to prevent tangling.
• Protective Coatings: If necessary, the rope is coated with a protective lubricant to prevent rust or damage during transport.
• Identification Labels: Each package is labeled with important information, including rope specifications (diameter, construction, grade), the manufacturer, and batch number.
• Custom Packaging: For large or specialized ropes, custom packaging such as wooden crates or pallets may be used to ensure safe handling during transport.

Benefit:
✔ Ensures safe and organized transportation and delivery while protecting the wire rope from physical damage and corrosion.

2. Transportation of SS Wire Rope

Proper transportation is key to maintaining the rope’s quality and preventing damage during transit.

Key Points:

• Protection from Environmental Conditions: Ropes should be transported in well-ventilated vehicles to prevent moisture buildup, and covered to protect them from extreme temperatures or rain.
• Secure Fastening: Ropes should be securely fastened during transportation to prevent shifting, which could lead to damage or deformation.
• Handling Protocols: Personnel handling the ropes should be properly trained to avoid damaging the ropes by improper lifting or dropping.

Benefit:
✔ Ensures ropes arrive in excellent condition and ready for installation.

3. Storage of SS Wire Rope

To preserve the quality and functionality of stainless steel wire ropes, proper storage practices are essential.

Key Points:

• Indoor Storage: Ropes should be stored in dry, cool, and well-ventilated areas to prevent corrosion. If stored outdoors, they should be covered with protective tarps.
• Avoid Moisture and Contaminants: Ropes should not be stored on the ground or in direct contact with moisture, as this could cause rusting or degradation.
• Avoid Twisting and Tension: Ropes should be stored without twisting or tension to prevent deformations and to maintain their flexibility.
• Regular Inspection: Periodic checks should be performed to detect any signs of corrosion, wear, or damage.

Benefit:
✔ Ensures the rope remains in top condition and ready for use when needed.

VIII. Installation and Maintenance Guidelines

Proper installation and regular maintenance are critical to ensuring the longevity and performance of stainless steel wire ropes.

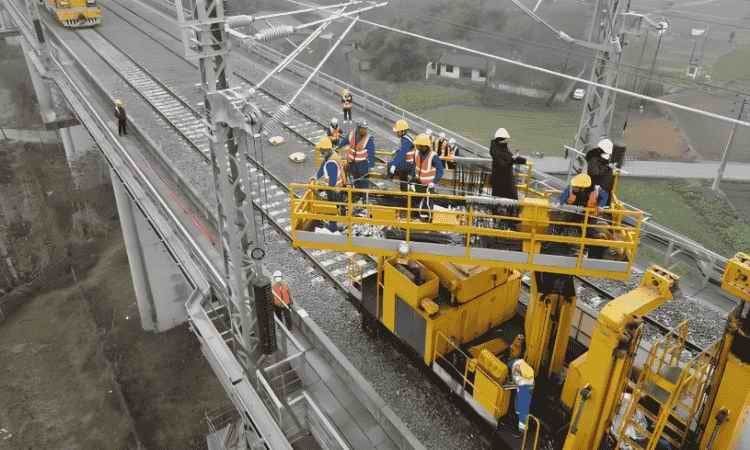

1. Installation of SS Wire Rope

Proper installation ensures that the rope will perform safely and efficiently.

Key Points:

• Correct Fitting: Ensure that the rope is paired with the correct fittings and hardware (e.g., thimbles, eye bolts, shackles) to prevent unnecessary stress on the rope.
• Rope Tension: The rope should be installed with the correct tension, avoiding over-tensioning, which could reduce its lifespan.
• Bending Radius: The minimum bending radius for the rope should be observed to prevent kinks and reduce wear.
• Secure Anchor Points: Ensure that anchor points and pulleys are in good condition and capable of withstanding the load.

Benefit:
✔ Proper installation ensures that the rope will operate safely and efficiently throughout its service life.

2. Regular Maintenance of SS Wire Rope

Regular inspection and maintenance prevent unexpected failures and increase the rope’s lifespan.

Key Points:

• Frequent Inspections: Inspect the rope regularly for abrasion, corrosion, and wear. Check for visible signs of fraying, kinking, or broken wires.
• Lubrication: Regularly lubricate the rope to minimize internal wear and reduce friction, especially if exposed to harsh environments.
• Cleaning: Clean the rope periodically to remove dirt, salt, or chemicals that could affect its performance.
• Load Monitoring: Regularly check the load conditions to ensure the rope is not overloaded.

Benefit:
✔ Regular maintenance extends the rope’s service life and ensures safe performance.

3. Replacing Worn or Damaged Ropes

As ropes wear out, they must be replaced to prevent failures in load-bearing operations.

Key Points:

• Assessing Wear: If the rope shows signs of excessive wear, loss of strength, or severe corrosion, it should be replaced immediately.
• Timely Replacement: Proactively replacing ropes before failure reduces the risk of accidents and ensures safety.

Benefit:
✔ Prevents unexpected failures and improves safety.

You can feel free to contact SICH Manufacturer in China for purchasing wire ropes: Email: info@sichwirerope.com
