Steel wire rope isn’t just strong — it’s engineered for trust. With unmatched tensile strength, fatigue resistance, and environmental durability, it sets the global standard in rigging and lifting. Whether you’re building skyscrapers, anchoring offshore platforms, or hoisting precision equipment, steel wire rope delivers the performance, safety, and reliability heavy industries count on.
I. Introduction

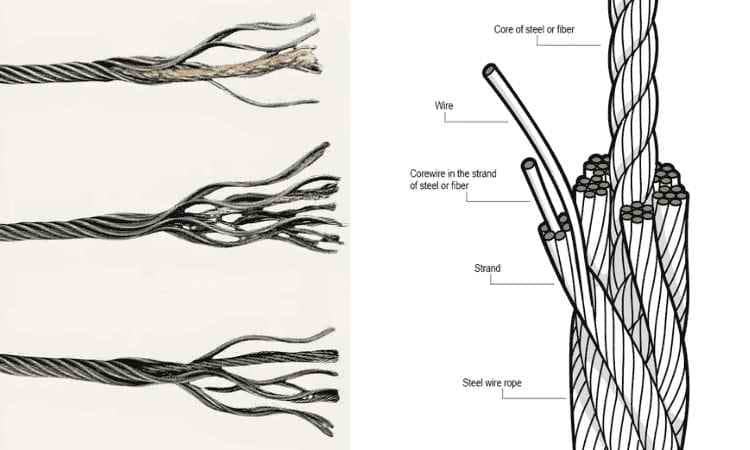

• Overview of Steel Wire Rope
Steel wire rope is a core component in rigging and lifting operations, grounded in the fusion of materials science and mechanical engineering. At the microscopic level, each wire is typically made from high-carbon steel (with 0.5%–1.2% carbon content) or stainless steel. Using a cold drawing process, wire diameters are precisely controlled within the 0.1–30mm range, resulting in tensile strengths between 1400 and 2200 MPa—3 to 5 times stronger than regular steel. This process not only ensures precise diameters but also refines the grain structure through plastic deformation, increasing both tensile strength and surface hardness. Heat treatment is then applied to relieve internal stresses from cold working and prevent brittleness.
Multiple wires are twisted at a specific helical angle (typically 6°–8°) to form strands. This angle is optimized for mechanical balance: too small and internal stress and wear increase; too large and structural stability suffers. The helical twist forms stable spiral lines with either point or line contact between adjacent wires—providing both strength and flexibility.
These strands are then twisted around a core—either a fiber core (like sisal or polypropylene) or a steel core (IWR)—to form a unique three-level structure: wire → strand → rope. Fiber cores, often soaked in lubricating oil, provide continuous lubrication and shock absorption. Natural fibers like sisal are good for general use due to oil absorption and adaptability, while synthetic fibers like polypropylene excel in corrosive or wet environments. Metal cores, such as Independent Wire Rope Cores (IWR), enhance tensile and compressive strength, especially in multi-layer winding or high-pressure conditions.
This tri-layer structure balances strength, flexibility, and anti-rotation properties: outer wires bear tensile loads, the strand arrangement distributes stress, and the core supports and cushions, reducing twist and kinking under variable loads.

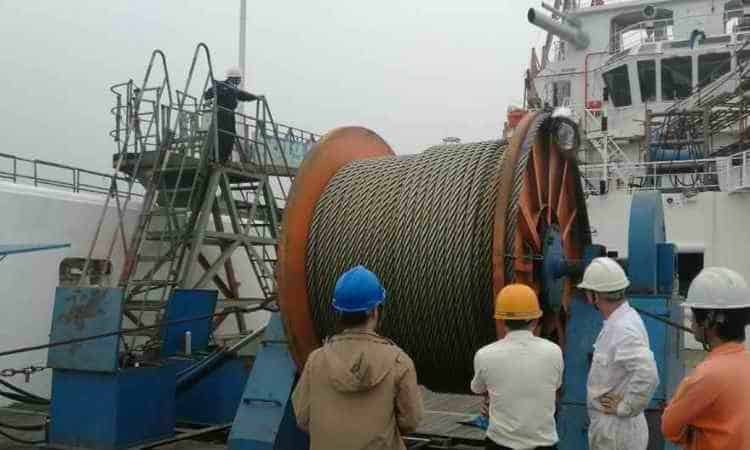

• Real-World Applications
Steel wire rope is found throughout industrial development. In construction, high-rise tower cranes use large-diameter, high-strength ropes capable of supporting up to 200 tons—precisely lifting steel bars and concrete hundreds of meters high. These typically use a 6×36WS+IWR configuration with Warrington-Seale twists for wear and fatigue resistance under dynamic loads.
In mining, hoist ropes endure thousands of heavy-duty cycles daily, transporting ore in kilometer-deep shafts. Zinc or aluminum coatings (15–40μm thick) protect against corrosion in dusty, humid shafts. Sealed rope designs with trapezoidal outer wires prevent debris from entering the rope core.
In maritime operations, mooring ropes on oceangoing ships must withstand typhoon-force winds. These ropes combine high-strength galvanized steel wires with fiber-reinforced sheaths to handle peak loads and absorb wave energy. In port operations, 120mm ropes exceed 5000kN breaking force and use pre- and post-deformation techniques to ensure even strand friction and avoid stress concentrations.
The offshore oil and gas industry uses stainless steel ropes or nanoceramic-coated variants for high-salt, high-humidity, and high-pressure environments. These can handle extreme conditions—such as 300°C temperatures and high chloride exposure—thanks to advanced multi-layered designs and precision-optimized strand geometry, often using up to 18 strands. Stress variation across layers is kept within 5%, extending service life significantly.
Emerging industries are also adopting steel wire ropes. Wind turbine installation uses 80mm anti-rotation ropes for precision hoisting of hundred-ton blades. Suspension bridges rely on cables formed from tens of thousands of high-strength wires—some over 1 meter in diameter—capable of bearing hundreds of thousands of tons, serving as the backbone of modern bridge infrastructure.
• Importance in Rigging and Lifting
Rigging and lifting are high-risk industrial tasks, where equipment reliability directly impacts safety, assets, and timelines. In these critical operations, steel wire rope is indispensable due to its combination of strength, environmental resistance, and flexibility. While it appears to be a traditional mechanical part, steel wire rope is in fact a sophisticated product of engineering disciplines and failure analysis—forming a full lifecycle safety system. It’s more than a part; it’s the foundation of modern lifting technology.
II. Advantages of Steel Wire Rope in Rigging and Lifting

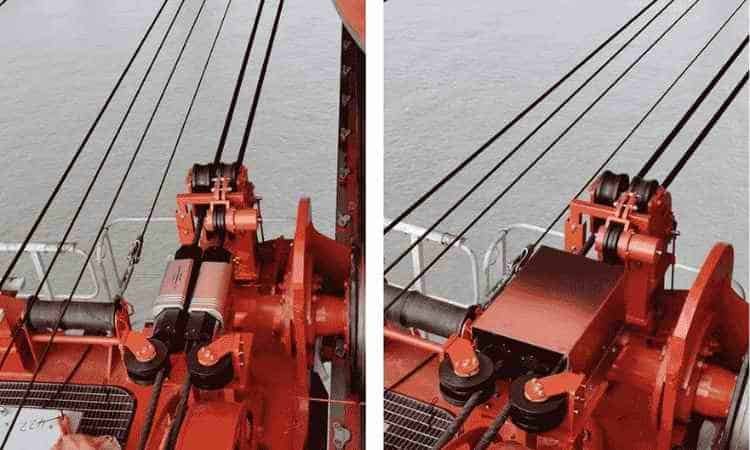

• High Strength-to-Weight Ratio
Steel wire rope delivers an exceptional strength-to-weight ratio, making it a top choice for engineering applications. Compared to traditional lifting materials, it carries significantly more load per unit weight. For instance, a 24mm-diameter 6×36WS + IWR steel wire rope weighs just 2.8 kg per meter but has a breaking force of 360 kN. In contrast, a steel rod with the same load-bearing capacity weighs over 15 kg per meter. This lightweight property is especially critical in confined spaces—like interior construction in high-rise buildings—where high-strength steel wire rope paired with compact hoisting gear can efficiently lift heavy materials, improving work efficiency and cutting equipment installation and transport costs.
Mechanically, this high strength comes from the cold drawing process and optimized twisting design. Cold drawing refines the grain structure and increases dislocation density within the steel, boosting tensile strength. The rope’s twisted configuration allows load to be distributed evenly across all wires, reducing stress concentration and maximizing material performance.
• Durability and Long Service Life
Steel wire rope‘s durability stems from a layered defense in material, structural design, and processing. High-carbon steel wires are alloyed with manganese and silicon for enhanced wear and fatigue resistance. Stainless steel wires rely on passive oxide films formed by chromium and nickel to withstand corrosion. Structurally, multi-layered strands allow micro-movements between wires under load, distributing stress and reducing localized abrasion. For example, in a 6×36WS rope, each strand includes 36 fine wires, increasing contact surface area and lowering pressure per unit area—extending rope lifespan.
Surface treatments also boost corrosion resistance. Hot-dip galvanizing applies a thick, compact zinc coating (≥85μm) to block air and moisture, achieving over 1,000 hours in salt spray tests. Polymer coatings like PTFE offer superior protection in chemical and marine environments. Real-world data shows that under regular maintenance, port cranes can use the same rope for 5–8 years, and mine hoist ropes can operate steadily for 3–5 years—significantly reducing replacement frequency and maintenance costs.

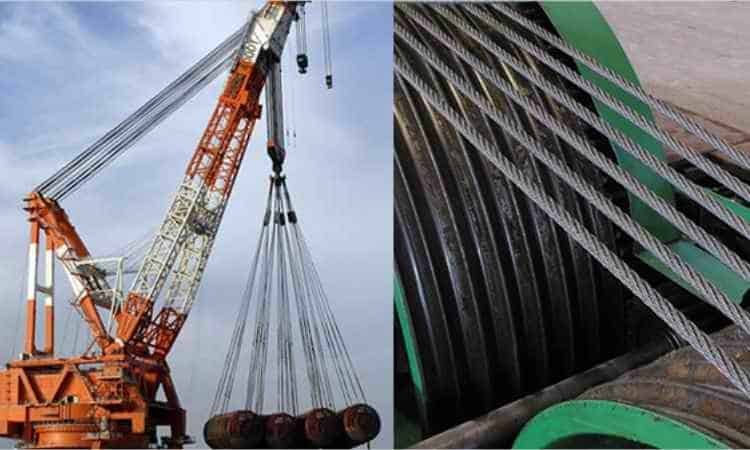

• Flexibility and Versatility
The unique strand structure of steel wire rope gives it outstanding flexibility and motion adaptability. Minimum bending radius can be as low as 6d (d = rope diameter). For example, a 12mm rope can easily bend around a 72mm pulley. This flexibility shines in precision operations and tight spaces—like semiconductor fabrication lines, where 0.8mm stainless steel ropes paired with servo systems can achieve ±0.1mm positioning accuracy.
Steel wire rope is also highly versatile. It integrates with various rigging components like hooks, shackles, and wedge sockets to meet diverse lifting needs. In large bridge construction, it works with hydraulic lifting systems to hoist entire steel beams. In maritime towing, multiple ropes with directional pulleys can control vessels in rough seas. By adjusting parameters such as strand count, wire diameter, and twist direction, ropes can be customized for special scenarios—for instance, anti-rotation ropes for wind turbine installation.
• Safety and Regulatory Compliance
From manufacturing to deployment, steel wire rope is tightly governed by standards and regulations. ISO 4309 outlines detailed requirements for marking, diameter, breaking strength, and inspection. ASTM A931 covers production and quality control procedures. In China, GB 8918 (“Steel Wire Ropes for Important Applications”) sets strict safety criteria to ensure reliability in critical operations.
In practice, correct rope selection is key to operational safety. Companies must evaluate load characteristics, environmental conditions, and safety demands—selecting rope with an appropriate safety factor, typically 5:1 to 6:1. Regular non-destructive testing—like electromagnetic or ultrasonic inspections—helps detect internal breaks, wear, or corrosion early. For example, a major mining company implemented real-time monitoring to track tension, wear, and wire breakage, reducing rope failure incidents by 80%.
III. Core Applications of Steel Wire Rope in Rigging and Lifting

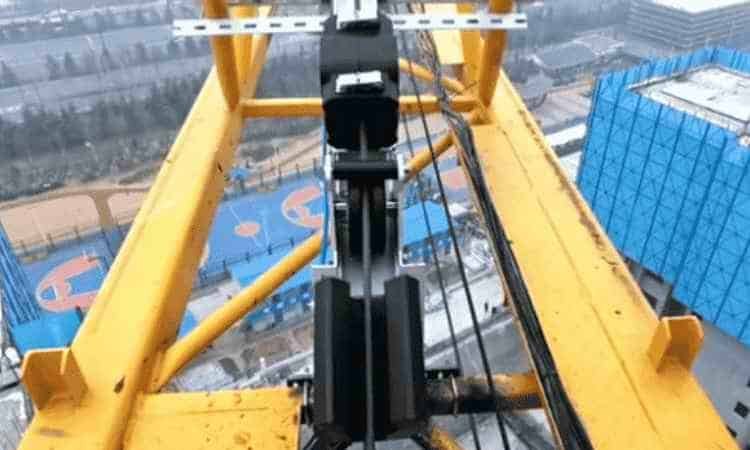

• Construction Engineering
In construction, steel wire rope is the go-to solution for vertical transport and heavy lifting. As buildings climb higher, the demands on rope performance increase dramatically. Take the Burj Khalifa in Dubai as an example: its construction used tower crane wire rope with a 48mm diameter and a tensile strength of 1960 MPa. Each rope could support over 500 tons, operating stably at heights of 828 meters for thousands of hours to lift tens of thousands of tons of construction material.
In specialized tasks like steel structure erection, precision and stability are critical. High-strength, low-rotation 8×41WS + IWR ropes combined with precision hoisting systems allow millimeter-level positioning of steel beams. To cope with typical construction-site challenges—heat, dust, humidity—ropes with high-temperature coatings or galvanized corrosion protection are chosen for long-term reliability.

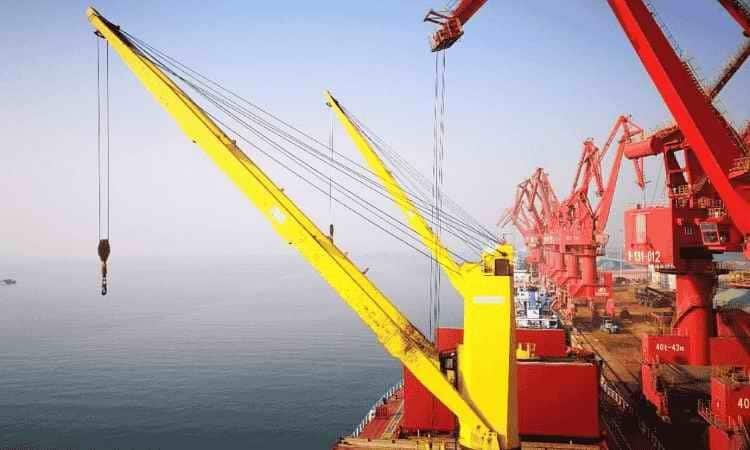

• Maritime and Shipboard Applications
The maritime industry places unique stress on steel wire ropes due to the harsh ocean environment, requiring both corrosion resistance and extreme strength. In mooring operations, large oil tankers use ropes with diameters from 120mm to 180mm and breaking forces exceeding 5000 kN—capable of resisting violent wind and waves to secure ships at port. During typhoon season, ropes with special anti-corrosion coatings, paired with automated mooring systems, can dynamically adjust tension and prevent unmooring incidents.
For ship towing and offshore engineering, ropes must excel in both wear resistance and fatigue life. Multi-layer strand configurations (e.g., 6V×37 + FC) ensure stable performance under repeated bending and tensile loads. Given the high salt content of seawater, 316 stainless steel ropes and hot-dip aluminum-zinc alloy ropes are commonly used, offering 3 to 5 times the corrosion resistance of standard galvanized ropes. They play vital roles in offshore platforms and long-span sea-crossing bridges.
• Mining and Oil & Gas
Mining and oil/gas operations are among the most demanding environments for steel wire rope—characterized by high heat, pressure, dust, and corrosion. In deep-shaft mining (over 2000 meters), hoisting ropes must endure massive static and dynamic loads. High-strength compacted-strand ropes (e.g., 6K×36WS + IWR) with tensile strengths up to 2160 MPa are treated for surface hardness to withstand shaft friction and abrasion.
In oil and gas, ropes used for offshore drilling platforms and pipeline installation must meet the highest safety and reliability standards. In hydrogen sulfide (H₂S)–rich environments, API Spec 9B-compliant sulfur-resistant wire rope is essential. These ropes are alloyed with molybdenum and vanadium to resist corrosion and stress cracking. For example, in the Gulf of Mexico, dual-layer coated ropes have operated safely for over five years in salt-heavy, high-moisture, H₂S-saturated conditions (up to 1000 ppm), maintaining platform uptime and safety.
• Heavy Lifting and Industrial Applications
In manufacturing, energy, and logistics, steel wire rope serves as the backbone of heavy lifting. For instance, relocating a 1000-ton hydraulic press or moving an 800-ton gantry mill demands large-diameter, ultra-strong ropes. One equipment manufacturer used four 60mm-diameter 6×36WS + IWR ropes with synchronized hydraulic lifts to safely position the machinery.
In energy sectors like wind power, lifting turbine blades—often 80+ meters long and over 100 tons in weight—at heights above 100 meters requires ropes with top-tier anti-rotation and flexibility. The 18×7 anti-rotation ropes, made with specialized twisting techniques, ensure that torques cancel each other out, keeping blades steady during hoisting. In logistics, container cranes and gantry systems rely on high-performance ropes to meet fast, high-frequency loading cycles. For example, automated quay cranes at container terminals require ropes that handle 120 meters per minute and endure 200,000+ fatigue cycles for efficient container turnover.
IV. Key Factors in Selecting Steel Wire Rope for Rigging and Lifting
• Material Grades

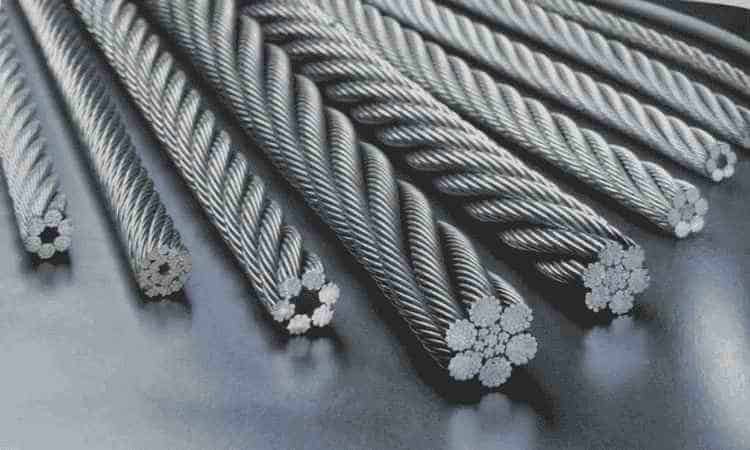

- 304 Stainless Steel:
304 stainless steel wire rope (06Cr19Ni10) offers balanced overall performance. With about 19% chromium and 10% nickel, it forms a passive film that provides solid corrosion resistance in neutral environments. It’s well-suited for food processing plants, indoor storage, and light industrial applications, with a tensile strength range of 520–750 MPa. However, it may suffer from pitting corrosion in humid or chloride-rich conditions—use with caution in such cases. - 316 Stainless Steel:
316 stainless steel (06Cr17Ni12Mo2) adds 2–3% molybdenum, dramatically improving resistance to chloride-induced corrosion. Ideal for marine, chemical, and other aggressive environments, it has an annual corrosion rate of less than 0.01mm in seawater—just one-fifth that of 304. In offshore platforms and chlor-alkali chemical plants, 316 rope ensures long-term stability and safety. - Carbon Steel:
Typically made from high-carbon steels like 65Mn or 70#, carbon steel wire rope is heat-treated to achieve tensile strengths of 1570–1770 MPa. It delivers strong load-bearing capacity but is prone to rust in humid air. Best suited for dry indoor use—such as warehouse cranes or factory lifts—it can be galvanized or painted to boost corrosion resistance. - Material Selection Guide:
Choosing materials requires consideration of the working environment’s corrosion level, temperature, and humidity. - For harsh environments (marine, chemical, acid wash), use 316 stainless steel.
- For indoor, dry areas, 304 stainless steel or coated carbon steel is sufficient.
- For high temperatures (>200°C), select materials rated for heat resistance and account for creep behavior.
• Rope Structure Types
- 7×19 Construction:
This design features 7 strands with 19 wires each, offering excellent flexibility and fatigue resistance. It’s ideal for repetitive bending tasks, such as elevator hoists and boom systems in port cranes. In elevators, the 7×19S + FC structure provides high flexibility and low rotation, allowing smooth, safe operation in tight shafts. - 6×36 Construction:
Balancing strength and flexibility, the 6×36 structure is a standard choice for general lifting. It delivers high breaking force with 36 wires per strand, enhancing wear resistance and fatigue life. Widely used in tower cranes, overhead bridge cranes, and other typical lifting equipment, it handles heavy loads while winding smoothly around drums and pulleys. - Selection Advice:
- Prioritize 7×19 for applications needing tight bends or high flexibility (e.g., precision lifts, confined spaces).
- Choose 6×36 or larger for heavy-duty tasks like industrial machinery handling and mining lifts.
- For anti-rotation needs (e.g., wind turbine installation), use specialized ropes like 18×7 or 35W×7.

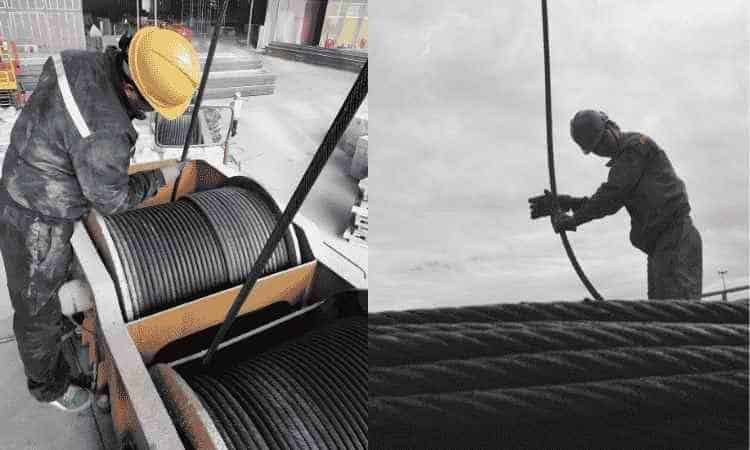

• Diameter and Load Capacity
A rope’s diameter directly impacts its load capacity. As diameter increases, so does strength—but flexibility declines. To determine the correct diameter, calculate the required breaking force using the actual load and safety factor.
Example:
For a 50-ton (490 kN) load and a 6:1 safety factor, the rope must withstand at least 2940 kN. Referencing spec sheets, a 40mm diameter 6×36WS + IWR rope with 1770 MPa tensile strength (breaking force ~3150 kN) would meet the requirement.
Additional Notes:
- Don’t confuse nominal breaking force with minimum breaking force. Always use the latter for selection.
- Pulleys and drums must match the rope diameter. A typical recommendation is 16–28× rope diameter to minimize bending stress and extend lifespan.
• Surface Treatments
- Uncoated:
Uncoated ropes are low-cost and best used in clean, dry, indoor spaces like warehouses or workshops without corrosive gases. They offer minimal protection, rust quickly in damp conditions, and are suitable only for non-critical or temporary tasks. - Galvanized / Coated:
- Electro-galvanized: Thin (8–15μm) layer, adequate for general outdoor use.
- Hot-dip galvanized: Thicker (85–120μm), far better corrosion resistance—ideal for marine, construction, and exterior work.
- Polymer coatings: PVC or PTFE coatings provide dense protection layers. In highly corrosive environments (chemical plants, marine sites), they outperform zinc. For instance, in sea-crossing bridge suspension cables, dual-protection systems (aluminum-zinc alloy + epoxy) can extend service life to over 30 years.

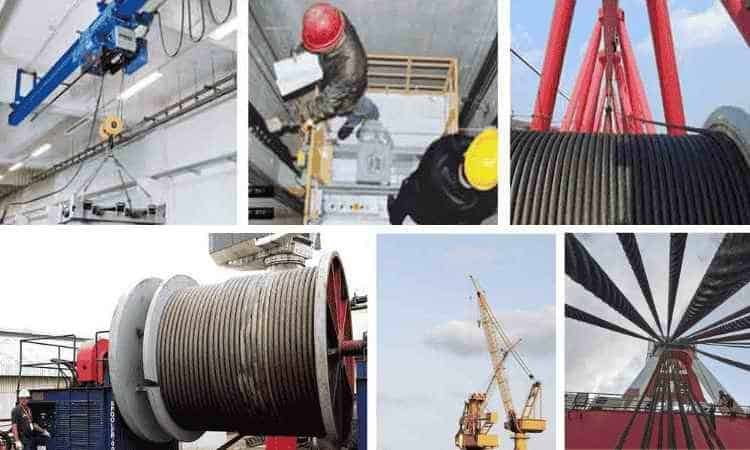

• Safety Factor
The safety factor (SF) is a critical indicator of rope safety. It’s the ratio of breaking force to rated working load.
- Standard lifting: SF of 5:1 to 6:1
- Passenger applications (e.g., elevators, amusement rides): SF ≥ 12:1
This margin covers unpredictable stresses (e.g., shock loads, vibration) and material variations.
In practice:
- Port crane operations with frequent, high-impact cycles should use SF of 6:1
- Mining lifts in tough underground environments may require the upper range of safety factors
- Specialized industries like nuclear or aerospace may go beyond standard SF requirements for absolute safety.
Use simulation software and mechanical models to fine-tune SF under real-world conditions. Companies should also maintain detailed SF documentation—recording specs, use scenarios, and inspection history—to support ongoing optimization.
As the rope ages from wear, fatigue, or corrosion, reassess the SF periodically. For example, in high-heat operations, strength loss and accelerated corrosion mean the SF should be increased. Non-destructive testing like magnetic particle or ultrasonic inspection helps detect internal damage and justify adjustments.
For complex hoisting (multi-rope setups or mixed rope specs), SF calculation must include load distribution and performance variation. Finite element analysis can help simulate and optimize system safety.
Lastly, operator behavior affects real-world SF. Poor habits like hard stops or rapid lifts spike impact loads and reduce safety. Training programs should improve awareness and ensure all work follows the proper SF and procedures.
V. Maintenance and Care of Steel Wire Rope

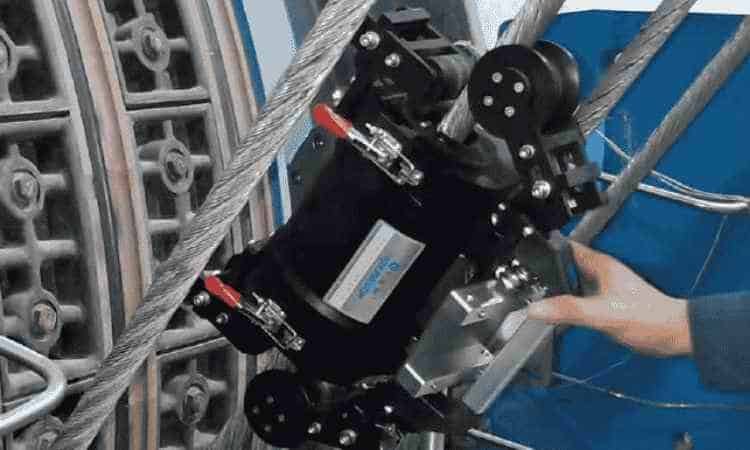

• Regular Inspection
Routine inspections are vital to ensure steel wire rope operates safely and to catch potential failures early. Inspections should cover the rope’s appearance, internal structure, and mechanical performance.
- Visual inspection focuses on wear, broken wires, and corrosion. Wear is typically found at contact points like pulleys and drums. If the rope’s diameter shrinks more than 7% of its nominal size, it should be replaced. The number of broken wires is also critical — for example, if a 6×37 rope has over 10 breaks within one lay length, it must be dealt with. Rust is evaluated by spotting color changes or rust patches. Light rust can be treated; heavy rust may require rope disposal.
- Internal inspection uses non-destructive testing (NDT) methods such as magnetic or ultrasonic techniques. These detect hidden breaks, corrosion, or wear inside the rope that aren’t visible on the surface. Routine internal checks help identify risks early and guide timely replacement.
- Mechanical testing includes tensile and fatigue bending tests to verify breaking force and yield strength. These simulate real-world bending loads and monitor fatigue resistance, ensuring safe operational limits are met.
Inspection frequency should be tailored to the rope’s workload, environment, and criticality:
- High-intensity or harsh environments (construction sites, mines, ports): daily or weekly visual checks; monthly or quarterly full inspections.
- Low-demand, controlled environments: full checks every 3–6 months.

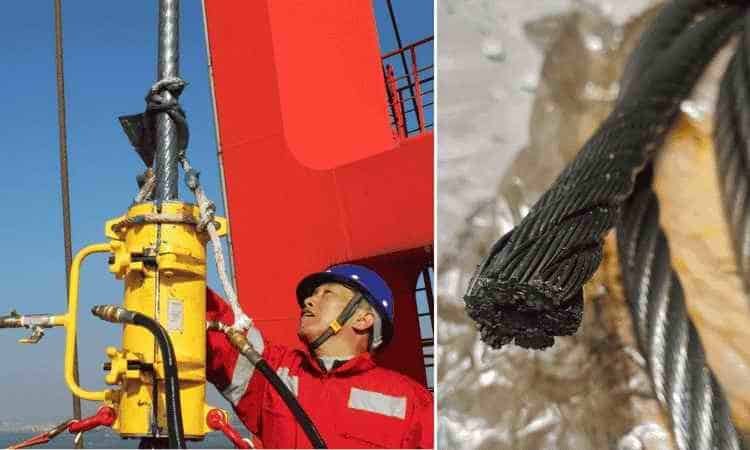

• Lubrication Management
Lubrication plays a major role in prolonging rope life. During use, internal wires and external surfaces create friction, which lubrication reduces — minimizing wear and heat, and delaying corrosion.
Choosing the right lubricant is essential. It must provide solid lubrication, corrosion resistance, and adhesion. Common types:
- Graphite lubricants: good for high-temp environments.
- Calcium-based greases: resist water, suitable for wet conditions.
- Synthetic lubricants: balanced performance for diverse environments.
Application methods:
- Static ropes: grease can be manually applied.
- Dynamic ropes: require spraying or immersion.
Frequency depends on use and environment:
- Heavy use, outdoor exposure: lubricate weekly or biweekly.
- Light indoor use: monthly or quarterly may suffice.
Avoid over-lubrication, which attracts dust and grit. Under-lubrication causes uneven wear. Apply evenly and according to the rope’s specifications.

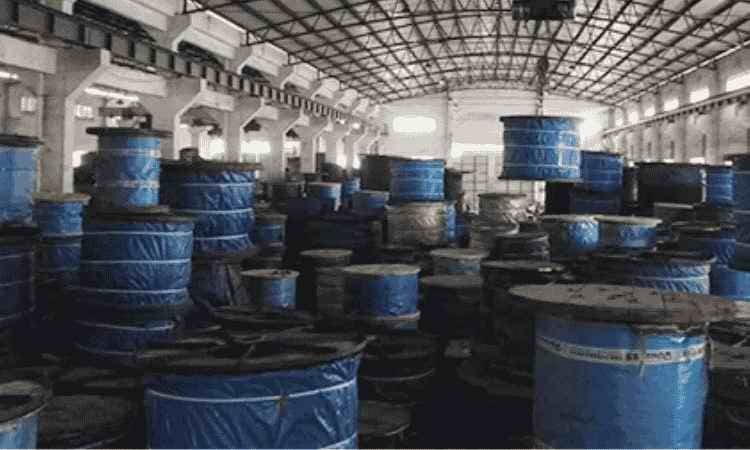

• Proper Storage
Correct storage is crucial to protect performance and longevity.
Store ropes in dry, clean, well-ventilated areas, away from sunlight and humidity. Keep relative humidity below 60%. Use dehumidifiers or desiccants as needed. Avoid contact with chemicals like acids, bases, or salts.
Wind ropes neatly onto dedicated reels or racks. Prevent kinks, twists, and crushing. The reel diameter should be at least 15 times the rope’s diameter to avoid excessive bending stress.
Regularly inspect stored ropes for rust, deformation, or other damage. Treat issues promptly. Long-term storage may require protective oil coatings and sealed packaging (e.g., plastic wrap or anti-moisture paper) to block air and moisture.
VI. Conclusion
• Why Steel Wire Rope is the Industry Standard
In summary, steel wire rope has become the benchmark for rigging and lifting due to its unmatched combination of strength, flexibility, and durability. Its high strength-to-weight ratio enables massive load handling in confined spaces. Durability and long service life cut replacement frequency and reduce maintenance costs. Its versatility allows it to handle diverse lifting scenarios. Safety and regulatory compliance offer dependable protection for people and assets.
Technically, steel wire rope integrates advanced material science, mechanical engineering, and production control. As innovation continues — with new materials, enhanced designs, and smart monitoring — wire rope is finding even more applications across industries.
• Choosing the Right Rope for Your Business
To select the ideal rope, companies must weigh several factors: load, working conditions, environmental exposure, safety codes, and operational constraints. Match material grade, structure type, diameter, and coating to these variables.
Establish a complete wire rope lifecycle management system—from selection and purchase to usage, maintenance, and retirement. Strengthen quality control and inspection routines to meet industry standards. Preventive maintenance is key to extending lifespan and minimizing downtime.
• Call to Action
Have questions about selecting, using, or maintaining steel wire rope? Need a custom solution? Contact us now. Our expert team combines industry experience with technical know-how to deliver high-quality, standards-compliant wire rope tailored to your needs. Let us help you optimize safety, efficiency, and reliability.
• Legal Disclaimer This document is for informational purposes only. Always consult with certified engineers or technical professionals before selecting or applying steel wire rope in critical operations. Follow applicable standards and safety regulations at all times.
