| Wholesale Hand Spliced Wire Rope Slings - Steel Core

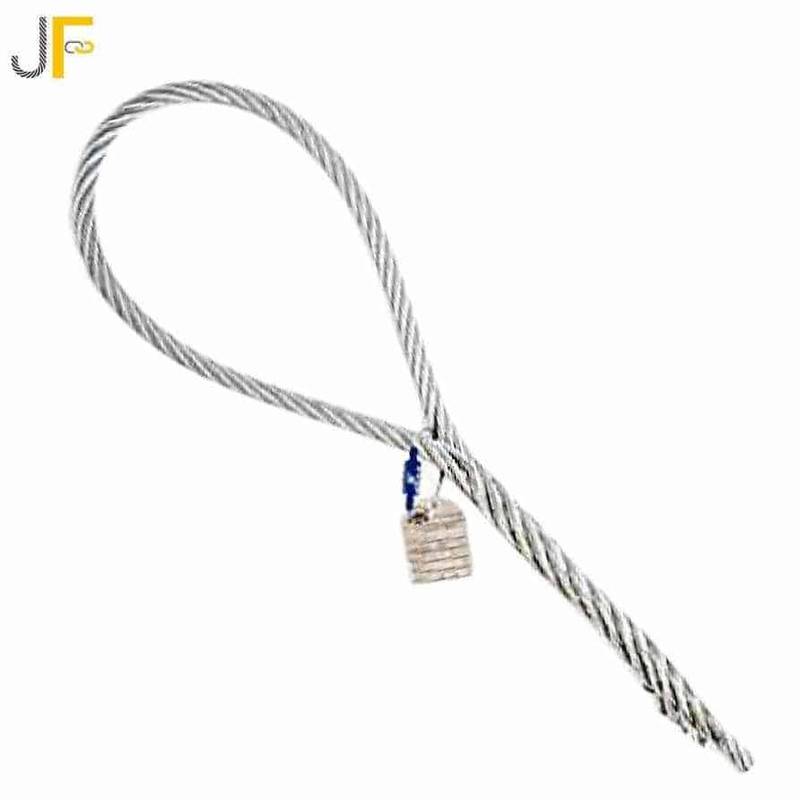

>> What are steel core hand spliced wire rope slings?
Steel core hand spliced wire rope slings are the type of sling that is used to lift and carry heavy loads. It is made of steel wire rope that is twisted around a central core, and then the ends are spliced together by hand. This type of sling is strong and durable and can be used for a variety of applications.
>> How to wholesale steel core hand spliced wire rope slings in our wire rope sling manufacturer?
You can wholesale steel core hand spliced wire rope slings: SCW from our JF brand.
* EXAMPLE: For one steel core hand spliced wire rope sling, 6mm diameter, and 5m sling functional length. YOu CAN ORDER: SCW06-5.
Order Tips (EN13411-2:2001) :
S : Steel wire rope sling
C : Spliced sling
W : Steel wire core material
L : Sling functional length
- Fabrication Time: 3-5 days
- Support Customization
- China Factory Direct
>> JF Brand steel core hand spliced wire rope slings capacity chart:
Model | Sling Diameter（mm） | Loop Size(mm) | Working Load Limit (ton) | |||
A | B | 6×37 (b) 1670MPa | 6×19 (a) &6×37 (a) | 8×61 (b) 1770MPa | ||
SCW076 | 6 | 180 | 90 | 0.29 | 0.33 | – |
SCW07 | 7 | 180 | 90 | 0.40 | 0.45 | – |
SCW08 | 8 | 200 | 100 | 0.52 | 0.58 | – |
SCW09 | 9 | 200 | 100 | 0.66 | 0.74 | – |
SCW10 | 10 | 200 | 100 | 0.81 | 0.91 | – |
SCW11 | 11 | 220 | 110 | 0.99 | 1.10 | – |
SCW12 | 12 | 240 | 120 | 1.17 | 1.31 | – |
SCW13 | 13 | 260 | 130 | 1.38 | 1.54 | – |
SCW14 | 14 | 280 | 140 | 1.60 | 1.78 | – |
SCW16 | 16 | 320 | 160 | 2.09 | 2.33 | – |
SCW18 | 18 | 360 | 180 | 2.64 | 2.95 | – |
SCW20 | 20 | 400 | 200 | 3.26 | 3.85 | – |
SCW22 | 22 | 440 | 220 | 3.94 | 4.66 | – |
SCW24 | 24 | 480 | 240 | 4.69 | 5.55 | – |
SCW26 | 26 | 520 | 260 | 5.51 | 6.51 | |
SCW28 | 28 | 560 | 280 | 6.39 | 7.55 | – |
SCW30 | 30 | 600 | 300 | 7.33 | 8.67 | – |
SCW32 | 32 | 640 | 320 | 8.34 | 9.87 | – |
SCW34 | 34 | 680 | 340 | 9.42 | 11.14 | – |
SCW36 | 36 | 720 | 360 | 10.56 | 12.49 | – |
SCW38 | 38 | 760 | 380 | 11.76 | 13.91 | – |
SCW40 | 40 | 800 | 400 | 13.03 | 15.42 | – |
SCW42 | 42 | 840 | 420 | 14.37 | 17.00 | – |
SCW44 | 44 | 880 | 440 | 15.77 | 18.65 | – |
SCW46 | 46 | 920 | 460 | 17.24 | 20.39 | – |
SCW48 | 48 | 960 | 480 | 18.77 | 22.20 | – |
SCW50 | 50 | 1,000 | 500 | 20.36 | 24.09 | – |
SCW52 | 52 | 1,040 | 520 | 22.03 | 26.05 | – |
SCW54 | 54 | 1,080 | 540 | 23.75 | 28.10 | – |
SCW56 | 56 | 1,120 | 560 | 25.54 | 30.21 | – |
SCW58 | 58 | 1,160 | 580 | 27.40 | 32.41 | – |
SCW60 | 60 | 1,200 | 600 | 29.32 | 34.69 | – |
SCW64 | 64 | 1,280 | 640 | 33.36 | 39.46 | – |
SCW66 | 66 | 1,320 | 660 | 35.48 | 41.97 | – |
SCW68 | 68 | 1,360 | 680 | 37.67 | 44.55 | – |
SCW70 | 70 | 1,400 | 700 | 39.91 | 47.21 | – |
SCW72 | 72 | 1,440 | 720 | 42.23 | 49.95 | – |
SCW74 | 74 | 1,480 | 740 | 44.61 | 52.76 | – |
SCW76 | 76 | 1,520 | 760 | 47.05 | 55.65 | – |
SCW78 | 78 | 1,560 | 780 | – | 58.62 | – |
SCW80 | 80 | 1,600 | 800 | – | 61.66 | – |
SCW82 | 82 | 1,640 | 820 | – | 64.78 | – |
SCW84 | 84 | 1,680 | 840 | – | 67.98 | – |
SCW86 | 86 | 1,720 | 860 | – | 71.26 | – |
SCW88 | 88 | 1,760 | 880 | – | 74.61 | – |
SCW90 | 90 | 1,800 | 900 | – | – | 65.11 |
SCW96 | 96 | 1,920 | 960 | – | – | 74.08 |
SCW100 | 100 | 2,000 | 1,000 | – | – | 80.38 |
SCW106 | 106 | 2,120 | 1,060 | – | – | 90.32 |
SCW110 | 110 | 2,200 | 1,100 | – | – | 97.26 |
SCW120 | 120 | 2,400 | 1,200 | – | – | 115.75 |
SCW130 | 130 | 2,600 | 1,300 | – | – | 135.84 |
- Conform Standard: EN13411-2:2001, GB/T16762-2009, GB/T16271-2009;
- The nominal tensile strength for wire rope pattern series 6×19(a) & 6×37 (a) listed above were 1670 MPa (d<20mm, included) or 1770 MPa (d>20mm).
- Wire ropes used in each sling can be customized to apply for higher or lower workloads.
- Minimal Breaking workload for the listed wire rope slings is 5 times their working load limit.
- Soft loop sizes (A and B) can be customized if the listed loop sizes are not suitable.
>> Why choose JF Brand steel core hand spliced wire rope slings:
There are some advantages of JF Brand steel core spliced wire rope slings:
- Extremely strong and durable
- Don’t stretch or sag over time
- Less likely to fray or break
- Easy to inspect for damage
JF Brand steel core hand spliced wire rope slings are more flexible than other types of slings, making them easier to use in a variety of applications. It is an excellent choice for many lifting applications. Additionally, steel wire core hand spliced wire rope sling can be custom-made to meet the specific needs of your project.
