| 6x19 Wire Rope
6×19 wire rope is a type of multi-stranded wire rope made of 6 strands of 19 wires each. It is commonly used in lifting and load-bearing applications such as oil and gas industry, construction, and mining. This type of wire rope is flexible and strong and is an excellent choice for high-torque applications. Feel free to contact us for offer sheet.
>> 6x19 Steel Wire Rope

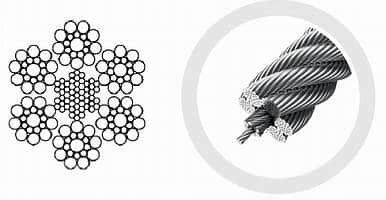

- 6×19 Steel Wire Rope Cross-section
- Surface treatment:
Ungalvanized, Galvanized, Hot dipped galvanized, Lubricate With Asphalt
- Diameter:
3mm-46mm
- Tensile strength:
1570, 1670, 1770, 1870, 1960, 2160N/MM2, IPS, EIPS, EEIPS
- Length:
100m/Reel, 500m/Reel, 1000m/Reel, 2000m/Reel, or customer requirement
- Packing:
Wooden reel, plastic reel, steel reel, canton box, wooden box
- MOQ:
1000 Meters
# ADVANTAGES
- Proven strand design and high adaptability.
- Low permanent and elastic elongation.
- 100% quality assurance, long service life.
- Low maintenance costs, fair cost-benefit ratio.
# APPLICATION
- Suitable for winch, traveling crane, lifting rigging
A 6×19 steel wire rope is a multi-stranded flexible wire rope composed of six strands of nineteen inner wires. It has excellent flexibility and greater fatigue resistance than other configurations. This type of wire rope is typically used for lifting slings, crane rope, winch lines, hoists, and other rigging applications.
SICHwirerope as a wire rope manufacturer, specializes in the production of 6×19 steel wire ropes, offering top-quality products that meet the highest standards of design and performance.It is particularly versatile and strong, making it ideal for many applications.
In the following, we will mainly introduce our brand (SICH) the following wire rope:
* 6x19 IWRC Wire Rope
- Good flexibility: 6x19 IWRC wire rope offers a better flexibility than a fiber rope, meaning rope bends are easier and quicker. This means it is also easier to work with in hoisting and lifting operations.
- High resistance to fatigue: The fatigue strength of 6x19 IWRC wire rope is very high, meaning it can resist fatigue when subjected to repeated bending cycles without breaking.
- Greater abrasion resistance: 6x19 IWRC wire rope is much more resistant to abrasion than fiber rope, meaning it can resist external surface damage such as wear and tear.
- Higher strength: 6x19 IWRC wire rope has a much higher strength than fiber rope, making it safer - and able to lift heavier loads.
- Suitable for extreme temperatures: 6x19 IWRC wire rope has been designed to withstand extreme temperatures, including temperatures as low as -40°C.
When purchasing 6×19 IWRC wire rope, it is important to consider the specific application and environment you will be using it in, as this will help you determine the right type of rope for the job. As a wire rope manufacturer, we offer a range of sizes and grades to choose from. For added protection, some 6×19 IWRC wire rope is available with a galvanized or stainless steel outer jacket, as well as other options such as vinyl coating and lubricated cores.
Whether it is used to construct a hoist, as a tow line for a boat, or as an anchor for a marine structure, 6×19 IWRC wire rope is designed to withstand even the toughest of outdoor conditions. With its superior breaking strength and durability, it is an ideal choice for many applications. So if you’re looking for a reliable and long-lasting rope for your next project, consider our 6×19 IWRC wire rope.
* 6x19 Galvanized Wire Rope
6×19 Galvanized Wire Rope gives the rope great rust and corrosion resistance, making it the perfect choice for exterior use or in wet conditions. It is also strong and abrasion resistant, allowing it to withstand high tension and pressure. This type of wire rope is often found in outdoor rigging applications such as marine, mining, and construction applications, as well as in agricultural equipment and barrier systems.
- Improved resistance to abrasion: The increased number and thickness of the wires that comprise 6x19 galvanized wire rope result in higher abrasion resistance.
- Enhanced corrosion resistance: The galvanizing process makes the rope highly resistant to corrosion, leading to a longer useful lifespan.
- Great versatility: 6x19 galvanized wire rope has a versatile application range, including overhead hoists, slings, rigging, and marine/dock line.
- Reduced flexibility: Formed of a higher number of wires and with a greater diameter, this type of wire rope is more resistant to kinking, making it an ideal choice for intense applications where it would be utilized under high pressure.
* 6x19 Ungalvanized Wire Rope
6×19 Ungalvanized Wire Rope is a versatile and strong wire rope option, ideal for a wide range of applications. Its flexibility and ease of use make it an ideal choice for a variety of uses such as slings, hoists, and rigging systems. It is often used as a standing rigging solution due to its smaller diameter and increased flexibility when compared to more traditional galvanized wire rope. The lack of galvanization also makes it better suited for applications where contact with water is possible. It is also typically less expensive than galvanized wire rope, making it a great economical choice for a variety of applications.
- Cost-Effective: 6x19 ungalvanized wire rope is a cost-effective option, making it a great choice for general applications that don't require galvanized protection.
- Durable: The rope features a construction of 19 strands which help to provide high breaking strength and resistance to abrasion.
- Flexible: 6x19 ungalvanized wire rope is a flexible rope, making it suitable for applications where flexibility is important such as when winches are used.
- High Tensile Strength: The 6x19 ungalvanized wire rope has a high tensile strength which makes it suitable for many types of industrial applications.
- Long Lasting: Due to the construction of 19 strands, the 6x19 ungalvanized wire rope can be expected to last many years if maintained properly.
* 6x19 Lubricate With Asphalt Wire Rope
The 6×19 Lubricate With Asphalt Wire Rope is a type of multi-strand wire rope that has been lubricated with asphalt. It is highly resistant to abrasion and corrosion and is commonly used in heavy-duty applications, such as winch lines, slings, and crane hoists.
- Low cost: Asphalt wire rope is a much more cost efficient option for 6x19 wire rope applications when compared to other lubricants.
- High strength: The unique lubricating properties of asphalt wire rope increase the strength of the rope, making it suitable for applications requiring increased tensile strength.
- Improved flexibility: Asphalt wire rope is known for its flexibility. It has excellent abrasion and fatigue resistance, allowing for improved flexibility and stability.
- Resistance to corrosion: Asphalt wire rope has good corrosion resistance properties and is resistant to many corrosive agents, which helps to extend the life of the rope.
- Reduced maintenance: Asphalt wire rope is easy to maintain and requires little maintenance when compared to other lubricants.
- Suitable for extreme temperatures: Asphalt wire rope can be used in both high and low temperatures, making it suitable for a wide variety of applications.
- Environmentally friendly: Asphalt wire rope has a low environmental impact compared to other lubricants. It is non-toxic and non-flammable, making it safe for use in many industries.
* 6x19 Wire Rope Specification & Weight Chart - IWRC & FC
Standard: GB/T 8918, EN 12385
Allowable diameter deviation: +0% ~ +5%
* Difference between 6x19 & 6x37 Wire Rope
The main difference between 6x19 wire rope and 6x37 wire rope is that the 6x19 wire rope is composed of 6 strands with 19 wires in each strand, while the 6x37 wire rope has 6 strands with 37 wires in each strand. 6x19 wire rope is commonly used in hoists, slings, and other applications where flexibility and fatigue resistance is required. 6x37 wire rope is more abrasion resistant and is usually used in elevator hoists, support lines, and winch drums.
Please see here for more information about the 6×37 wire rope.
* Packing & Delivery
As a China wire rope manufacturer, we know that packing and delivery are essential and important. We take great care to ensure that all of our wire ropes are properly packaged for delivery so that they arrive in perfect condition.
Our packing processes prioritize safety and quality control, aiming to prevent any possible damage to our products during transport. We use specialized wooden or steel reels with special materials from the environmental conditions commonly encountered during delivery.
Our delivery services are reliable and efficient, and we use experienced partners to provide international and domestic transportation. Thanks to these safe and dependable transportation methods, you can trust that your order of wire ropes from our Sich wire rope manufacturer will arrive on time and in the best condition.
FAQ
What are the benefits of a 6x19 wire rope?
How strong is a 6x19 wire rope?
What are the common applications of 6x19 wire rope?
What is the minimum order quantity for 6*19 wire rope?
What is the cost of 6*19 wire rope?
Why Choose the SichWirerope Wire Rope Manufacturer?
- High Quality Products
Our Sichwirerope manufacturer is experienced in the production of high quality wire ropes, including galvanized, stainless steel and PVC coated versions. With a dedication to quality, we ensure that our products meet international standards and are tested and certified by third-party inspection services.
- Competitive Prices
Our Sichwirerope manufacturer in China offers competitive prices based on the quality of the product and the quantity ordered. We strive to keep our prices competitive while still providing excellent quality, value and customer service.
- Innovative Solutions
As one of the largest wire rope manufacturer in China, we specialize in creating innovative products and customized solutions to meet the needs of our customers. We are committed to working closely with our customers to create unique products that meet their specific needs and requirements.
- Fast Lead Times
Our wire rope manufacturer in China is committed to offering fast lead times for all orders. We understand that our customers expect prompt and timely delivery of their products, so we strive to ensure that orders are dispatched in a timely manner. We also offer custom-made services for our customers who require custom sizes or specifications.
- Excellent Customer Service
Our team of dedicated customer service representatives is always available to assist with inquiries or queries regarding orders. We prioritize customer service and satisfaction, which is why we provide prompt and friendly responses to all enquiries.
Cases
Offshore Oil & Gas
Largr diameter cable-laid slings are used for the hoisting of part of an offshore oil platform.
Salvage Operations
Participated in the design & manufacturing of slings for Nanhai No.1 salvage operation.
Shipyards
Supplied CCS certified steel-ferrule-secured slings to Shandong Bohai Ferry Company
Ports & Container Terminals
Supplied slings, fittings and anti-typhoon products for Shenzhen Chiwan Container Terminal.
Petroleum Chemical Projects
Supplied slings for the redinery construction project of Nanhai Oil Company.
Power Plant Project
Supplied sling products for the Three Gorges projects & the hydropower facilities installation.
Global Contract Suppliers
> SichWirerope manufacturer the wire rope slings have been exported to more than 60 countries and districts such as Europe, Australia, South America, Japan, Southeast Asia, and the Middle East in the past 40 years.
> We attend the exhibition every year, such as the USA (Houston) International Petroleum Exhibition (OTC), and Guangzhou International Exhibition in China. So, we have signed contracts with various customers from different countries.
Certification
> The SichWirerope wire rope slings applicable standards: GB, EN, BS, DIN, AS, JIS, ASME, and WSTDA standards.
> We have got a CCS type certificate, DNV type certificate, CE certificate, GS certificate, CNAS national laboratory accreditation
> Supply CCS, DNV, ABS, BV, and other third-party testing services, issue certificates, and have many invention patents.
Testimonials
1. Certified quality - provides CCS, DNV, BV verification service
2. Durable and reliable slings - perfect for heavy duty use
3. Fast delivery and easy ordering process
4. Wide range of products to choose from
