In industrial lifting operations, safety and reliability depend on selecting the right Stainless Steel Cables for Lifting. These cables serve as the critical link between equipment and load, and their performance directly affects stability, durability, and regulatory compliance. Factors such as stainless steel grade (304 vs. 316), strand construction, core type, diameter, and working load limit must be carefully evaluated to match the specific application and environment. Choosing the correct specification ensures long-term performance, reduced downtime, and most importantly, safe and efficient lifting operations.
I. Introduction: Why Choosing the Right Stainless Steel Cables for Lifting Matters
In the world of industrial lifting operations, the margin for error is zero. The connection between the load and the lifting machine is the most critical point in the system, and the component that facilitates that connection—the wire rope—must be selected with the utmost precision. Whether in construction, marine environments, manufacturing plants, or food-processing facilities, selecting the right Stainless Steel Cables for Lifting directly impacts load stability, equipment lifespan, and operational safety. A failure in this component is not merely a mechanical breakdown; it is a catastrophic safety hazard that can lead to loss of life, extensive property damage, and significant regulatory repercussions.
The market offers a plethora of options, from galvanized steel to synthetic ropes, but stainless steel variants stand out for their unique combination of strength and environmental resistance. However, not all stainless steel cables are created equal. The grade of the steel, the construction of the strands, the type of core, and the diameter all play crucial roles in determining whether a cable is fit for a specific purpose. Using a cable ill-suited for a marine environment can lead to rapid corrosion and unexpected failure, while using a rigid, low-flexibility cable in a complex pulley system can lead to premature wear and breakage.
This comprehensive guide explains how to evaluate materials, construction types, load capacity, environmental conditions, and compliance standards. By the end of this article, you will possess the technical knowledge required to choose the most suitable Stainless Steel Cables for Lifting for your specific needs, ensuring long-term safety, efficiency, and regulatory compliance.
II. What Are Stainless Steel Cables for Lifting?
A. Definition and Basic Structure
At its most fundamental level, a stainless steel cable is a machine comprised of multiple individual components working in unison. It is made from multiple strands of stainless steel wires twisted around a central core in a helical pattern. This complex construction is what differentiates a wire rope from a simple solid steel bar; the twisted design allows the cable to be flexible enough to bend around drums and sheaves while maintaining exceptional tensile strength to support heavy loads.
The terminology is specific: a “wire” is a single metal filament. A specific number of these wires are spun together to form a “strand.” Finally, several strands are laid helically around a “core” to form the completed “wire rope.” This engineered structure is designed specifically for load-bearing and lifting applications, engineered for strength, flexibility, and corrosion resistance.

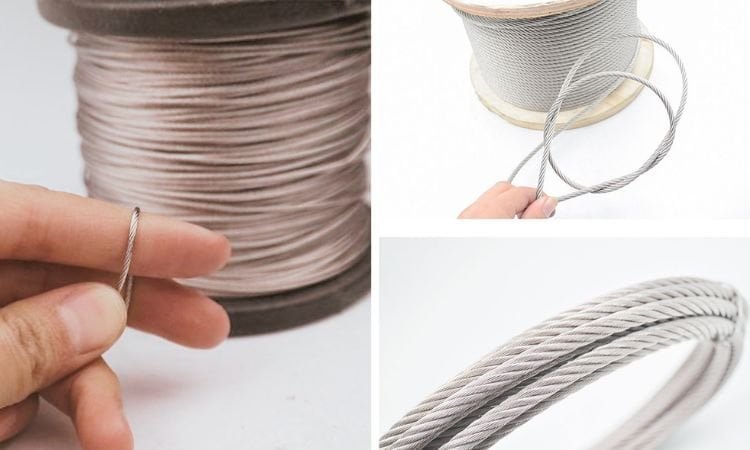

B. Common Applications of Stainless Steel Cables for Lifting
The versatility of these cables makes them indispensable across a wide spectrum of industries. Understanding these applications helps to contextualize the specific requirements we will discuss later.
- Crane and Hoist Systems: In industrial settings, overhead cranes, gantry cranes, and jib hoists rely on stainless steel wire ropes for lifting raw materials, finished goods, and machinery. The cables must withstand repeated bending and high static loads.
- Marine and Offshore Lifting: On ships, oil rigs, and dockside cranes, cables are exposed to saltwater spray and high humidity. Here, Stainless Steel Cables for Lifting are preferred for mooring operations, cargo handling, and lifting supplies to offshore platforms.
- Food-Grade Lifting Equipment: In food processing plants and pharmaceutical facilities, hygiene is paramount. Stainless steel’s non-porous surface resists bacterial growth and is easy to sanitize, making it the standard for lifting equipment that must operate in cleanrooms or near food products.
- Architectural and Structural Lifting: Sometimes, the lifting equipment is part of the permanent structure. Stainless steel cables are used in the installation of heavy architectural elements, suspension systems, and even in theatre rigging for lifting lighting and sound equipment.
- Industrial Rigging and Material Handling: In general manufacturing, assembly lines, and warehouses, these cables are used for pulling, lifting, and securing heavy loads during the production and shipping process.
III. Why Choose Stainless Steel Cables for Lifting Instead of Galvanized or Synthetic Options?
When planning a lifting operation, engineers often choose between three main material categories: galvanized carbon steel, synthetic fiber ropes, and stainless steel. While each has its place, stainless steel offers distinct advantages that justify its selection in demanding environments.

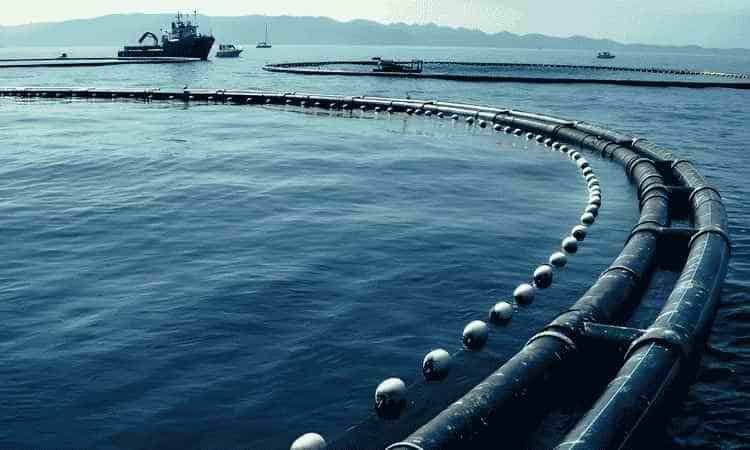

A. Superior Corrosion Resistance
The most significant advantage of stainless steel is its metallurgical composition. Unlike galvanized steel, which relies on a thin zinc coating that can wear off over time, stainless steel contains chromium. This chromium reacts with oxygen to form a passive layer of chromium oxide on the surface. If the surface is scratched, this layer reforms, providing “self-healing” protection.
- Ideal for marine, chemical, and humid environments: In shipyards or chemical plants where corrosive agents are airborne or present in wash-down water, stainless steel remains intact.
- Resistant to rust, oxidation, and moisture damage: This ensures that the cable does not seize up or lose its mechanical properties due to environmental degradation.
- Longer service life in harsh conditions: While the initial cost may be higher, the extended lifespan reduces the total cost of ownership by minimizing replacement frequency and downtime.

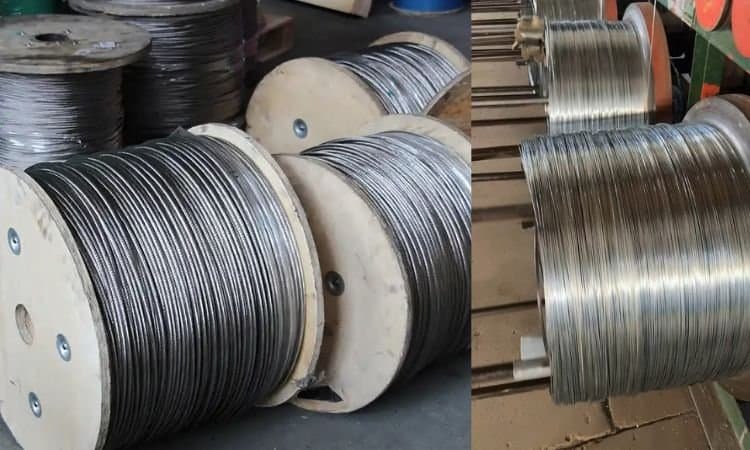

B. High Strength-to-Weight Ratio
Synthetic ropes have improved dramatically, but for applications requiring a combination of thin diameter and high strength, Stainless Steel Cables for Lifting remain the benchmark.
- Excellent load capacity: Stainless steel cables, such as those with a tensile strength of 1570 MPa or higher, can handle massive loads relative to their diameter.
- Reliable performance under heavy lifting: Steel does not stretch or degrade under UV light the way some synthetics do, ensuring consistent performance over years of service.
C. Hygiene and Cleanliness
In regulated industries, material choice is dictated by contamination control.
- Suitable for food processing and pharmaceutical industries: Stainless steel is non-toxic and does not harbor bacteria. Unlike fiber cores in some ropes, stainless steel cables (depending on core type) do not absorb liquids, preventing mold or contamination.
- Easy to clean and maintain: They can be subjected to high-pressure wash-downs, steam cleaning, and harsh chemical sanitizers without degrading.
D. Aesthetic and Architectural Benefits
While performance is key in lifting, aesthetics matter in visible applications.
- Maintains polished appearance: Stainless steel retains a clean, professional look that galvanized steel loses as it weathers.
- Used in visible structural lifting systems: In architectural applications where the rigging is visible, such as in modern museums or atriums, the clean lines of stainless steel are preferred.
IV. Key Factors to Consider When Choosing Stainless Steel Cables for Lifting
This section forms the core of the decision-making process. Selecting the wrong specification here can lead to mechanical failure or unnecessary expenditure.

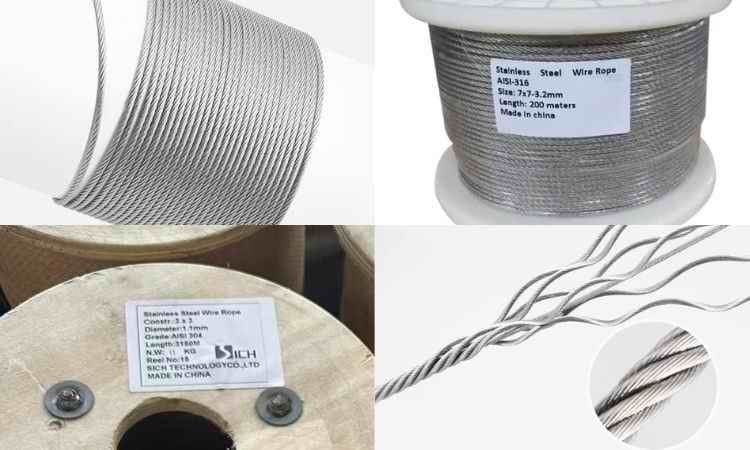

A. Stainless Steel Grade (304 vs 316)
The grade of stainless steel dictates its chemical resistance and, to some extent, its mechanical properties. The two most common grades for lifting are 304 and 316.
1. 304 Stainless Steel Cables for Lifting
- Good corrosion resistance: Suitable for most inland industrial environments, indoor applications, and dry climates.
- Cost-effective: It is the standard economic choice for general-purpose lifting where corrosive elements are not a primary concern.
- Suitable for indoor or low-corrosion environments: Ideal for warehouses, assembly lines, and construction sites away from coastal influences.
2. 316 Stainless Steel Cables for Lifting
- Enhanced resistance to chlorides and saltwater: The addition of molybdenum to the alloy gives 316 superior resistance to pitting and crevice corrosion caused by chlorides (like salt).
- Ideal for marine and offshore lifting: If the cable will be used on a boat, near an ocean, or in a facility that uses de-icing salts, 316 is the mandatory choice.
- Recommended for chemical exposure: In water treatment plants or chemical processing facilities, 316 withstands aggressive media better than 304.

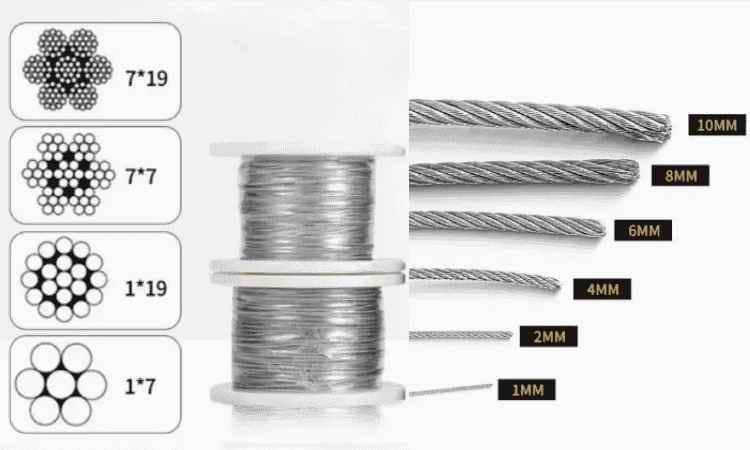

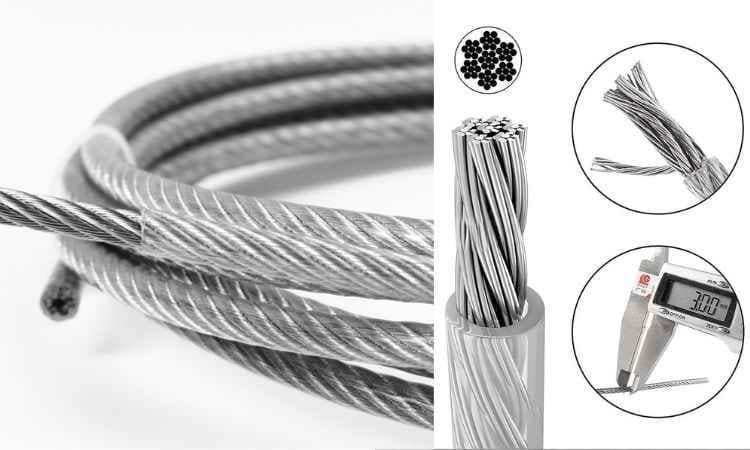

B. Cable Construction (Strand Configuration)
The way the wires and strands are arranged affects the cable’s flexibility and fatigue life.
- 7×7 Construction: This configuration consists of 7 strands, each made of 7 wires (49 wires total). It offers moderate flexibility and medium strength. It is a good compromise for applications like light hoists and control systems where the cable does not need to bend sharply.
- 7×19 Construction: This is the workhorse of the lifting industry. With 7 strands of 19 wires each (133 wires total), it provides high flexibility . This flexibility allows it to bend easily around small pulleys and drums, making it the most common choice for cranes, winches, and marine lifting where the cable spools onto a drum .
- 1×19 Construction: This is a stiff, rotation-resistant construction of a single strand of 19 wires. While it has very high strength, it is not suitable for dynamic lifting over pulleys because it will kink and fatigue rapidly. It is better suited for guy wires, structural stays, or static lifting applications.
The construction affects how the cable handles dynamic loads. A 7×19 cable distributes stress across many small wires, which increases fatigue resistance compared to a construction with fewer, thicker wires .
C. Diameter and Load Capacity (Working Load Limit)
Selecting the correct diameter is a matter of mathematics, not guesswork. Two critical terms define the capacity:

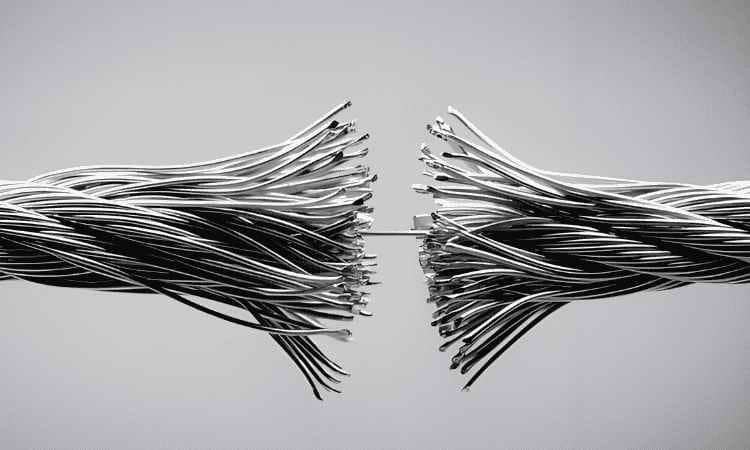

- Minimum Breaking Load (MBL): This is the calculated force at which the cable is expected to break during a laboratory test. It is a theoretical maximum, not an operational limit. For example, a 6mm 7×19 316 cable might have an MBL of around 2,086 kg.
- Working Load Limit (WLL): This is the maximum mass that the cable is authorized to support in normal service. It is always significantly lower than the MBL.
- Safety Factors: The WLL is derived by dividing the MBL by a safety factor. Industry standards (like OSHA and ASME) typically require a safety factor of 5:1 for general lifting applications . This means the cable must be five times stronger than the maximum load you intend to lift.
- Example: If a stainless steel cable has a breaking strength of 10,000 lbs and a 5:1 safety factor is applied, the working load limit would be 2,000 lbs. For personnel lifting, safety factors are much higher (often 10:1), as noted in some theatrical and confined space rescue equipment.

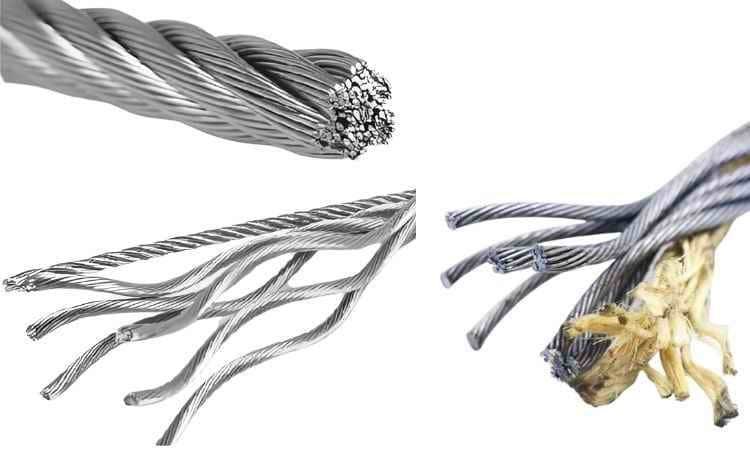

D. Core Type: Fiber Core vs Steel Core
The core supports the outer strands and affects the rope’s characteristics.
- Fiber Core (FC): Made from natural or synthetic fibers. It provides a flexible rope that is easier to handle, but it has lower crush resistance and less strength. It also cannot be used in high-temperature environments. It is suitable for light-duty lifting where flexibility is key.
- Independent Wire Rope Core (IWRC): This core is itself a small wire rope (often a 7×7 construction). It provides maximum strength, higher crush resistance, and supports the outer strands against deformation when the rope is under heavy load and bending against a sheave . For heavy lifting operations, such as in mobile cranes or overhead cranes, an IWRC is essential to prevent the rope from being deformed and failing prematurely.
E. Environmental Conditions
Beyond basic corrosion, evaluate the specific operating environment. Selecting the proper Stainless Steel Cables for Lifting based on environmental factors prevents premature failure.
- Marine/Saltwater Exposure: Mandates the use of 316 stainless steel.
- High-Temperature Environments: Standard stainless steel can handle elevated temperatures, but extreme heat (above 400°C) can affect the metallurgy. Special grades or coatings may be needed.
- Chemical Exposure: Identify the specific chemicals. While 316 is good against chlorides, concentrated acids may require different alloys.
- Abrasive Conditions: If the cable drags across rough surfaces, consider a construction like 7×19 or 6×36 with larger outer wires to resist wear.
V. Safety Considerations When Using Stainless Steel Cables for Lifting
Safety is not just about the initial purchase; it is a continuous process of inspection and proper usage.
A. Regular Inspection Guidelines
OSHA and ASME B30 standards mandate regular inspections. Operators should look for:
- Broken wires: A certain number of broken wires within a lay length usually signals the end of the rope’s service life.
- Kinks and bird-caging: These are signs of severe mechanical damage, usually from improper handling or shock loading. A kinked rope is permanently damaged and must be replaced immediately.
- Corrosion spots: While stainless steel resists rust, it is not immune. Pitting corrosion indicates chemical attack and weakens the wire.
- Diameter reduction: Steel ropes wear down with use. A significant reduction in diameter (usually 5-10%) indicates that the internal wires are breaking down or the core has collapsed.
B. Proper Installation
Even the best cable will fail if installed poorly.
- Correct drum spooling: The rope must spool onto the drum evenly to avoid crushing lower layers.
- Avoiding sharp bends: Bending a rope too sharply (less than the recommended minimum bend radius) puts immense stress on the wires .
- Proper termination fittings: Using the wrong swage fitting or clamp can reduce the rope’s effective strength by up to 20%. Use manufacturer-approved fittings like thimbles to protect eyes from abrasion .
C. Compliance and Certification
Always ensure the cable meets regulatory standards. Improper cable selection increases the risk of catastrophic load failure.
- OSHA requirements: Govern general workplace safety, including wire rope slings.
- ASME B30 standards: Provide detailed safety standards for cableways, cranes, derricks, hoists, and rigging.
- ISO and EN certifications: Global standards like ISO or specific European Norms (e.g., EN 12385) ensure the product meets international quality benchmarks.
VI. Common Mistakes When Selecting Stainless Steel Cables for Lifting
Even experienced buyers can fall into these traps:
- Choosing based on price alone: Opting for a cheaper 304 cable for a marine application will lead to rusting and failure within months, costing far more in replacement and downtime than the premium paid for 316 upfront.
- Ignoring safety factors: Attempting to lift a load exactly at the MBL is a recipe for disaster. The safety factor accounts for dynamic forces, wear, and material inconsistencies.
- Using 304 in marine environments: As highlighted, this is the most common and expensive mistake. The chloride in saltwater will eventually cause stress corrosion cracking in 304.
- Underestimating dynamic loads: The force of a sudden stop (shock loading) can be two or three times the static weight of the load. The safety factor must account for this.
- Failing to match cable flexibility with pulley system: Using a stiff 1×19 cable on a small winch drum will cause the cable to develop “high strand” conditions and bird-caging, leading to rapid failure.
VII. How to Calculate the Right Stainless Steel Cables for Lifting
Follow this step-by-step guide to make an informed procurement decision:
- Determine maximum load weight: What is the heaviest load you will lift?
- Identify lifting frequency (static vs dynamic): Is this a one-off static lift, or will the cable be cycled over pulleys thousands of times? Dynamic lifts require more flexible constructions like 7×19 or 6×36.
- Evaluate environmental exposure: Is it indoors (dry), outdoors (wet), coastal (salt), or chemical (specific agents)? This dictates 304 vs 316.
- Select appropriate safety factor: General industrial lifting usually requires a 5:1 safety factor. Personnel lifting requires 10:1. Check your local regulations (OSHA/ASME).
- Confirm diameter and construction: Use manufacturer load tables. Find a cable where the WLL (MBL / Safety Factor) meets or exceeds your maximum load. Ensure the construction is flexible enough for your sheave diameters.
- Verify compliance standards: Request certification showing the cable meets ASTM, ASME, or EN 12385 standards.
VIII. Industry Applications of Stainless Steel Cables for Lifting
A. Construction and Infrastructure
In building bridges and high-rises, Stainless Steel Cables for Lifting are used in tower cranes to lift steel beams, concrete buckets, and rebar. The cables must be robust to handle abrasion from concrete and rough terrain .

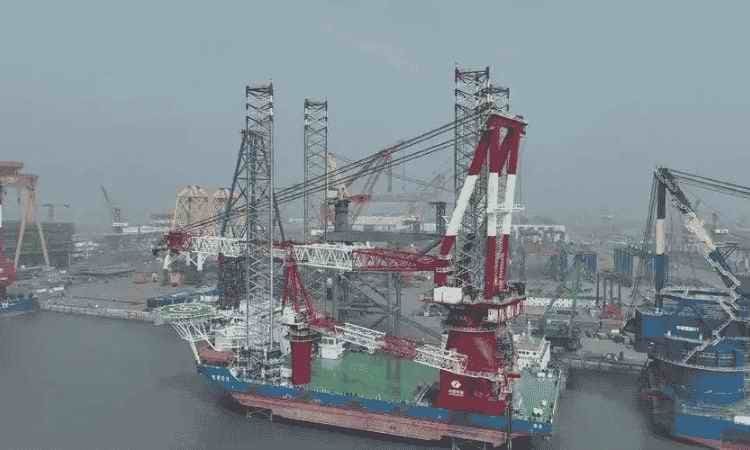

B. Marine and Offshore Operations
This is the domain of 316 stainless steel cable. Used for launching lifeboats, lifting supplies onto rigs, and operating shipboard cranes, these cables face the harshest corrosive conditions on earth .
C. Food and Pharmaceutical Industries
In these cleanrooms, lifting equipment must not contaminate the product. Stainless steel cables (often with sealed constructions to prevent particle trapping) are used to lift mixing vats, hopper ingredients, and packaged goods .
D. Manufacturing and Automation
In automated factories, these cables are integral to robotic arms and material handling systems. Their precision and strength ensure consistent performance in repetitive lifting cycles .
E. Architectural and Specialized Lifting Systems
Theatres use stainless steel cables to fly sets and lighting trusses. The reliability and non-reflective nature (in certain finishes) make them ideal for performance environments where failure is not an option.
IX. Maintenance Tips to Extend the Life of Stainless Steel Cables for Lifting
Preventive maintenance is the key to maximizing return on investment.
- Routine inspection schedule: Log inspections daily for frequently used cables and monthly for occasional use. Look for broken wires and corrosion.
- Proper cleaning: In salt environments, rinse the cable with fresh water regularly to remove salt deposits that can eventually pit even 316 stainless steel.
- Avoid overloading: Never exceed the WLL. Use a dynamometer or load cell if the load weight is uncertain.
- Correct storage methods: Store spare cables off the ground, covered, and in a dry environment to prevent contact with corrosive agents before they are even used.
- Lubrication when applicable: While stainless steel is corrosion-resistant, lubrication between strands reduces internal friction and wear, extending fatigue life. Use lubricants specifically designed for wire rope.
X. Conclusion: Selecting the Best Stainless Steel Cables for Lifting Ensures Long-Term Safety and Performance
Choosing the correct Stainless Steel Cables for Lifting is a technical exercise that balances mechanical requirements with environmental realities. It is a decision that goes far beyond simply picking a cable that looks strong enough. The selection process demands a thorough understanding of the specific application’s demands—from the chemical composition of the environment to the mechanical stresses of the lifting path.
To recap, the material grade matters immensely: 304 serves well in controlled environments, while 316 is non-negotiable for marine and chemical exposure. The construction impacts flexibility and durability: 7×19 remains the standard for dynamic lifting over sheaves, while 6×36 offers even greater flexibility for complex systems . Load capacity must match safety requirements, with a strict adherence to the Working Load Limit derived from a robust safety factor. Finally, the environment determines the longevity of the product; matching the cable to the conditions prevents premature and dangerous failure. Investing in the correct high-quality stainless steel cable is an investment in operational uptime, worker safety, and long-term cost savings. If you are unsure which Stainless Steel Cables for Lifting best suit your application, consult with a certified wire rope specialist to ensure optimal performance and compliance with all relevant safety standards.
