How to Choose the Right Wire Rope for Crane Operation

Table of Contents

In the complex and high-stakes world of lifting operations, the wire rope for cranes is more than just a piece of equipment—it is the critical connection that ensures safety, efficiency, and reliability. From the busy ports with salt-laden air to the challenging offshore platforms and the diverse industrial settings, choosing the right wire rope is a decision that directly impacts the success of operations and the protection of personnel and property. This article serves as a comprehensive guide, delving into the key factors that influence the selection of crane wire ropes, including load requirements, flexibility, structural designs, core types, and environmental resistance. It also provides tailored recommendations for different scenarios such as ports, offshore locations, and industrial sites, along with essential maintenance and inspection practices. Whether you are involved in port operations, offshore lifting, or industrial crane use, this guide equips you with the knowledge needed to make informed decisions when it comes to finding the perfect wire rope for your specific needs.

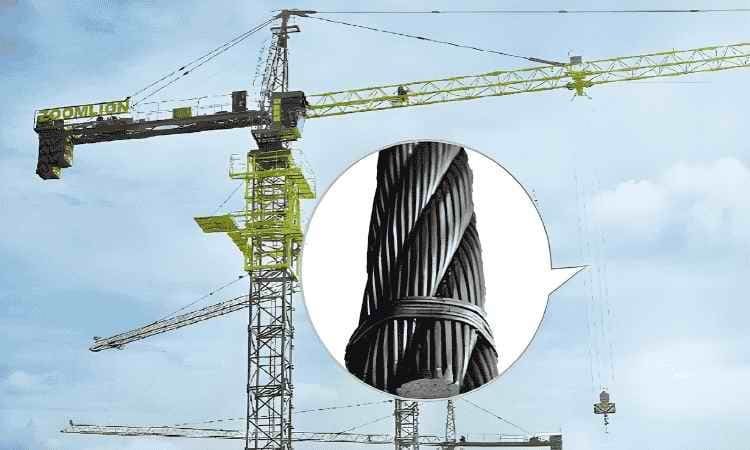

lifting operations

I. Introduction: The Critical Importance of Selecting the Right Wire Rope for Cranes

In the intricate ecosystem of crane operations, Wire Rope for Cranes stands as the unsung hero—the critical link that transforms mechanical energy into the precise, controlled movement of heavy loads. It is far more than a simple component; it is the lifeline that dictates the safety, efficiency, and reliability of every lift, from the smallest pallet in a warehouse to massive shipping containers in a bustling port. Without a properly selected Wire Rope for Cranes, even the most advanced crane becomes a dormant, ineffective machine—one that poses significant risks to both personnel and property.

The consequences of choosing the wrong Wire Rope for Cranes are not just operational; they are potentially catastrophic. A rope that lacks the necessary tensile strength for a given load can snap under pressure, sending tons of cargo plummeting. A rope ill-suited to withstand corrosion in a saltwater environment will degrade prematurely, weakening gradually until it fails without warning. In busy industrial settings, a rope that cannot handle frequent bending cycles will develop fatigue cracks, leading to unexpected downtime that disrupts production schedules and inflates costs. For example, in a coastal port, a standard steel rope without corrosion protection might last only 6-8 months before rust compromises its integrity, whereas a properly galvanized or stainless steel Wire Rope for Cranes could endure 2-3 years under the same conditions—saving thousands in replacement costs and avoiding costly delays.

What makes selecting the right Wire Rope for Cranes so challenging is the sheer diversity of operating environments and applications. A rope that performs flawlessly in the dry, controlled atmosphere of a manufacturing plant will quickly deteriorate in the humid, chemical-laden air of a refinery. A rope designed for steady, vertical lifts in a construction yard may not survive the constant twisting and swinging demands of an offshore crane. The idea of a “universal” wire rope is a dangerous myth; each crane, each task, and each environment demands a Wire Rope for Cranes that is uniquely tailored to its specific challenges.

This guide is designed to demystify the process of selecting Wire Rope for Cranes. It breaks down the essential factors that influence this decision, from the rope’s structural design and core type to its ability to resist corrosion, abrasion, and extreme temperatures. It also provides targeted recommendations for the most demanding settings—ports, offshore platforms, and industrial facilities—helping you navigate the complexities of choosing a rope that balances safety, durability, and performance. By the end, you will have the knowledge to make informed decisions that protect your team, your equipment, and your bottom line.

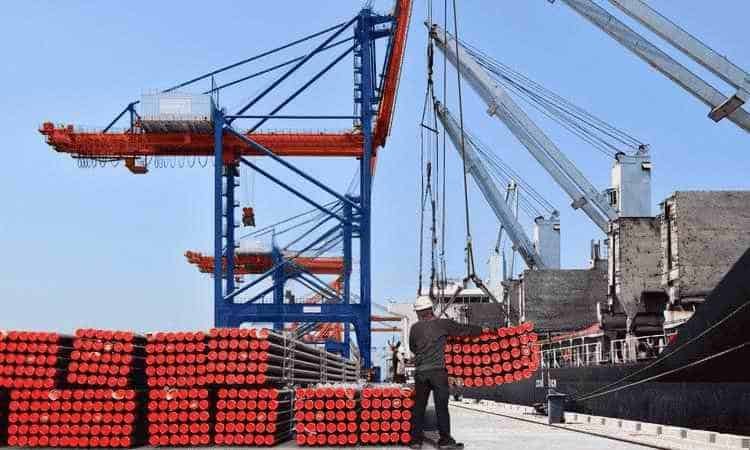

Wire Rope for Cranes 2

II. Key Factors in Choosing Wire Rope for Cranes

Selecting the optimal Wire Rope for Cranes requires a deep understanding of how its design and material properties interact with the specific demands of your application. It is not enough to know the weight of the load; you must also consider how the rope will move, what environmental forces it will face, and how often it will be subjected to stress. Below are the critical factors that will guide your decision.

1. Load Requirements and Safety Margins for Wire Rope for Cranes

At the heart of any Wire Rope for Cranes selection is its ability to handle the loads it will lift—safely and consistently. Two key metrics define this capability: the Working Load Limit (WLL) and the Minimum Breaking Load (MBL). The WLL is the maximum weight that the rope is certified to lift under normal operating conditions, as specified by the manufacturer and industry standards. The MBL, on the other hand, is the absolute maximum force that the rope can withstand before it breaks.

The difference between these two values is the safety factor—a non-negotiable buffer that ensures the rope never operates near its breaking point. Industry standards, such as ISO 4309 and ASME B30.5, mandate a minimum safety factor of 5:1 for most crane applications. This means that the MBL of the chosen Wire Rope for Cranes must be at least five times greater than the maximum load it will regularly lift. For high-risk operations—such as lifting personnel, hazardous materials, or loads in unstable conditions—the safety factor increases to 6:1 or higher. For example, if your crane regularly lifts 20-ton containers, the Wire Rope for Cranes must have an MBL of at least 100 tons (20 tons × 5) to meet the minimum safety standard.

But static loads are only part of the equation. Dynamic forces—sudden shifts in weight, swinging loads, or rapid acceleration/deceleration—can significantly increase the tension on the rope. A load that swings due to wind or vessel movement, for instance, can create forces that double or even triple the static weight. This means that even a rope with a 5:1 safety factor for static loads may need a higher MBL to account for these dynamic spikes. Ignoring dynamic forces is a dangerous oversight that can lead to rope failure, even if the static load is within the WLL.

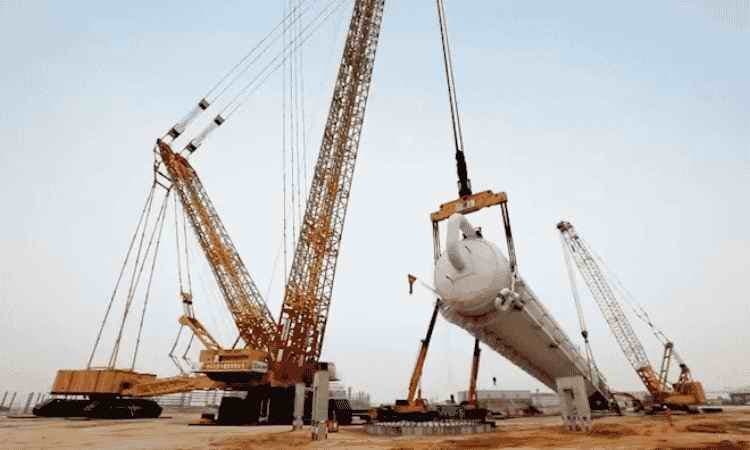

Load Requirements

2. Flexibility vs. Wear Resistance in Wire Rope for Cranes

Wire Rope for Cranes must strike a delicate balance between two seemingly opposing traits: flexibility and wear resistance. These properties are largely determined by the rope’s construction, and choosing the right balance is critical to ensuring longevity and performance.

Flexibility refers to the rope’s ability to bend repeatedly over sheaves, pulleys, and drums without sustaining internal damage. A flexible rope can conform to curved surfaces under tension, reducing the risk of fatigue cracks in the wires. This is particularly important in cranes with complex reeving systems—such as overhead bridge cranes or tower cranes—where the rope winds and unwinds from a drum hundreds or even thousands of times per day. Flexibility is enhanced by a higher number of strands and finer individual wires. For example, the 6×37 design (6 strands, 37 wires per strand) and the 7×19 design (7 strands, 19 wires per strand) are known for their flexibility, making them ideal for applications where frequent bending is unavoidable. The fine wires in these designs distribute bending stress more evenly, minimizing the risk of internal fractures that can lead to premature failure.

Wear resistance, by contrast, is determined by the thickness of the outer wires and the rope’s surface hardness. Thicker outer wires create a more robust barrier against abrasion, which occurs when the rope rubs against sheaves, drums, or the load itself. This is crucial in environments where the rope is in constant contact with hard surfaces—such as ports, mining operations, or construction sites. The 6×19 design (6 strands, 19 wires per strand) is a prime example of a wear-resistant rope: its fewer, thicker wires can withstand the friction and abrasion of heavy, repetitive use. In applications where the rope drags across rough surfaces or handles abrasive materials like gravel or ore, a wear-resistant design can extend service life by 50% or more compared to a more flexible, fine-wire rope.

The choice between flexibility and wear resistance depends on your crane’s specific operation. If your crane has a simple reeving system with large sheaves and infrequent bending, a wear-resistant rope (like 6×19) will likely be more durable. If your crane has a complex system with small sheaves and frequent bending cycles, a flexible rope (like 6×37 or 7×19) will resist fatigue better. In some cases, a hybrid design—such as 8x36WS—can offer a middle ground, providing adequate flexibility for bending while maintaining sufficient wear resistance for demanding conditions.

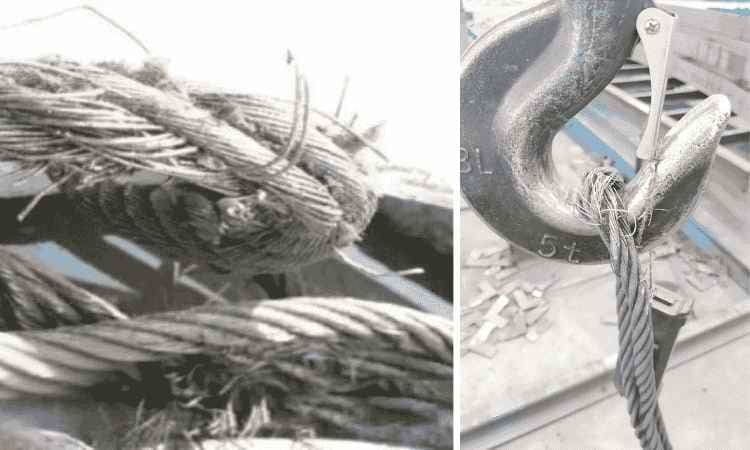

abrasion resistance

3. Structural Designs of Wire Rope for Cranes

The structural design of a Wire Rope for Cranes—defined by the number of strands, the arrangement of wires within those strands, and the presence of specialized features like filler wires—directly impacts its performance. Each design is engineered to excel in specific applications, making it essential to understand the strengths of common configurations.

  • 6x25Fi (Filler Wire): This design incorporates small filler wires between the six main strands, creating a denser, more compact cross-section. The filler wires help distribute stress evenly across the rope, reducing fatigue caused by repeated bending. This makes 6x25Fi an excellent choice for high-cycle applications, such as container cranes in ports, where the rope bends over sheaves dozens of times per hour. Its compact structure also resists crushing when wound tightly on a drum, a common issue in multi-layer winding systems.
  • 8x36WS (Warrington-Seale): A sophisticated hybrid design, 8x36WS combines a Warrington pattern (alternating thick and thin wires within each strand) with a Seale pattern (larger core wires). This combination delivers high strength and good flexibility, making it ideal for dynamic lifting applications—such as offshore cranes handling swinging loads or mobile cranes with variable boom angles. The eight strands enhance rotational stability, reducing the risk of the rope twisting under unbalanced loads.
  • 6×19: Often called the “workhorse” of wire ropes, 6×19 features six strands with 19 relatively thick wires each. Its simplicity translates to durability and cost-effectiveness, with thick wires providing excellent resistance to abrasion. This design is widely used in general-purpose cranes—from construction sites to factories—where wear from contact with drums and sheaves is a primary concern.
  • 7×19: With seven strands of 19 fine wires each, 7×19 offers exceptional flexibility. It can bend sharply over small-diameter pulleys or winch drums without kinking, making it perfect for precision lifting tasks like jib cranes or auxiliary hoists. Its flexibility also makes it easier to handle during installation and maintenance.
  • 6×37: This versatile design balances flexibility and strength with six strands of 37 thin wires. 6×37 is well-suited for applications requiring frequent bending cycles, such as overhead bridge cranes in warehouses or manufacturing facilities. The fine wires distribute bending stress evenly, delaying the onset of fatigue and extending the rope’s service life.
  • 34×7 or 36×7 (Rotation-Resistant): Designed specifically to minimize twisting, these ropes feature multiple small strands arranged in a way that counteracts torsional forces. They are ideal for lifting long, slender loads—such as drill pipes, wind turbine blades, or structural steel—where rotation could cause dangerous kinking or tangling. While less common than other designs, rotation-resistant ropes are critical in offshore and heavy industrial applications.

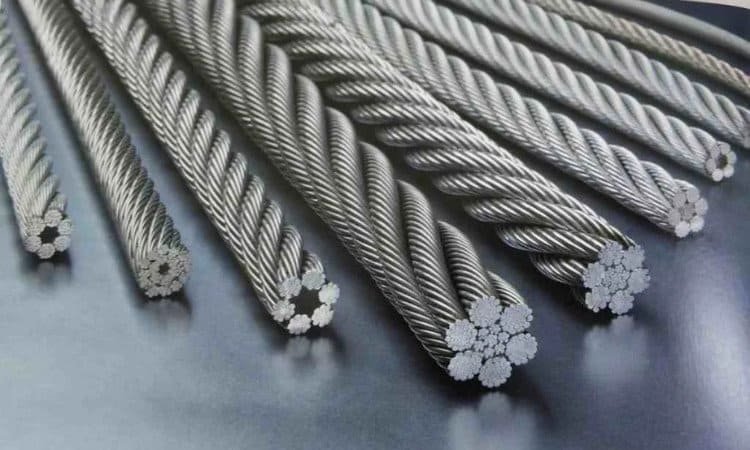

Structural of Wire Rope 2

4. Core Types: Independent Wire Rope Core vs. Fiber Core in Wire Rope for Cranes

The core of a Wire Rope for Cranes—the central element around which the strands are wrapped—plays a vital role in determining its strength, flexibility, and resistance to environmental factors. The two primary core types are Independent Wire Rope Core (IWR) and Fiber Core (FC), each with distinct advantages and limitations.

  • Independent Wire Rope Core (IWR): As the name suggests, an IWR core is made from a separate, smaller-diameter wire rope. This design provides superior strength and rigidity compared to fiber cores, allowing the rope to handle heavier loads and resist crushing when wound tightly on a drum— a common issue in multi-layer winding systems. IWR cores also offer excellent resistance to high temperatures, making them ideal for use in steel mills, foundries, or other environments where heat could melt a fiber core.

The trade-off for this strength is reduced flexibility. IWR core ropes are stiffer than fiber core ropes, making them less suitable for applications involving frequent tight bends over small sheaves. They are, however, the preferred choice for heavy-duty cranes, such as those used in mining or construction, where load capacity and durability are paramount.

  • Fiber Core (FC): Fiber cores are made from either natural fibers (like hemp or sisal) or synthetic fibers (like polypropylene or polyester). Natural fibers have been used for decades, but synthetic fibers are now more common due to their superior resistance to moisture, rot, and chemicals.

Fiber cores provide several key benefits: they add elasticity to the rope, helping absorb shock loads and reduce stress on the outer wires during sudden lifts or impacts; they act as a reservoir for lubricant, slowly releasing it over time to reduce internal friction; and they make the rope lighter and more flexible than IWR core ropes. This flexibility makes FC ropes ideal for light to medium-duty applications, such as overhead cranes in warehouses, small mobile cranes, or winches with frequent bending cycles.

However, fiber cores have limitations: they are less resistant to crushing than IWR cores, making them unsuitable for multi-layer drum winding; they can degrade under high temperatures (natural fibers may burn, while synthetic fibers can melt); and they absorb moisture, which can lead to internal corrosion if not properly maintained. For these reasons, FC ropes are not recommended for heavy loads, high-heat environments, or applications where the rope is submerged in water.

In some cases, a hybrid core—such as a wire strand core (WSC), which uses a single strand of wire instead of a full rope—can offer a middle ground, providing more strength than a fiber core while maintaining greater flexibility than an IWR core. However, WSC cores are less common and typically used in specialized applications.

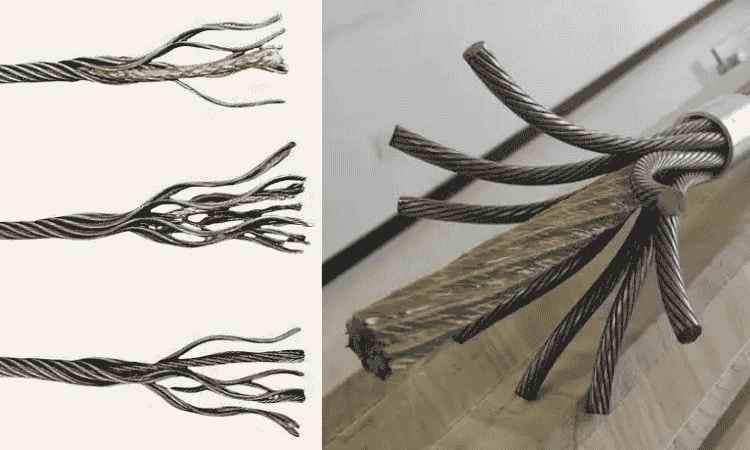

Core Type

5.

Wire Rope for Cranes operates in some of the harshest environments on Earth, from saltwater-saturated ports to dusty mining sites to chemical-laden factories. Environmental factors like moisture, corrosion, temperature, and abrasion can drastically accelerate rope degradation, making environmental resistance a critical selection criterion.

  • Corrosion Resistance: Moisture, salt, and chemicals can cause steel wires to rust, weakening their structural integrity over time. Galvanized ropes—coated with a layer of zinc—provide effective protection in moderately corrosive environments, such as coastal ports or humid warehouses. The zinc acts as a sacrificial barrier, corroding before the underlying steel. For highly corrosive environments—such as offshore oil rigs, chemical plants, or saltwater immersion—stainless steel ropes (alloyed with chromium) are necessary. Stainless steel forms a passive oxide layer that resists rust, even in constant contact with saltwater. While more expensive, stainless steel ropes can last 3-5 times longer than galvanized ropes in extreme conditions.
  • Chemical Resistance: In facilities handling acids, alkalis, or solvents, standard steel ropes can suffer rapid degradation. Stainless steel ropes offer inherent resistance to many chemicals, but for extreme cases, plastic-coated ropes (with a PVC or polyurethane jacket) provide an additional physical barrier, shielding the steel wires from direct contact with corrosive substances.
  • Temperature Resistance: High temperatures—such as those in foundries or near furnaces—can weaken steel, melt fiber cores, and degrade lubricants. IWR core ropes are better suited for high-heat environments, as their steel cores can withstand temperatures up to 400°F (204°C) without melting. For even higher temperatures, specialized heat-resistant ropes (with nickel-plated wires or ceramic coatings) may be required. In cold environments—such as Arctic ports or freezers—natural fiber cores can become brittle, making synthetic fiber cores (like polypropylene) a better choice for maintaining flexibility.
  • Abrasion Resistance: Dust, sand, gravel, and ore can act like sandpaper on a rope’s surface, wearing down the outer wires and reducing its diameter. Thick-wire designs (like 6×19) are more resistant to abrasion than fine-wire designs, as their larger cross-section can withstand more wear before losing strength. Plastic coatings can also provide a sacrificial layer, protecting the steel wires from direct contact with abrasive materials. Regular lubrication is another key defense against abrasion, as it reduces friction between wires and between the rope and sheaves.

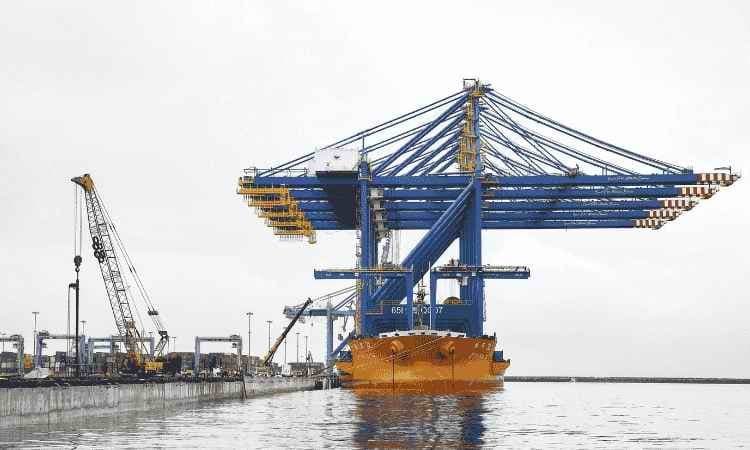

Environmental Resistance in Wire Rope

III. Wire Rope for Cranes: Port-Specific Solutions

Ports are among the most demanding environments for Wire Rope for Cranes. The combination of saltwater mist, heavy loads, constant movement, and abrasive contact creates a perfect storm of stressors, requiring ropes engineered for maximum durability and corrosion resistance.

1.Port Environments: What Wire Rope for Cranes Must Withstand

Port cranes—including ship-to-shore (STS) gantry cranes, rubber-tired gantry (RTG) cranes, and mobile harbor cranes—face a unique set of challenges:

  • Corrosion: Saltwater mist and high humidity create an aggressive electrochemical environment that accelerates rust. Even a small amount of salt can penetrate wire strands, causing internal corrosion that is difficult to detect until it’s too late.
  • High-Cycle Fatigue: A single STS crane can perform 200-300 lift cycles per day, each involving multiple bends over sheaves and drums. This constant bending induces metal fatigue, which can lead to internal wire fractures over time.
  • Heavy Loads: Containers weighing 20-40 tons are standard, with some cranes handling loads up to 100 tons. These heavy loads create high tension, increasing stress on the rope’s wires.
  • Abrasion: Ropes rub against container corners, sheave flanges, and guide rollers during lifts, wearing down the outer wires. In multi-rope systems, adjacent ropes can also abrade each other.
  • Dynamic Forces: Ships move constantly at berth due to waves and wind, causing suspended loads to swing. This creates sudden, unpredictable tension spikes that test the rope’s strength.

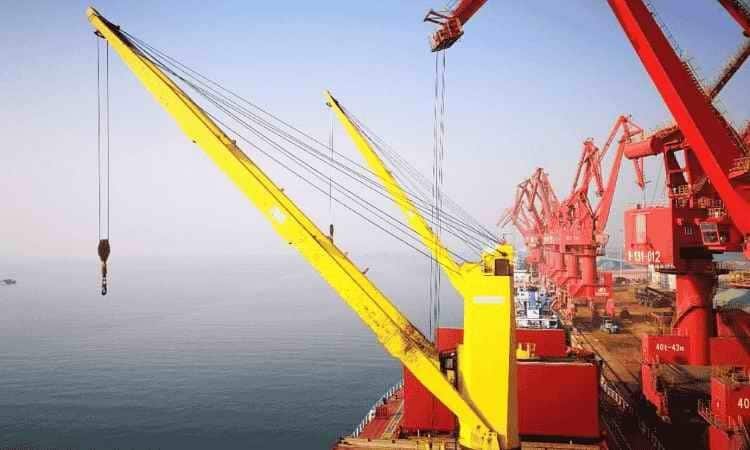

Port Environments

2.Recommended Wire Rope for Cranes in Ports

To thrive in port environments, Wire Rope for Cranes must excel in corrosion resistance, fatigue resistance, and strength. The following designs are proven performers in port applications:

  • 6x25Fi (Galvanized): This design’s filler wires distribute stress evenly, making it highly resistant to fatigue—critical for the high-cycle demands of container cranes. Galvanization provides essential corrosion protection against salt spray, while the compact structure resists crushing on multi-layer drums. It is the standard choice for STS cranes and other high-cycle port equipment.
  • 8x36WS (Galvanized): With eight strands and a hybrid wire pattern, 8x36WS offers excellent strength and flexibility, making it ideal for heavy-duty port applications like bulk cargo handling (coal, grain, ore). Its rotational stability reduces twisting when lifting unbalanced loads, while galvanization protects against corrosion.
  • 6×37 (Galvanized): This flexible design is well-suited for RTG cranes, which have complex reeving systems with frequent bending. The fine wires resist fatigue, and galvanization ensures longevity in salt air. It balances flexibility and strength, making it a versatile choice for yard operations.
  • 6×19 (Galvanized): For port cranes handling abrasive materials—such as scrap metal or aggregates—6×19’s thick outer wires provide superior wear resistance. Galvanization protects against corrosion, making it a cost-effective option for less demanding port applications.
  • Stainless Steel 6x25Fi: In extremely corrosive port environments—such as those with frequent saltwater immersion or high humidity—stainless steel 6x25Fi offers unmatched longevity. While more expensive, it eliminates the need for frequent replacements, reducing downtime and long-term costs.

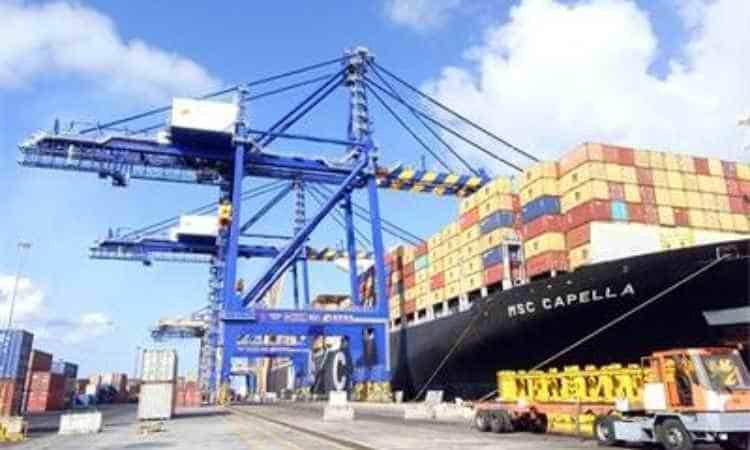

Wire Rope for Cranes in Port

3.Port Crane Applications & Wire Rope for Cranes

Different port cranes have unique demands, requiring tailored Wire Rope for Cranes solutions:

  • Ship-to-Shore (STS) Cranes: These massive cranes lift containers between ships and shore, performing hundreds of high-cycle lifts daily. They require ropes with exceptional fatigue resistance and corrosion protection. Galvanized 6x25Fi or 8x36WS ropes are the standard, with safety factors of 6:1 or higher to account for dynamic loads.
  • Rubber-Tired Gantry (RTG) Cranes: Used to stack containers in yards, RTGs have complex reeving systems with frequent bending. Flexible, fatigue-resistant ropes like galvanized 6×37 are ideal, as they can handle the tight bends and moderate loads (20-40 tons) typical in yard operations.
  • Mobile Harbor Cranes: These versatile cranes handle a range of cargo, from containers to breakbulk to heavy machinery. They require durable, all-purpose ropes that balance strength, flexibility, and corrosion resistance. Galvanized 6×19 or 6x25Fi ropes are common, with IWR cores for added strength in heavy lifts.
  • Bulk Handling Cranes: Used for loading/unloading coal, grain, or ore, these cranes face heavy abrasion from cargo. Wear-resistant ropes like 6×19 (galvanized) or 8x36WS (galvanized) are preferred, as their thick wires can withstand contact with abrasive materials.

4.Maintaining Port Wire Rope for Cranes

Even the best Wire Rope for Cranes will fail prematurely without proper maintenance in port environments. Key practices include:

  • Regular Cleaning: Rinse the rope with fresh water weekly to remove salt deposits and abrasive grit, which can trap moisture and accelerate corrosion. Use a soft brush to dislodge stubborn debris, and allow the rope to dry completely before lubricating.
  • Lubrication: Apply a water-resistant, corrosion-inhibiting lubricant every 2-4 weeks. The lubricant should penetrate between strands to protect internal wires from corrosion and reduce friction. Avoid over-lubrication, as excess grease can attract dirt and grit.
  • Daily Inspections: Check for signs of corrosion, broken wires, kinks, or diameter reduction. Pay special attention to areas in contact with sheaves and drums, as these are wear hotspots. Document inspections in a log to track the rope’s condition over time.
  • Termination Checks: Ensure end fittings (sockets, wedges, clips) are secure and free from corrosion. Loose or damaged terminations can cause the rope to slip or detach, leading to accidents.
  • Proactive Replacement: Replace the rope at the first sign of excessive damage—such as 10% diameter reduction, clusters of broken wires, or severe corrosion. Waiting for complete failure risks catastrophic accidents and costly downtime.

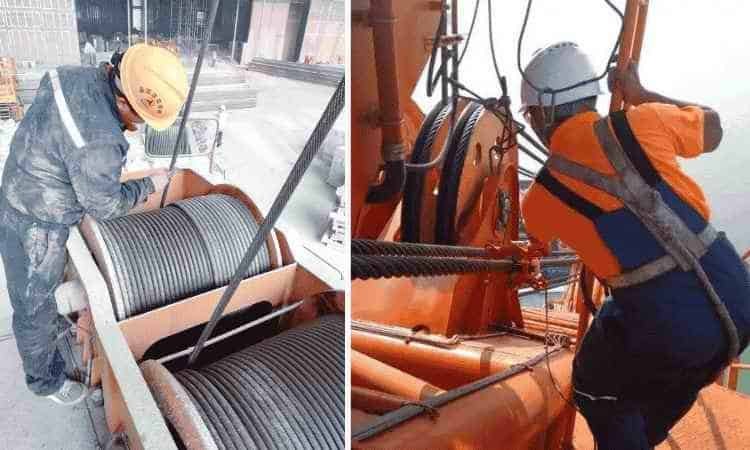

Maintaining Port Wire Rope for Cranes

IV. Wire Rope for Cranes: Offshore-Ready Designs

Offshore environments are among the most hostile on the planet, subjecting Wire Rope for Cranes to constant saltwater immersion, extreme winds, and violent dynamic loads. Ropes used offshore must be engineered to survive these conditions, with an emphasis on corrosion resistance, strength, and reliability.

1.Offshore Challenges for Wire Rope for Cranes

Offshore cranes—deployed on drilling rigs, production platforms, wind turbine installation vessels (WTIVs), and supply boats—face a unique set of challenges that set them apart from port or industrial cranes:

  • Constant Corrosion: Saltwater immersion and salt spray attack steel wires relentlessly, making corrosion the primary cause of rope failure offshore. Even a small scratch in a protective coating can lead to rapid rusting.
  • Extreme Dynamic Loads: Waves, wind, and vessel motion cause loads to swing violently, creating tension spikes that can double or triple the static load. Offshore ropes must withstand these dynamic forces without failure.
  • Rotation Risks: Lifting long, slender objects—such as drill pipes, risers, or wind turbine blades—can induce significant twisting. Without anti-rotation properties, ropes can kink or “birdcage” (strands flaring outward), rendering them unsafe.
  • Limited Access: Offshore installations are remote, making rope inspections and replacements logistically complex and expensive. Ropes must therefore be highly durable, minimizing the need for frequent maintenance.
  • High Safety Stakes: Offshore accidents can have devastating consequences, including loss of life, environmental damage, and massive financial losses. This makes reliability and safety the top priorities for offshore Wire Rope for Cranes.

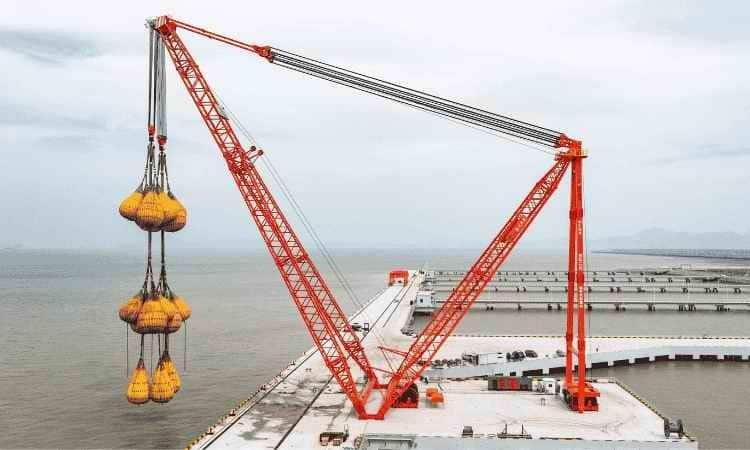

Offshore Challenges for Wire Rope for Cranes

2.Recommended Wire Rope for Cranes in Offshore Settings

Offshore Wire Rope for Cranes must excel in corrosion resistance, dynamic load handling, and rotation control. The following designs are proven in offshore applications:

  • 6x25Fi (Stainless Steel): This design combines fatigue resistance (from filler wires) with stainless steel’s corrosion immunity, making it ideal for general lifting on offshore platforms. Its compact structure reduces internal corrosion risk by minimizing spaces where water can trapped.
  • 8x19S (Stainless Steel or Galvanized): With eight strands and a Seale pattern, 8x19S offers excellent rotation resistance, making it perfect for lifting long, slender loads like drill pipes or wind turbine blades. Its thick outer wires resist abrasion, while stainless steel or heavy galvanization protects against corrosion.
  • 8×36 (IWRC, Galvanized or Stainless Steel): This high-strength design provides exceptional fatigue resistance, critical for frequent lifts on supply vessels or production platforms. The IWR core resists crushing on multi-layer drums, while corrosion protection ensures longevity.
  • 6×37 (Galvanized with Synthetic Core): For subsea lifts—such as deploying ROVs or lowering equipment to the seabed—6×37’s flexibility is essential. A synthetic core (polypropylene) resists water absorption and rot, while galvanization protects against corrosion.
  • Rotation-Resistant 34×7 (Stainless Steel): For lifting extremely long or heavy objects—such as wind turbine towers or large subsea structures—34×7’s anti-rotation properties prevent twisting. Stainless steel construction ensures corrosion resistance, making it a top choice for critical offshore lifts.
  • Plastic-Coated 7×19 (Stainless Steel): For auxiliary winches on offshore support vessels, plastic-coated 7×19 offers a complete barrier against saltwater. The coating also reduces abrasion, while the flexible design handles tight bends on small winch drums.

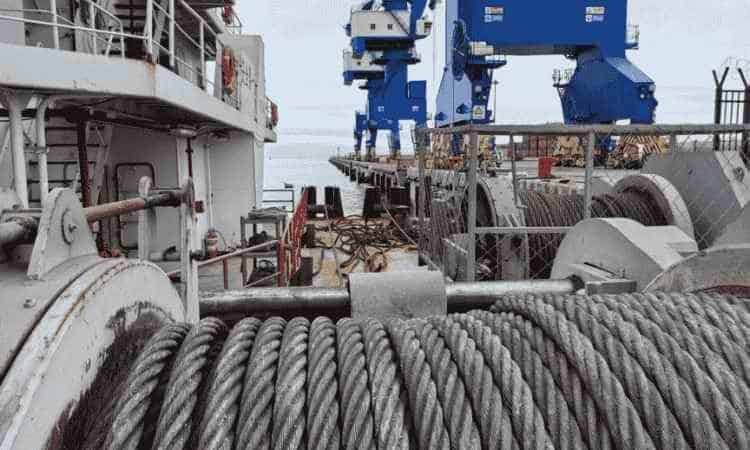

Wire Rope for Cranes in Offshore Setting

3.Offshore Applications for Wire Rope for Cranes

Different offshore applications demand specialized Wire Rope for Cranes solutions:

  • Drilling Rigs: Cranes on drilling rigs lift drill strings, casing, and BOPs (blowout preventers), requiring high-strength, rotation-resistant ropes. 8x19S stainless steel or 34×7 rotation-resistant ropes are standard, as they handle dynamic loads and prevent twisting.
  • Production Platforms: General lifting on platforms—such as moving equipment or supplies—requires ropes with excellent corrosion resistance and fatigue resistance. 6x25Fi stainless steel or 8×36 galvanized ropes are common choices.
  • Wind Turbine Installation Vessels (WTIVs): Lifting turbine components (blades, nacelles) demands rotation-resistant ropes with high strength. 8x19S stainless steel or 34×7 ropes are preferred for their anti-rotation properties and corrosion resistance.
  • Subsea Lifting: Deploying subsea equipment requires flexible, corrosion-resistant ropes. 6×37 galvanized with a synthetic core or plastic-coated stainless steel ropes are ideal for these applications.
  • Offshore Support Vessels (OSVs): Cranes on OSVs handle diverse cargo, requiring durable, versatile ropes. 8×36 galvanized or 6x25Fi stainless steel ropes balance strength, flexibility, and corrosion resistance.

4.Safety & Standards for Offshore Wire Rope for Cranes

Offshore Wire Rope for Cranes is governed by stringent standards to ensure safety and reliability:

  • ISO 4309: This global standard specifies inspection, maintenance, and replacement criteria for crane ropes, with strict guidelines for offshore applications. It mandates regular checks for broken wires, corrosion, and wear, with clear discard limits.
  • Classification Society Requirements: Organizations like DNV GL, ABS, and Lloyd’s Register set additional standards for offshore ropes, including material testing, performance verification, and certification. Ropes must meet these requirements to be used on classified vessels and installations.
  • Non-Destructive Testing (NDT): Offshore ropes require regular NDT—such as Magnetic Rope Testing (MRT) or Ultrasonic Testing (UT)—to detect internal damage invisible to the naked eye. MRT identifies internal broken wires, while UT measures loss of metallic cross-section due to corrosion or wear. These tests are typically performed monthly or quarterly, depending on usage.
  • Pre-Lubrication: Offshore ropes are factory-lubricated with specialized, water-resistant lubricants containing corrosion inhibitors. This lubrication must penetrate deep into the rope to protect internal wires, as re-lubrication offshore is difficult.
  • Replacement Schedules: Even with proper maintenance, offshore ropes have a limited service life due to the harsh environment. Most are replaced every 1-2 years, depending on inspection results, to ensure safety.

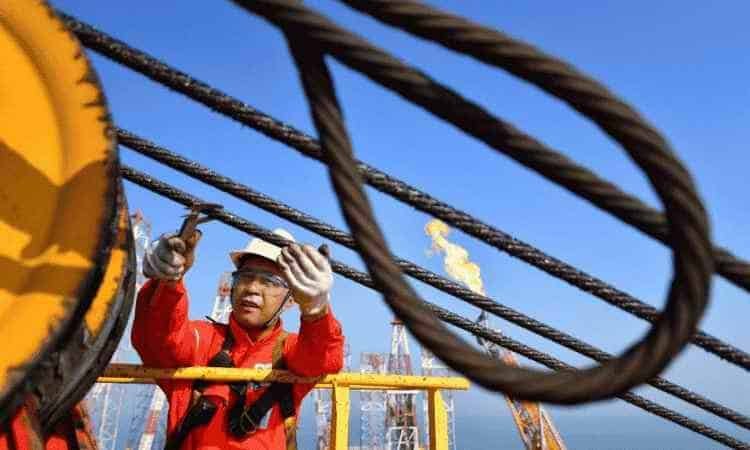

Offshore Wire Rope for Cranes 1 1

V. Wire Rope for Cranes: Industrial Crane Solutions

Industrial cranes—found in factories, warehouses, steel mills, and power plants—operate in diverse environments with varying loads, cycles, and hazards. Selecting the right Wire Rope for Cranes here requires matching the rope’s properties to the specific demands of the industrial setting.

1.Industrial Environments: Demands on Wire Rope for Cranes

Industrial environments present a range of challenges for Wire Rope for Cranes, including:

  • Variable Loads: Industrial cranes handle everything from small parts (pounds) to massive machinery (hundreds of tons). Ropes must be sized for the maximum load while remaining flexible enough for lighter lifts.
  • High Duty Cycles: Many industrial cranes—such as those on assembly lines or in steel service centers—perform hundreds of lifts per shift. This constant bending and tension induce fatigue, making fatigue resistance a key trait.
  • Environmental Hazards: Industrial atmospheres can contain abrasive dust (grinding, sandblasting), oils and greases (automotive plants), chemicals (refineries), or extreme heat (foundries). Each hazard demands specific rope properties.
  • Space Constraints: Overhead bridge cranes and jib cranes in factories often operate in tight spaces, requiring ropes that can bend over small sheaves without kinking.

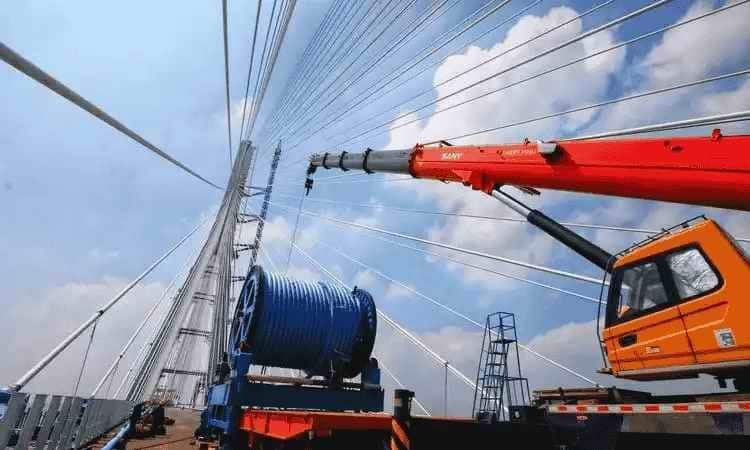

Wire Rope for Cranes in Industrial Setting

2.Recommended Wire Rope for Cranes in Industrial Settings

Industrial Wire Rope for Cranes must be versatile, with designs tailored to specific hazards and load requirements:

  • 6×9 (FC): A lightweight, cost-effective option for light-duty industrial cranes—such as small jib cranes in workshops or warehouses. Its fiber core provides flexibility for simple reeving systems, making it ideal for loads under 5 tons.
  • 6x25Fi (IWRC or FC): This design’s fatigue resistance makes it perfect for high-cycle industrial applications, such as automotive assembly lines or material handling in distribution centers. It balances flexibility and strength, handling loads up to 30 tons.
  • 6×37 (IWRC): A workhorse for medium to heavy industrial lifts, 6×37 offers excellent flexibility for complex reeving systems. It is widely used in overhead bridge cranes, handling loads from 10 to 70 tons with frequent bending cycles.
  • 7×19 (Bright or Galvanized): For precision lifting—such as positioning machinery in electronics factories or pharmaceutical clean rooms—7×19’s flexibility is unmatched. It bends easily over small sheaves, providing smooth, controlled lifts.
  • 8×36 (IWRC): This high-strength design delivers exceptional fatigue resistance and load capacity, making it ideal for heavy industrial cranes in steel mills or forging plants. It handles loads up to 100+ tons with frequent cycles.
  • 6×19 (IWRC): In high-heat industrial environments—such as foundries or near furnaces—6×19 IWRC’s steel core resists melting, while thick wires withstand abrasion from hot metal or slag. It is the standard choice for ladle cranes and other high-temperature applications.
  • 8x19S (Galvanized): For industrial cranes in dusty or abrasive environments—such as mining equipment factories or cement plants—8x19S’s thick outer wires resist wear. Its rotational stability reduces twisting when lifting unbalanced loads.

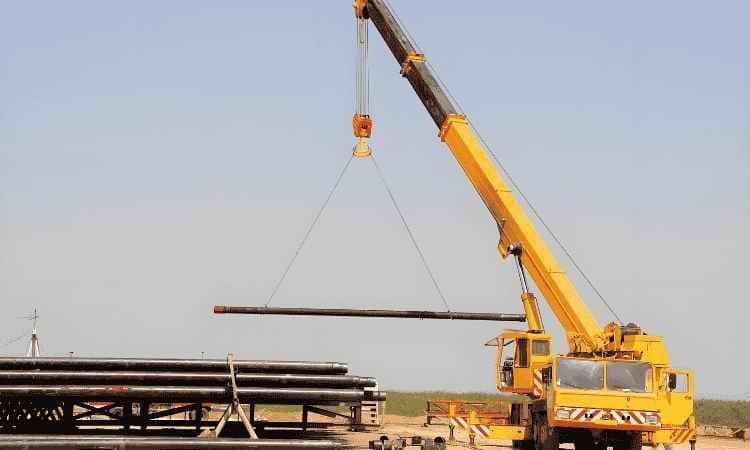

Industrial cranes

3.Industrial Applications for Wire Rope for Cranes

Different industrial cranes require specific Wire Rope for Cranes designs to optimize performance:

  • Overhead Bridge Cranes: The backbone of factory lifting, these cranes need versatile ropes. 6×37 IWRC is common for medium/heavy loads (10-70 tons), while 6x25Fi suits high-cycle applications like automotive plants.
  • Jib Cranes: Mounted on walls or columns, jib cranes typically have simple reeving with a single sheave. 7×19 (for precision) or 6×9 FC (for light loads) are ideal, depending on duty cycle.
  • Gantry Cranes (Industrial Yards): Used for outdoor material storage or loading, these cranes face weather exposure. 6×19 IWRC (galvanized for corrosion resistance) is a durable choice, handling heavy loads with abrasive contact.
  • Foundry Cranes: Lifting molten metal or hot ingots demands high-heat resistance. 6×19 IWRC—with a steel core and thick wires—resists heat and abrasion, while high-temperature lubricants protect against friction damage.
  • Steel Mill Cranes: Handling heavy, hot steel coils or slabs requires high strength and fatigue resistance. 8×36 IWRC is preferred, as it handles loads up to 100+ tons with frequent cycles, while resisting wear from rough surfaces.

4.Maintaining Industrial Wire Rope for Cranes

Proper maintenance extends the life of industrial Wire Rope for Cranes and ensures safety:

  • Cleaning & Lubrication: Industrial dust, oil, and grit accelerate wear and corrosion. Clean ropes weekly with brushes or compressed air to remove contaminants. Lubricate with a grease suited to the environment—adhesive grease for dusty areas, water-resistant grease for humid spaces, and high-temperature grease for foundries. Frequency depends on usage, with high-cycle cranes requiring lubrication every 1-2 weeks.
  • Fatigue Monitoring: Inspect for broken wires weekly, focusing on areas that bend over sheaves—fatigue cracks often appear here first. Track the number of cycles (lifts) to predict when fatigue might become a risk.
  • Diameter Checks: Use calipers to measure rope diameter monthly. A 10% reduction from the original diameter indicates significant wear and requires replacement.
  • Core Inspection: For fiber core ropes, check for signs of rot or melting (in high-heat areas). Replace ropes with damaged cores immediately, as they lose strength and elasticity.
  • Termination Maintenance: Ensure end fittings are tight and free from cracks or corrosion. Loose terminations are a common cause of industrial crane accidents, so regular checks are critical.

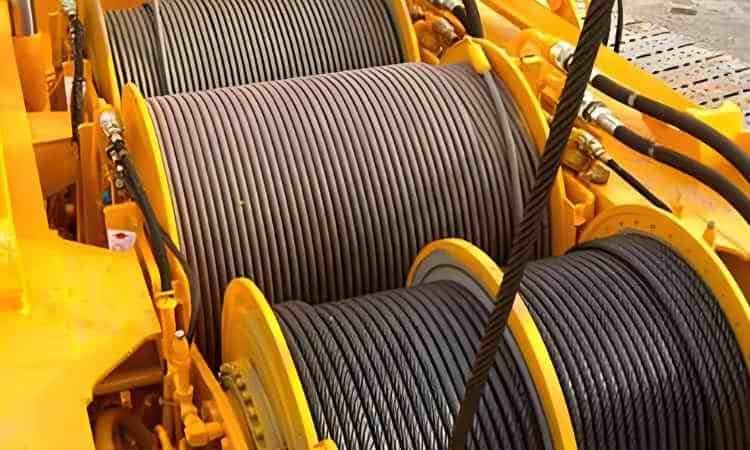

Maintaining Industrial Wire Rope for Cranes

VI. Maintenance & Inspection: Maximizing Life for Wire Rope for Cranes

Even the highest quality Wire Rope for Cranes will fail prematurely without proper maintenance. A proactive inspection and maintenance program can extend rope life by 2-3 times, reducing costs and improving safety.

1.Inspection Schedules for Wire Rope for Cranes

A structured inspection schedule is essential for identifying issues before they lead to failure:

  • Daily Visual Checks (Operator): Before each shift, operators should inspect the rope for obvious defects: broken wires, kinks, corrosion, or loose terminations. Focus on critical areas: sections in contact with sheaves/drums, termination points, and any areas exposed to damage (e.g., near load hooks).
  • Weekly Detailed Inspections (Maintenance Staff): Trained technicians should perform more thorough checks, including diameter measurements at multiple points along the rope. Look for signs of wear (flattened wires), peening (mushroomed wire ends from impact), or lubricant loss. Document findings in a log to track trends.
  • Monthly Advanced Inspections: For critical cranes—such as those in offshore or high-risk industrial settings—use specialized tools like MRT to detect internal broken wires or corrosion. Inspect end fittings with magnetic particle inspection (MPI) to check for cracks.
  • Annual Third-Party Inspections: Independent inspectors verify compliance with standards like ISO 4309 or OSHA, providing an unbiased assessment of rope condition. This is often required for insurance or regulatory compliance.

2.Key Inspection Points for Wire Rope for Cranes

Inspections should focus on the following failure modes:

  • Broken Wires: Count visible broken wires in one “lay length” (the distance one strand takes to spiral around the core). Replace ropes when counts exceed standards (e.g., 12 broken wires in one lay for 6×19, 22 for 6×37). Clusters of broken wires or breaks in strand valleys are particularly dangerous.
  • Corrosion: Light surface rust can be cleaned and re-lubricated, but pitting or heavy rust weakens the rope—replace immediately. Pay special attention to hidden areas, such as under terminations or between strands.
  • Wear: Measure diameter at multiple points. A 10% reduction indicates significant loss of strength. Uneven wear may signal misaligned sheaves or drums, which should be corrected to prevent further damage.
  • Deformation: Kinks, birdcaging, or crushing drastically reduce strength. Even minor kinks can weaken a rope by 30% or more—replace deformed ropes immediately.
  • Termination Issues: Check sockets, wedges, or clips for looseness, cracks, or corrosion. Termination failure is a leading cause of crane accidents, so any damage requires immediate repair or replacement.

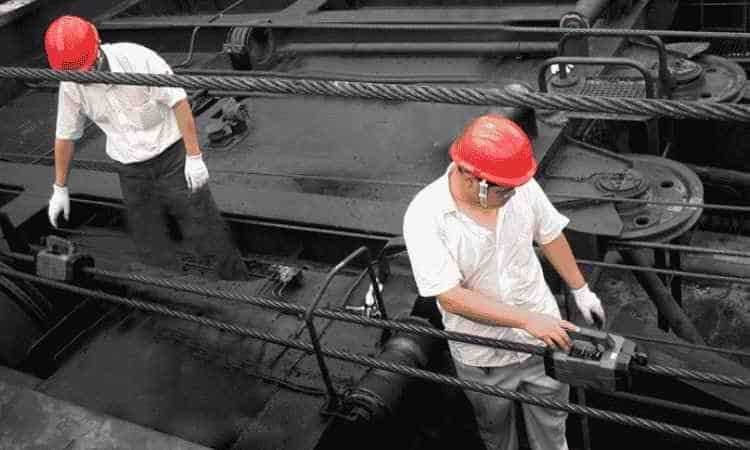

Key Inspection Points for Wire Rope for Cranes

3.Lubrication & Storage for Wire Rope for Cranes

Proper lubrication and storage are critical for maintaining Wire Rope for Cranes:

  • Lubrication: Use a lubricant designed for wire ropes, with properties matched to the environment. It should penetrate between strands to reduce internal friction and protect against corrosion. Apply lubricant after cleaning, ensuring even coverage. Avoid over-lubrication, which attracts dirt.
  • Storage: Store unused ropes in a cool, dry area, away from direct sunlight and corrosive fumes. Coil large ropes on racks to prevent kinking; keep small coils in sealed containers. For long-term storage, clean and lubricate ropes, and uncoil periodically to prevent permanent bends.

4.Replacement Guidelines for Wire Rope for Cranes

Replace Wire Rope for Cranes immediately when:

  • Broken wire counts exceed standard limits.
  • Diameter is reduced by 10% or more.
  • Corrosion is severe (pitting, extensive rust).
  • Deformation (kinks, birdcaging) is present.
  • Heat damage (discoloration, melted core) is visible.
  • The rope has reached its recommended service life (even without visible defects).

Always replace with a rope matching the crane manufacturer’s specifications for diameter, construction, and core type. Using an improperly sized rope can damage sheaves or drums, leading to further issues.

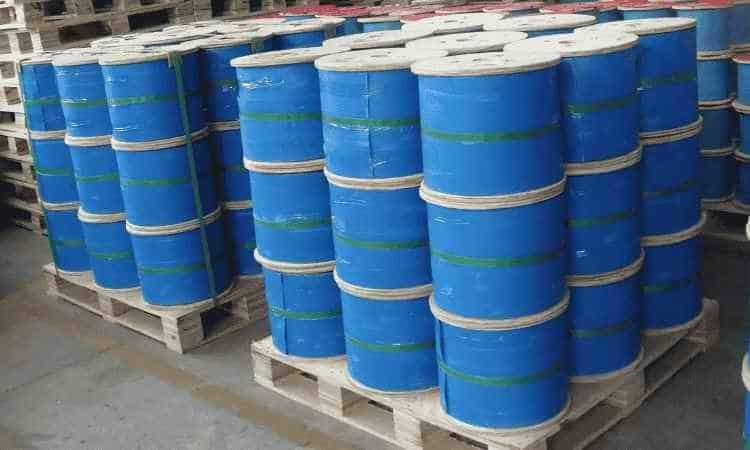

Storage of wire rope

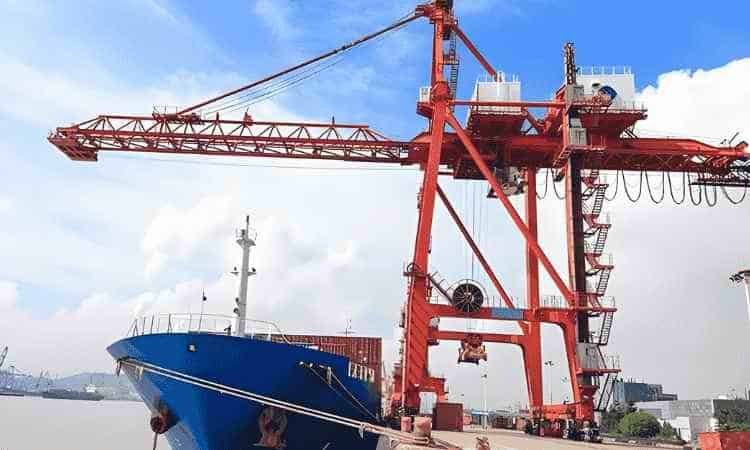

VII. Conclusion: Investing in the Right Wire Rope for Cranes

Wire rope stands as the indispensable lifeline of crane operations, serving as the critical interface where mechanical force translates into precise, reliable lifting. Its role is far too pivotal to be compromised by hasty decisions or cost-driven shortcuts—every strand, every construction detail, directly impacts operational integrity. Selecting the optimal wire rope demands a comprehensive analysis of multifaceted factors: from the exacting load specifications of heavy-lift projects to the corrosive challenges of marine environments, the abrasive conditions of construction sites, or the high-cycle demands of industrial facilities.

A meticulously chosen wire rope transcends mere durability; it embodies a strategic asset that fortifies operational resilience. It instills unwavering confidence, ensuring that each lift—whether hoisting massive infrastructure components or delicate machinery—is underpinned by a component engineered to withstand the unique stresses of its environment. This precision in selection directly translates to tangible operational benefits: reduced downtime by minimizing unplanned replacements, lowered lifecycle costs through extended service intervals, and—above all—fortified safety protocols that mitigate the risk of catastrophic failures. In high-stakes sectors such as offshore energy, where failure could mean environmental disaster or loss of life, or in manufacturing, where production halts equate to significant financial losses, the right wire rope becomes an irreplaceable safeguard.

Beyond initial selection, the commitment to excellence extends to rigorous maintenance regimes—regular inspections, lubrication, and damage assessments—that preserve rope integrity over time. By aligning rope specifications with operational demands, prioritizing quality materials and manufacturing standards, and adhering to proactive maintenance schedules, organizations ensure their cranes operate at peak efficiency, day after day, under the most demanding conditions.

In essence, investing in the right wire rope is not merely a procurement decision; it is a testament to an organization’s dedication to operational excellence. It reflects a forward-thinking approach that balances short-term investments against long-term gains, recognizing that superior performance, enhanced safety, and sustained productivity are the hallmarks of enduring success in crane-dependent industries. In the complex ecosystem of heavy machinery, the wire rope remains the silent workhorse—its quality a direct reflection of an operation’s commitment to excellence.

Investing in the Right Wire Rope for Cranes

VIII. Find Your Perfect Wire Rope for Cranes Today

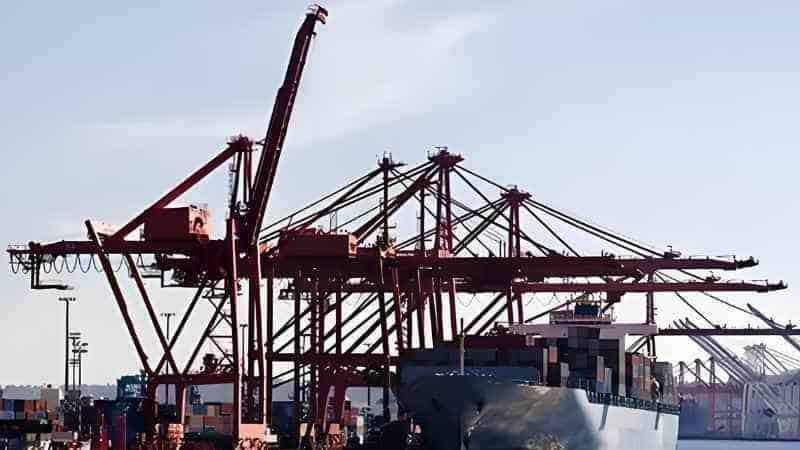

In the dynamic world of lifting operations, the right wire rope isn’t just a component—it’s the backbone of safety, efficiency, and reliability. Whether your operations take place in the salt-laden air of a bustling port, where corrosion can eat away at subpar materials, or in the challenging offshore environments where rotation during lifts can compromise stability, we have a wire rope solution tailored to your exact needs. For industrial settings where high-cycle lifts are the norm, our ropes are engineered to withstand the relentless stress, ensuring long-term performance that minimizes downtime and maximizes productivity.

Our comprehensive range of premium crane wire ropes is built on decades of industry expertise and cutting-edge manufacturing techniques. Each rope is crafted with meticulous attention to detail, using high-quality materials that meet or exceed global safety standards. For port applications, our corrosion-resistant ropes feature specialized coatings and alloy compositions that form a robust barrier against moisture, salt, and other corrosive elements, extending their service life even in the harshest conditions. Offshore operations benefit from our rotation-resistant designs, which are engineered to reduce twist and spin during lifting, providing precise control and enhancing safety when handling heavy loads over water.

But we don’t just offer off-the-shelf products. Our team of seasoned experts takes a personalized approach to every client. They will dive deep into your crane’s specifications, from its lifting capacity and boom length to its operational speed, to understand the unique demands it faces. We also analyze your load profiles—whether you’re lifting constant heavy weights, irregularly shaped objects, or delicate cargo—to ensure the recommended rope can handle the specific stressors. Additionally, we assess the environment in which the crane operates, considering factors like temperature extremes, exposure to chemicals, or dusty conditions, to select a rope that thrives in that setting.

Find Your Perfect Wire Rope for Cranes

By combining our extensive product range with this tailored analysis, we guarantee that the wire rope we recommend will not only meet but exceed your expectations. It will enhance the safety of your operations, reduce the risk of unexpected failures, and deliver the durability needed to keep your projects on track. Don’t settle for a one-size-fits-all solution when your operations deserve the perfect fit. Let us help you find the ideal wire rope for your crane today and experience the difference that quality and expertise can make.

Request A free quote

We’d like to work with you.

Send us a message if you have any questions or request a quote. Our experts will give you a reply within 24 hours and help you select the right products you want.

Picture of Ann Hu

Ann Hu

Hi, I'm the author of this post, and I have been in this field for more than 8 years. If you want to custom Lifting & Rigging products, Trucking & Transportation products, Fall Protection Equipment, Hardware Accessories, or related products, feel free to ask me any questions.
Facebook
Twitter
LinkedIn

Leave a Reply

Your email address will not be published. Required fields are marked *

two × five =

Get a Fast Quote!

We will contact you at our work time, please pay attention to the email with the suffix “@sichwirerope.com”

Get a Fast Quote!

We will contact you at our work time, please pay attention to the email with the suffix “@sichwirerope.com”

Get a Fast Quote!

We will contact you at our work time, please pay attention to the email with the suffix “@sichwirerope.com”

Get a Fast Quote!

We will contact you at our work time, please pay attention to the email with the suffix “@sichwirerope.com”

Get a Fast Quote!

We will contact you at our work time, please pay attention to the email with the suffix “@sichwirerope.com”

Get a Fast Quote!

We will contact you at our work time, please pay attention to the email with the suffix “@sichwirerope.com”

Get a Fast Quote!

We will contact you at our work time, please pay attention to the email with the suffix “@sichwirerope.com”
